OPEN CNC (DNC Operation Management Package) Operators manual Page 100

Operators manual
6. CUSTOMIZATION B-63214EN/01
- 84 -
Explanation
The following types of message language customization can be performed:
l Installing new message languages
l Changing the order in which message languages are listed
l Uninstalling message languages
For details, see the description below.
6.4.1 Installing message languages
This section describes how to install message languages in DNC Operation
Management Package.
Once two or more message languages have been installed in DNC Operation
Management Package, switching between these languages is enabled.
Procedure

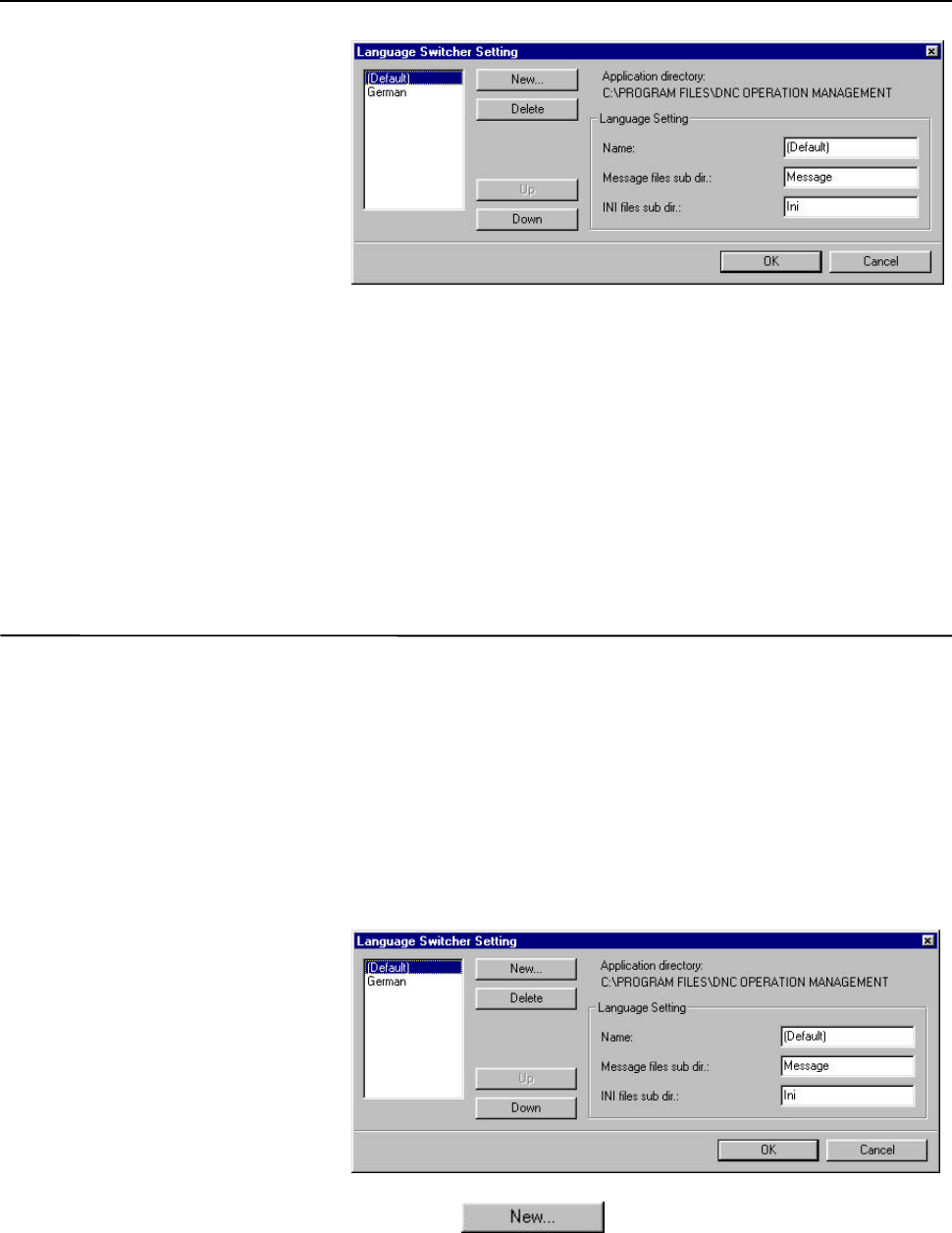

1. If the [Language Switcher Setting] screen is currently not displayed,
follow the procedure described in Section 6.4, "Customizing Message
Languages" to display the [Language Switcher Setting] screen.
2. Click the button.
The [New Language Name] screen appears.
Previous page
Next page
