OPEN CNC (DNC Operation Management Package) Operators manual Page 30

Operators manual
2. BASIC KNOWLEDGE B-63214EN/01
- 14 -
NOTE
When Basic Operation Package 1 (A02B-0207-K750#ZZ07) version
1.4 or later is used, and the function for integration with DNC
Operation Management Package is enabled, Basic Operation
Package 1 is started instead of DNC Operation Management
Package. (See Section 1.4, "Integration with Basic Operation
Package 1.")

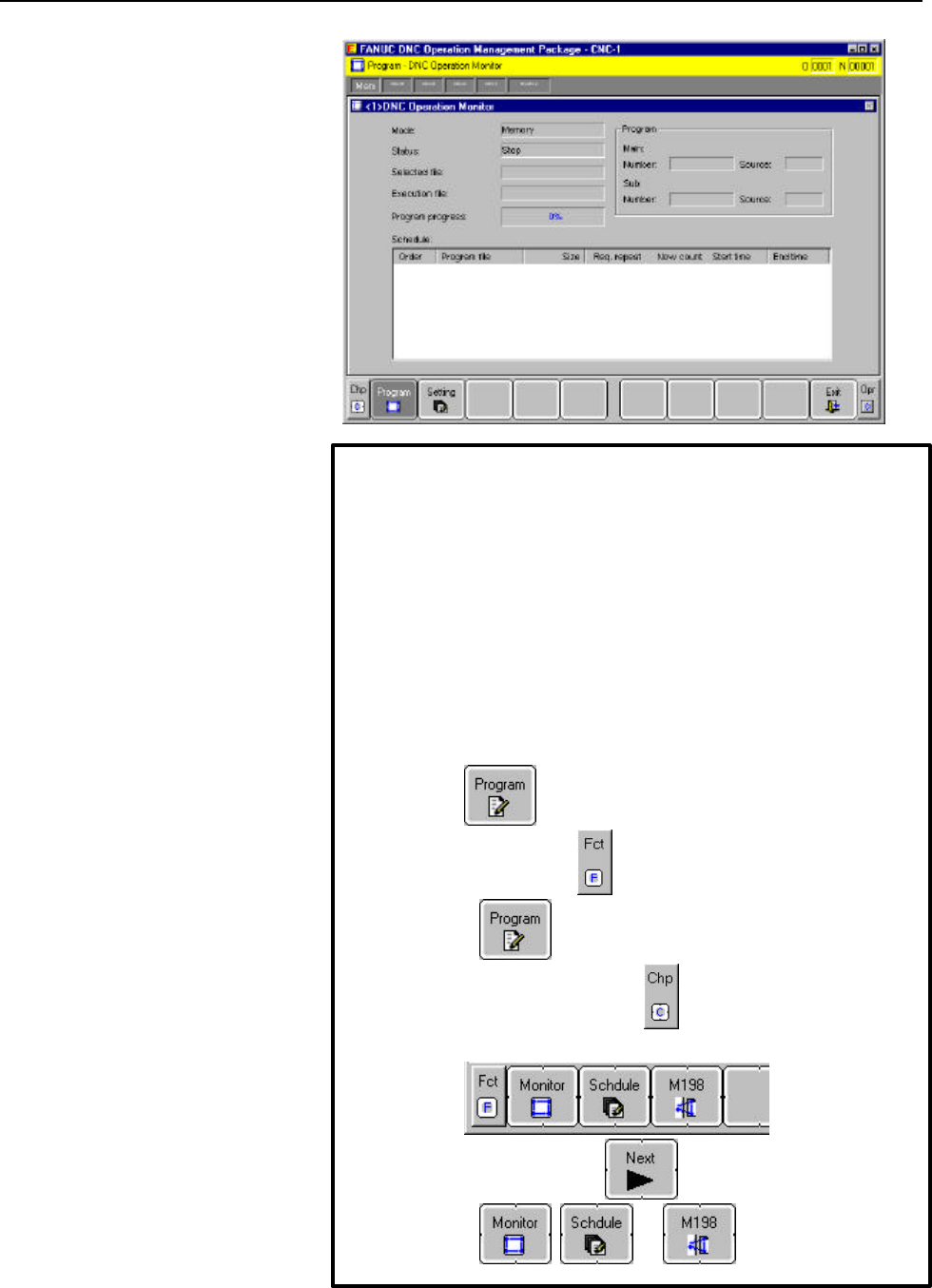

The DNC Operation Management Package screen can be displayed
by using the following procedure:
Procedure
1. If the soft key is currently not displayed, press the
function selection key .
2. Press the soft key.
3. Press the chapter selection key .
4. If the soft keys are not
currently displayed, press .
5. Press the , , or soft key.
