2.5 Displaying Version Information
This section describes how to display the version information for DNC
Operation Management Package, for maintenance and other purposes.
Procedure
1. Right-click the soft key area. Alternatively, press the [Application]
key on the keyboard (such as the Microsoft Natural keyboard or 109
keyboard). Alternatively, press [Shift]+[F10].

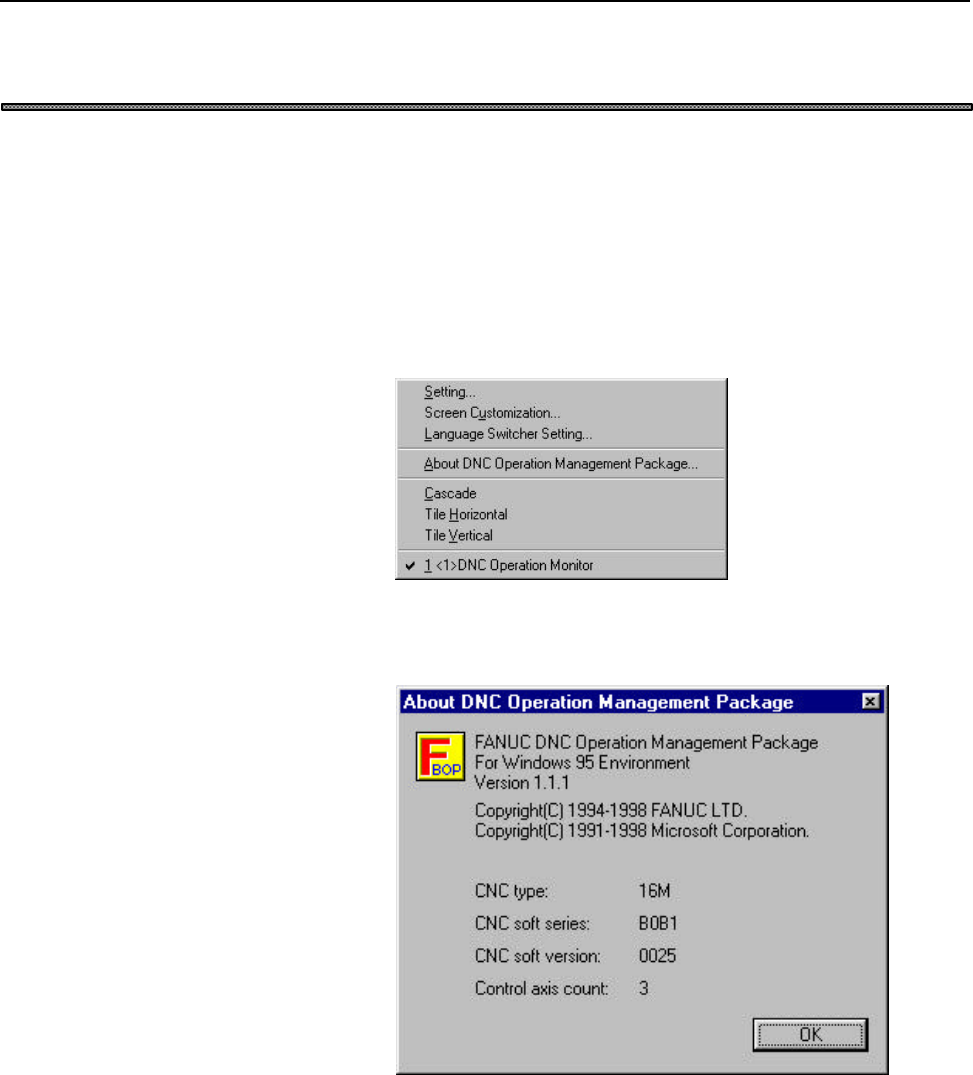

The following pop-up menu appears.
2. Choose [About DNC Operation Management Package...].
The [About DNC Operation Management Package] screen appears.
The following information is displayed:
• Version information for DNC Operation Management Package
• CNC type
• CNC software series
• CNC software version
• Number of controlled axes
