OPEN CNC (DNC Operation Management Package) Operators manual Page 50

Operators manual
3. SCHEDULED OPERATION B-63214EN/01
- 34 -
3.3.2 Opening an existing schedule file
This section describes how to open an existing schedule file.
Procedure

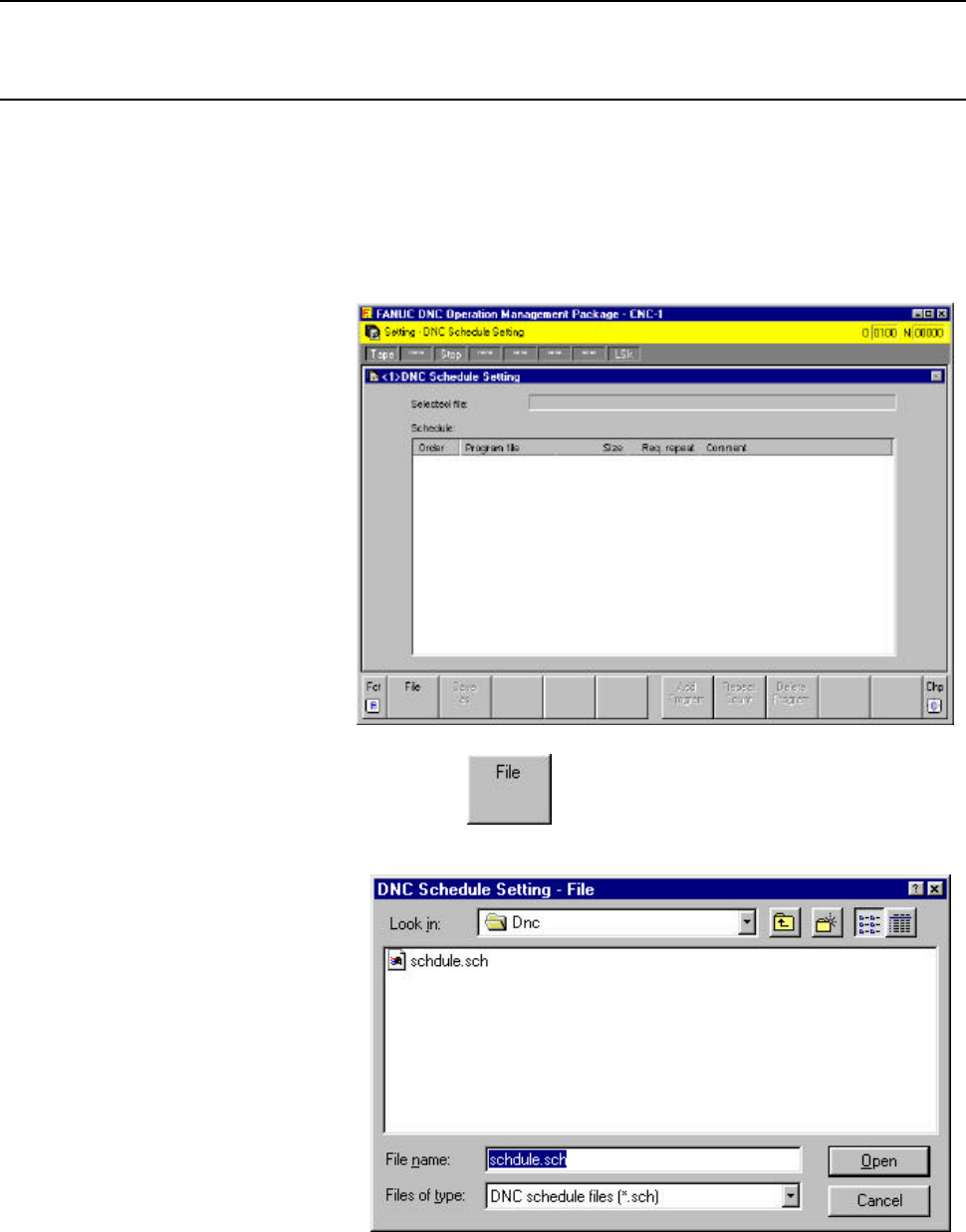

1. If the [DNC Schedule Setting] screen is currently not displayed, follow
the procedure described in Section 3.3, "Setting Scheduled Operation"
to display the [DNC Schedule Setting] screen.
2. Press the soft key.
The [DNC Schedule Setting - File] screen appears.
3. Select a schedule file from "Look in:", then click the <Open> button.
4. Edit the schedule file as necessary. For an explanation of how to edit
files, see Section 3.3.1, "Creating a new schedule file."
