OPEN CNC (DNC Operation Management Package) Operators manual Page 71

Operators manual
B-63214EN/01 6. CUSTOMIZATION
- 55 -

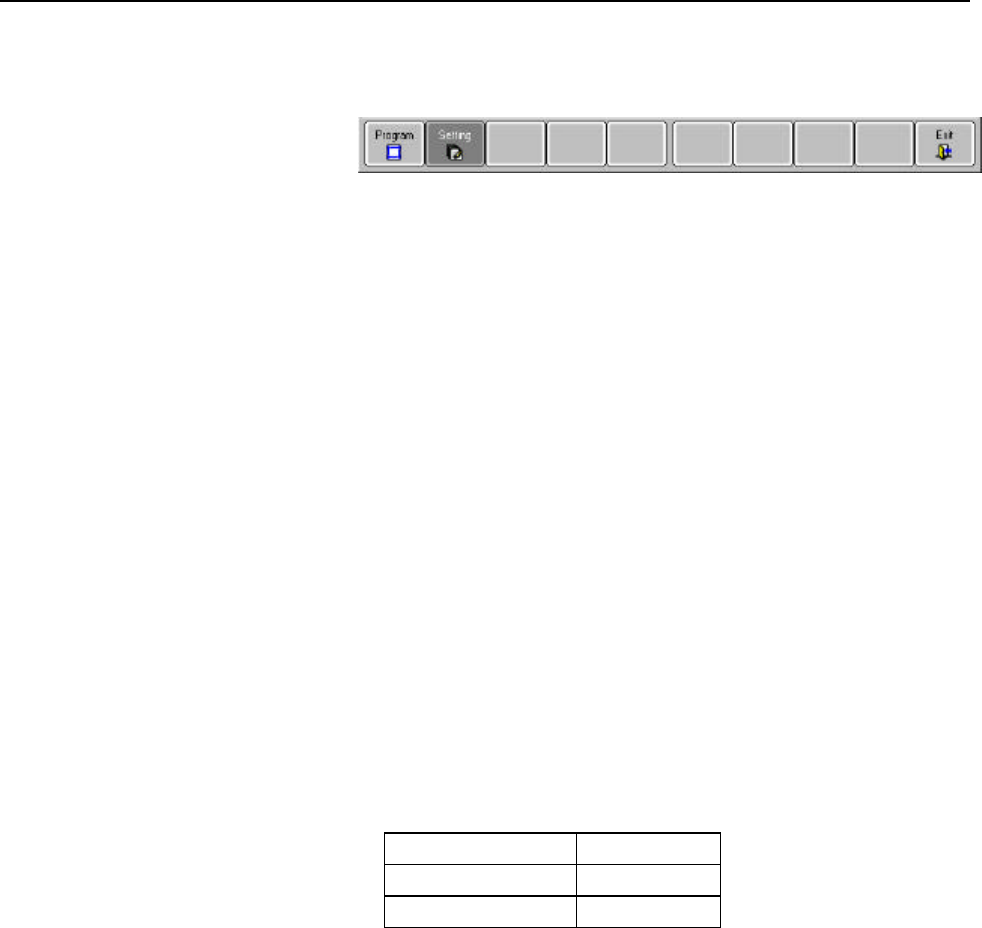

l The soft key count is 10.
Selecting this item sets the soft key count to 10.
Use the keyboard function keys to switch between the function, chapter,
and operation soft keys.
Standard switching mode is as follows:
• Function soft keys
Pressing the [F12] key switches to the chapter soft keys.
• Chapter soft keys
Pressing the [F11] key switches to the function soft keys.
Pressing the [F12] key switches to the operation soft keys.
• Operation soft keys
Pressing the [F11] key switches to the chapter soft keys.
l Proceed to next state of the soft key to select.
Selecting this item causes, for example, the operation soft keys to appear
automatically when a chapter soft key is selected.
l F11 = Shift+F1, F12 = Shift+F2
Selecting this item defines the following key combinations:
Key combination Equivalent
[Shift] + [F1] [F11]
[Shift] + [F2] [F12]
l Return key to space key on button.
Selecting this item enables the return key to act as the space key when the
buttons are used.
l Set ON/OFF by key 1/0 on check box.
Selecting this item enables a check box to be selected or cleared using
the [1] or [0] key, respectively. Note that this function is disabled on the
[Setting] screen.
