OPEN CNC (DNC Operation Management Package) Operators manual Page 77

Operators manual
B-63214EN/01 6. CUSTOMIZATION
- 61 -
6.2 Customizing Screens
This section explains screen customization, including the creation of custom
chapters.
The subsequent screen customization descriptions apply to a system in which
DNC Operation Management Package is integrated with Basic Operation
Package 1. Screen customization for a system in which only DNC Operation
Management Package is used is basically the same as that described below.
Procedure
1. Start DNC Operation Management Package or Basic Operation
Package 1.
2. Right-click the soft key area. Alternatively, press the [Application]
key on the keyboard (such as the Microsoft Natural keyboard or 109
keyboard). Alternatively, press [Shift]+[F10].

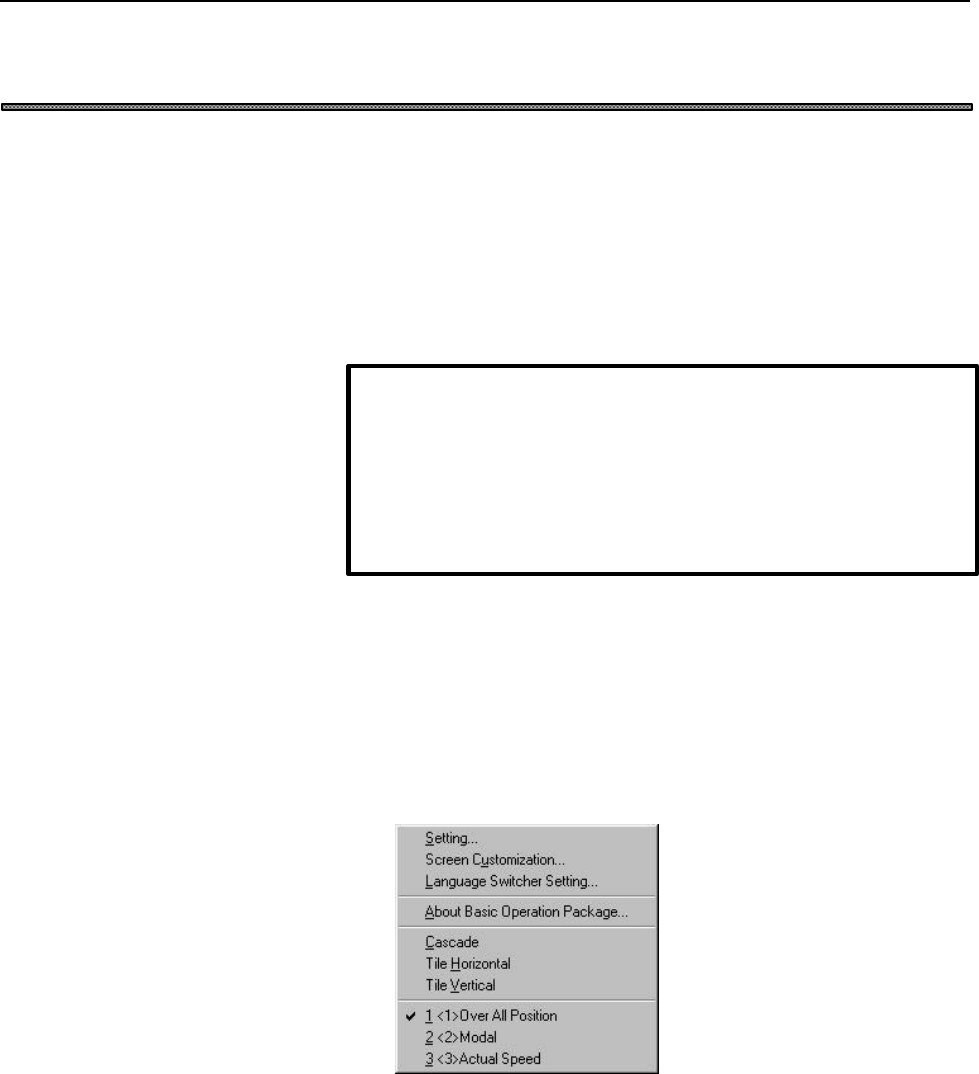

The following pop-up menu appears.
3. Choose [Screen Customization...].
The [Screen Customization] screen appears.
NOTE
Customization results are stored in the setting file. It is recommended
that a backup of the setting file be made to guard against possible
data loss.
For details of the setting file, see Appendix 1, "BACKING UP THE
SETTING FILE."
