OPEN CNC (DNC Operation Management Package) Operators manual Page 55

Operators manual
B-63214EN/01 4. SUBPROGRAM CALL OPERATION
- 39 -
4.3 Setting Subprogram Call Operation
This section describes how to set subprogram call operation.

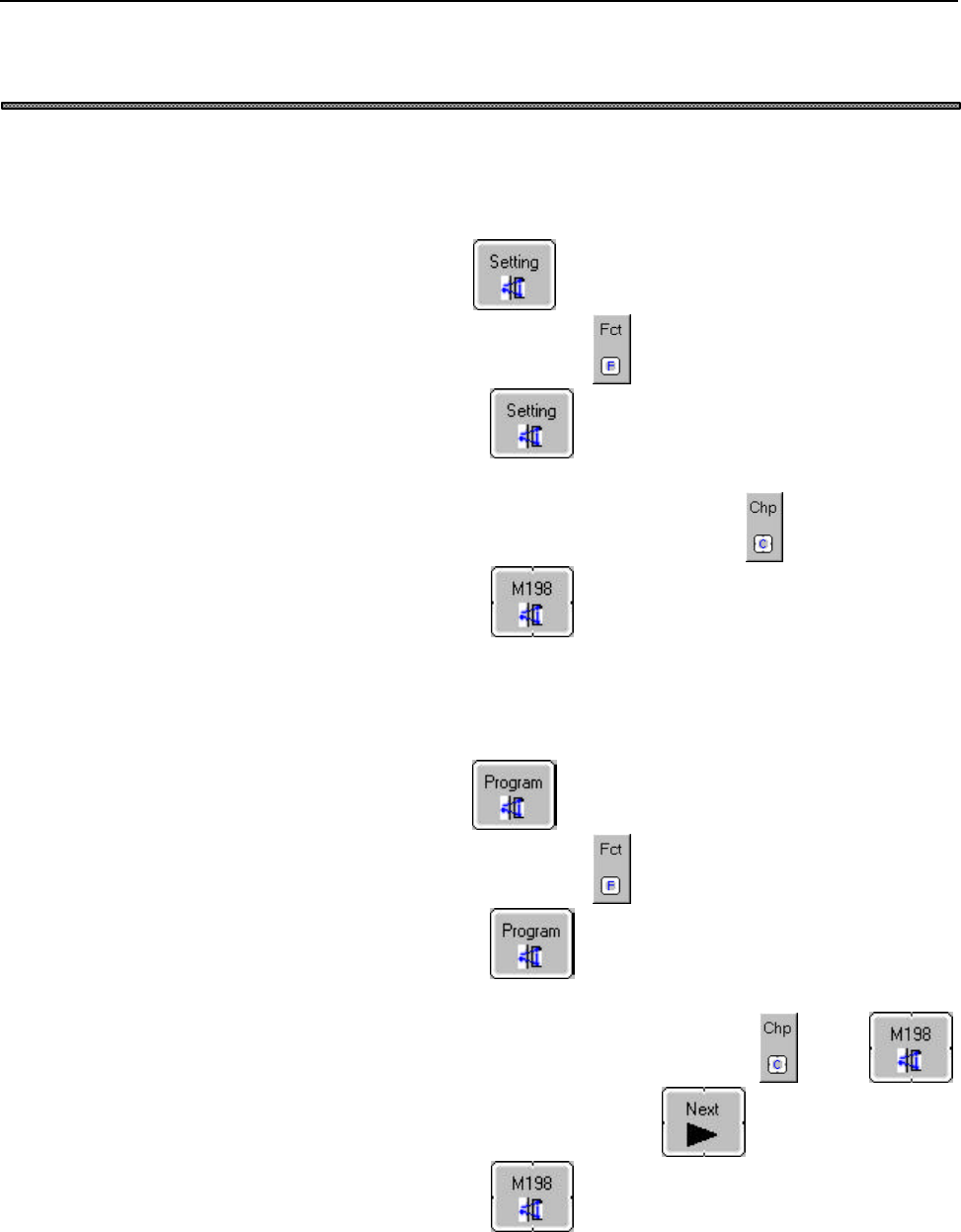

Procedure
l When Basic Operation Package 1 is not used
1. If the soft key is not currently displayed, press the
function selection key .
2. Press the soft key.
3. If the [DNC Sub Program Call Setting] screen is not currently
displayed, press the chapter selection key .
4. Press the soft key.
The [DNC Sub Program Call Setting] screen appears.
l When DNC Operation Management Package is integrated with Basic
Operation Package 1
1. If the soft key is not currently displayed, press the
function selection key .
2. Press the soft key.
3. If the [DNC Sub Program Call Setting] screen is not currently
displayed, press the chapter selection key . If the
soft key does not appear, press .
4. Press the soft key.
The [DNC Sub Program Call Setting] screen appears.
