OPEN CNC (DNC Operation Management Package) Operators manual Page 45

Operators manual
B-63214EN/01 3. SCHEDULED OPERATION
- 29 -
3.3 Setting Scheduled Operation
This section describes how to set scheduled operation.

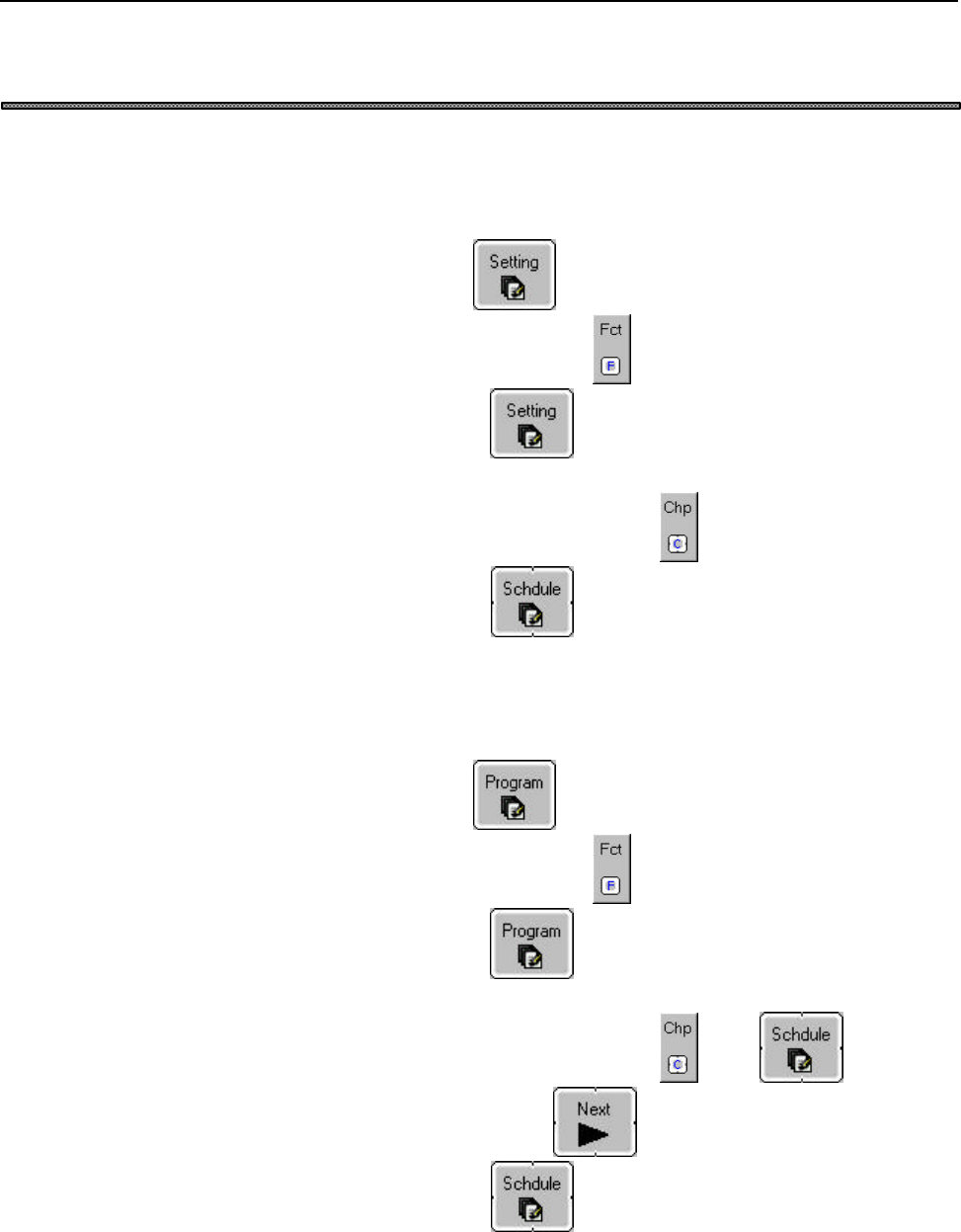

Procedure
l When Basic Operation Package 1 is not used
1. If the soft key is not currently displayed, press the
function selection key .
2. Press the soft key.
3. If the [DNC Schedule Setting] screen is currently not displayed,
press the chapter selection key .
4. Press the soft key.
The [DNC Schedule Setting] screen appears.
l When DNC Operation Management Package is integrated with Basic
Operation Package 1
1. If the soft key is not currently displayed, press the
function selection key .
2. Press the soft key.
3. If the [DNC Schedule Setting] screen is not currently displayed,
press the chapter selection key . If the soft key does
not appear, press .
4. Press the soft key.
The [DNC Schedule Setting] screen appears.
