OPEN CNC (DNC Operation Management Package) Operators manual Page 39

Operators manual
B-63214EN/01 2. BASIC KNOWLEDGE
- 23 -

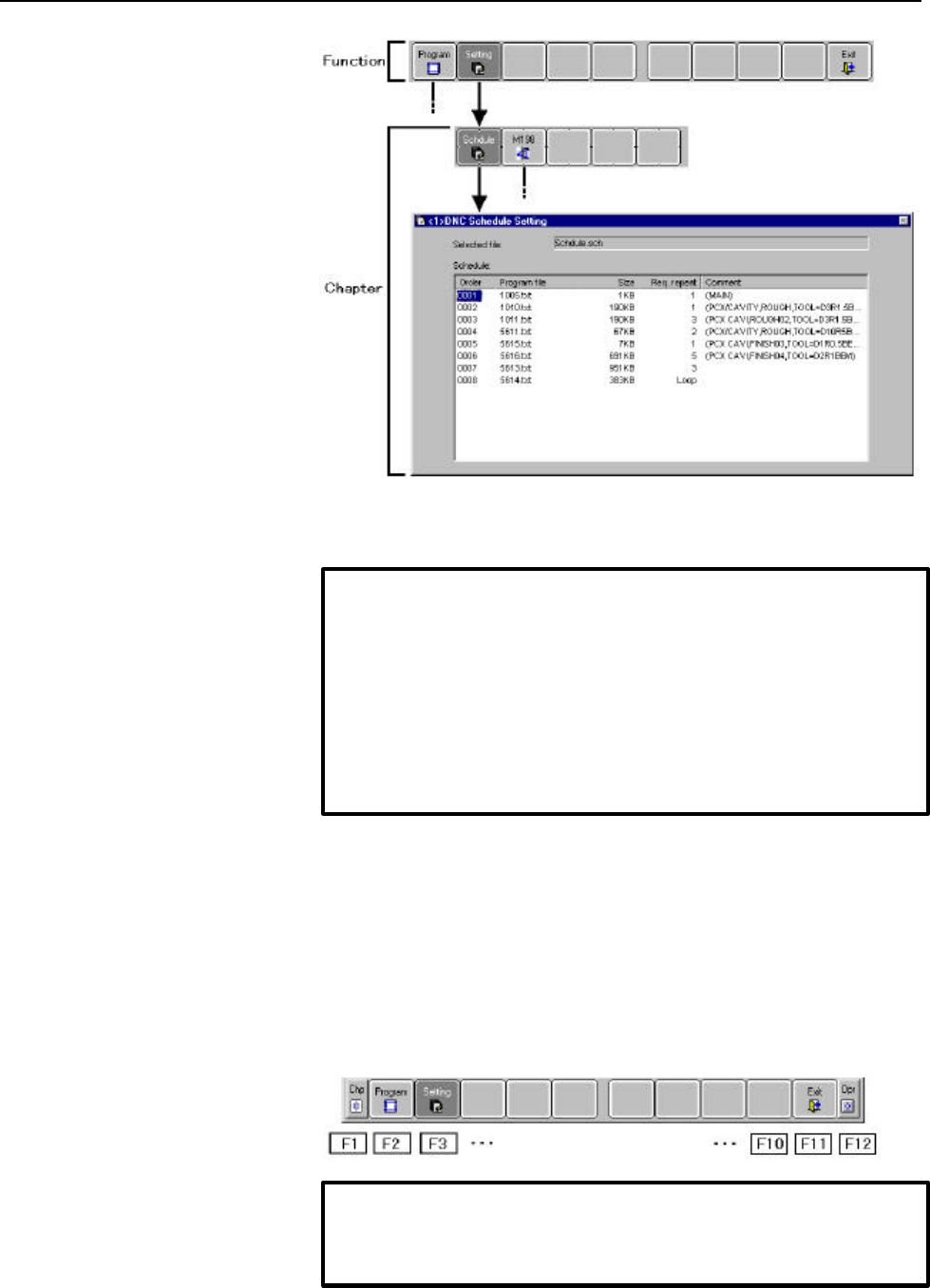

Functions and chapters can be selected using the soft keys at the
bottom of the parent window.
l Soft key
• Key-like field used to display a child window. A soft key can be
selected either by clicking the image on the screen or pressing the
corresponding key on the keyboard.
In the standard state, where no soft key customization has been
performed, the soft keys are assigned to the following keyboard keys.
The subsequent descriptions in this manual assume the standard soft
key assignment.
NOTE
This section describes the soft keys that are used with DNC Operation
Management Package. When DNC Operation Management Package
is integrated with Basic Operation Package 1, the soft key layout differs
from that shown in this section.
For an explanation of how to integrate DNC Operation Management
Package with Basic Operation Package 1, see Section 1.4, "Integration
with Basic Operation Package 1."
NOTE
The soft keys can be customized. For details, see Section 6.1.2,
"Setting soft keys."
Previous page
Next page
