OPEN CNC (DNC Operation Management Package) Operators manual Page 29

Operators manual
B-63214EN/01 2. BASIC KNOWLEDGE
- 13 -
2.2 Starting and Terminating DNC Operation Management Package
This section describes how to start and terminate DNC Operation
Management Package.
2.2.1 Starting DNC Operation Management Package
This section describes how to start DNC Operation Management Package.
Procedure
1. Click the [Start] button.
2. Select [Program] and then [DNC Operation Management Package].

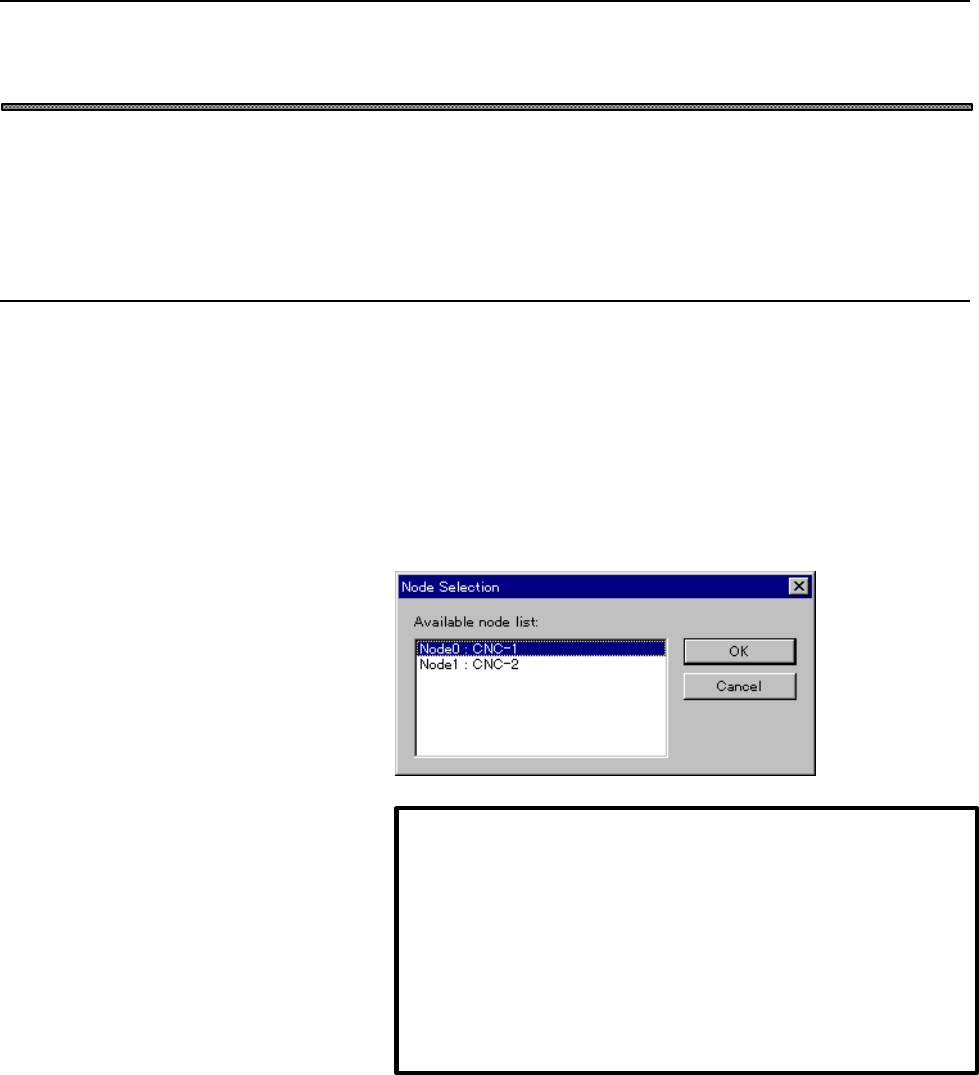

When High Speed Serial Bus multiconnection is being used, the node
selection screen appears if a node number has not been specified for an
argument for DNC Operation Management Package.
3. Select the CNC to be connected, then click the <OK> button.
The DNC Operation Management Package screen appears.
NOTE
When a node number has been specified as an argument for
DNC Operation Management Package, the node selection
screen does not appear.
The argument format is as follows:
WINDNC32 /NODE=<node-number>
<node-number> should be the number specified during
installation of the driver for the High Speed Serial Bus.
