OPEN CNC (DNC Operation Management Package) Operators manual Page 67

Operators manual
B-63214EN/01 6. CUSTOMIZATION
- 51 -
6.1.1 Setting general options for DNC Operation Management Package
This section describes how to set the general options for DNC Operation
Management Package.
Procedure
1. If the [Setting] screen is currently not displayed, follow the procedure
described in Section 6.1, "Customizing General Settings for DNC
Operation Management Package" to display the [Setting] screen.

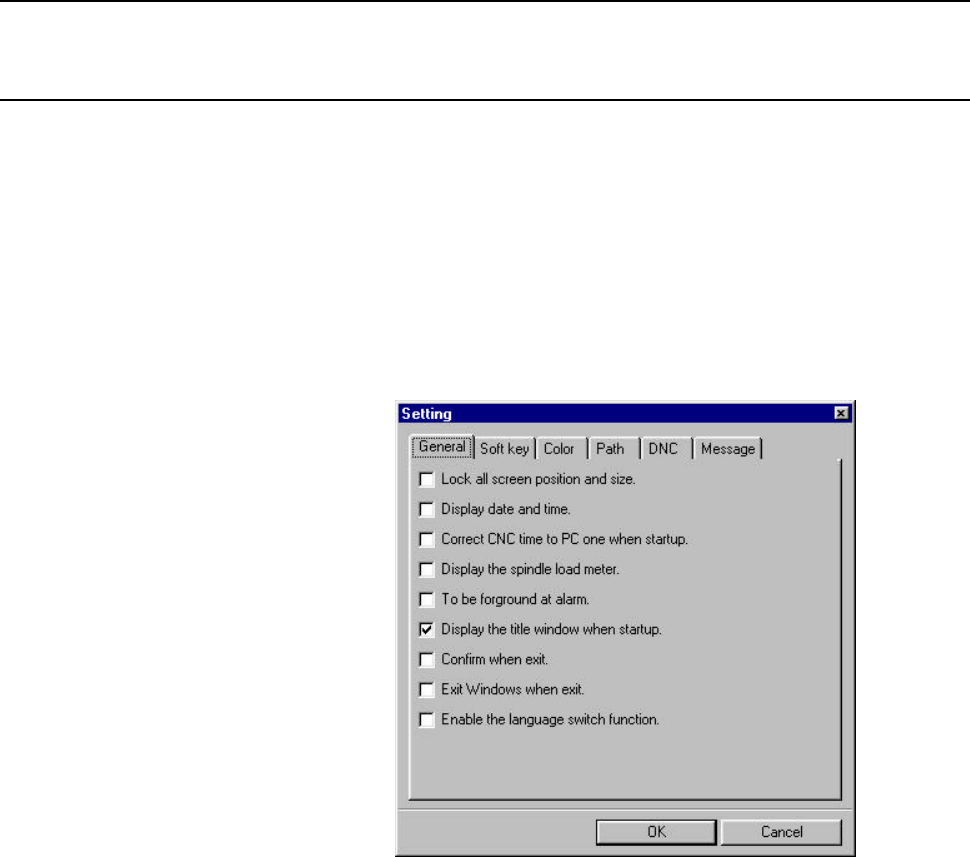

2. Click the "General" tab.
Explanation
The setting items are as follows:
l Lock all screen position and size.
Selecting this item prevents the changing of the position and size of a
window.
l Display date and time.
Selecting this item causes the date and time to be displayed in the upper-
right corner of a parent window.
l Correct CNC time to PC one when startup.
Selecting this item causes the CNC time to be synchronized with the
personal computer time when the operator starts DNC Operation
Management Package.
For the FS15 CNC, this item is disabled.
