5.EXTERNAL FIGURE SPECIFICATION B-63753EN/01
- 8 -

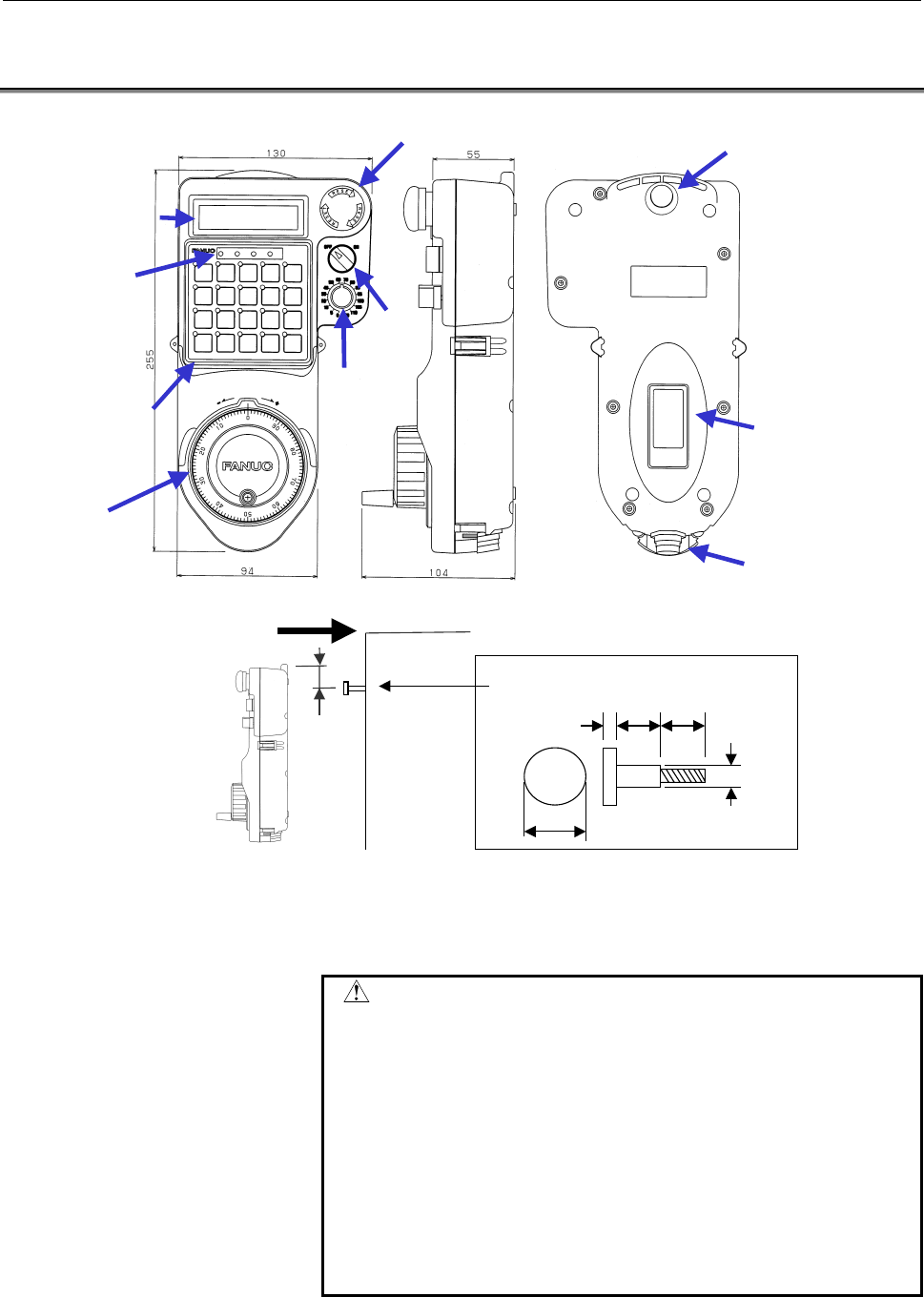

5.1 HANDY MACHINE OPERATOR’S PANEL
3 positions
enabling
switch
Input key
with LED
×
20
Manual
Pulse
generator
Operation
ON/OFF
switch
Override
switch
2 lines
×
16
characters
LCD
Emergency stop button
Single
LED
Connector
CA74
Hole for
installation
Cabinet
Installation metal fitting
A
300-0001-0060
φ
13
311
10
M4
φ
6.5
11.25
Unit: mm
Installation method
(Note)
Installation metal fitting is equivalent of A300-0001-0060. The
strength is necessary to support the weight of handy machine
operator’s panel.
CAUTION
1 Please install the handy machine operator’s panel
seen head-on it.
2 Don’t install the handy machine operator’s panel by
belt.
3 Please hold the handy machine operator’s panel
through belt. This unit has an enabling switch.
When operator is surprised unexpected motion, he
will release the enabling switch. When operator
holds the handy machine operator’s panel without
using belt, the handy machine operator’s panel may
be dropped.
