Handy Machine Operator Supplement to Manual Page 18

Supplement to Manual
5.EXTERNAL FIGURE SPECIFICATION B-63753EN/01
- 10 -

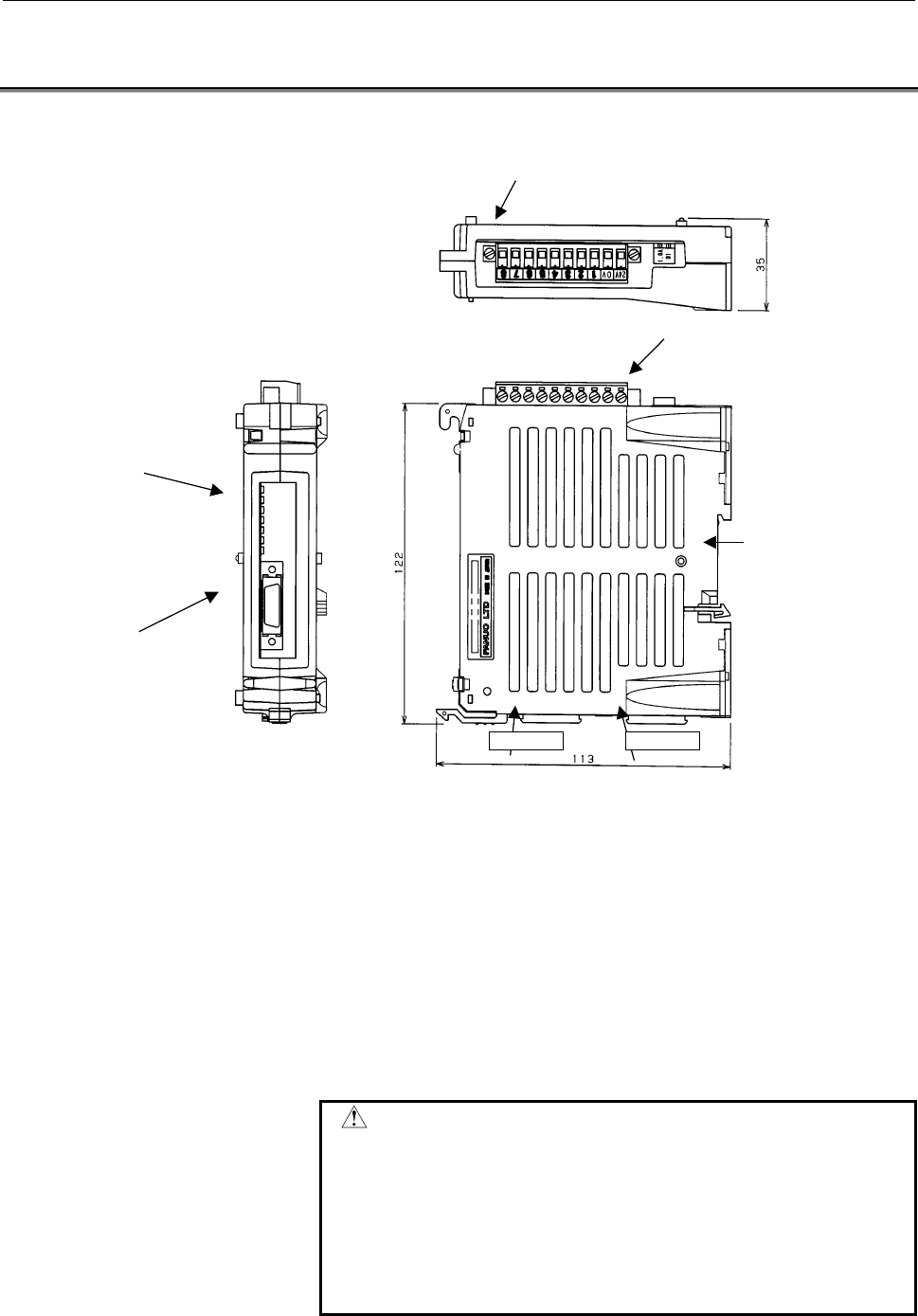

5.2 INTERFACE UNIT
The outline of interface unit is same as connector panel I/O (A03B-
0815-C001).
Connector to
handy machine
operator’s panel
JD47
Connector terminal TNB
I/O Link
JD1A
LED
LI
LD
PO
MS
E0
E1
E2
Fuse FU1
I/O Link
JD1B
Installation
side
Space of 70mm at front and under of this unit are necessary for cable
connection.
There is connector terminal TNB in the upper side. This connector
terminal is possible to connect/disconnect with connecting wire. The
space for minus driver (100mm or more) is necessary. In the case of
the connector terminal is installed while the interface unit is not
installed on the cabinet, space of 50mm or more is necessary at upper
side of this unit.
This interface unit can be installed to the cabinet with DIN rail or
screw. Please refer to the item of “connection of connector panel I/O
module” of connection manual.
CAUTION
Terminal block of connector TNB can be
disconnected without disconnecting wire. When it is
difficult to disconnect the terminal block, please
remove the unit from DIN rail etc. The terminal block
should not be disconnected with screwdriver while
the unit is mounted to DIN rail, the case may be
broken.
