AC SERVO MOTOR Alpha series Descriptions Page 135

Descriptions
B–65142E/04
3. SPECIFICATIONS AND
CHARACTERISTICS
FANUC AC SERVO MOTOR α series
119
Specification : A06B–0151–Bjjj
Specification : A06B–0152–Bjjj
Specification : A06B–0153–Bjjj

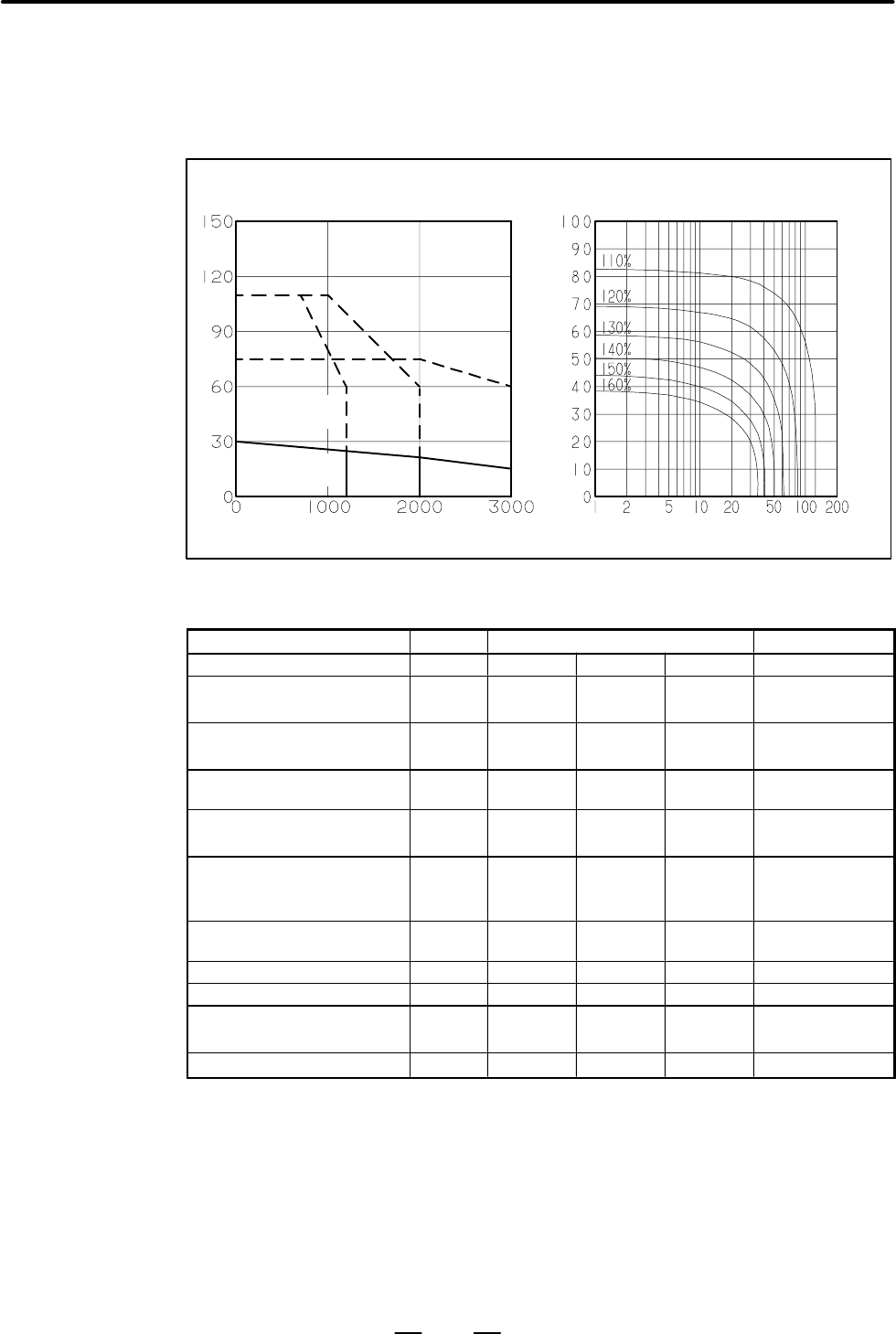

Speed – torque characteristics
Speed (min
–1
)
”ON” time (min.)
Over load duty
Torque
(Nm)
Duty
(time %)
Continuous
operating
Intermittent
operating
Data sheet
Parameter Symbol Value Unit
Rating rotation speed Nmax 1200 2000 3000 min
-1
Rated torque at stall (*) Ts
30
306
30
306
30
306
Nm
kgfcm
Rotor inertia Jm
0.017
0.17
0.017
0.17
0.017
0.17
kgm
2
kgfcms
2
Continuous RMS current at stall
(*)
Is 12.6 20.2 33.7 A (rms)
Torque constant (*) Kt
2.37
24.2
1.48
15.1
0.89
9.1
Nm/A (rms)
kgfcm/A (rms)
Back EMF constant (1–phase)
(*)
(*)
Ke
Kv
83
0.79
52
0.49
31
0.30
V (rms)/1000min
-1
V (rms)·sec/rad
Armature resistance (1–phase)
(*)
Ra 0.34 0.13 0.046 Ω
Mechanical time constant (*) tm 0.003 0.003 0.003 s
Thermal time constant tt 70 70 70 min
Static friction Tf
1.8
18
1.8
18
1.8
18
Nm
kgfcm
Mass 41 41 41 kg
(*)The values are the standard values at 20°C and the tolerance is "10%.
The speed–torque characteristics very depending on the type of software, parameter
setting, and input voltage of the digital servo motor. (The above figures show average
values.) These values may be changed without prior notice.
Model α30/1200
Model α30/2000
Model α30/3000
