AC SERVO MOTOR Alpha series Descriptions Page 233

Descriptions
B–65142E/04
3. SPECIFICATIONS AND
CHARACTERISTICS
FANUC AC SERVO MOTOR αC series
217
3102A 18–10P
Ground plate
Motor body
Motor
coil
3102A 22–22P
Ground plate
Motor body
Motor
coil
CAUTION
1 The motors should be installed with their connector facing
downward as long as possible. When it is impossible to
install a motor in this position, allow slack in the cable to
keep liquids such as a dielectric fluid from going along the
cable into the cable or motor. If there is a possibility that the
motors and connectors get wet, provide a cover to protect
them.
2 If a motor is not connected to the earth ground through the
machine (frame), connect the motor grounding point and
the amplifier grounding point to absorb noise using a 1.25
mm
2
or larger conductor other than the grounding
conductor in the power cable. Keep the grounding
conductor as far from the power cable as possible.

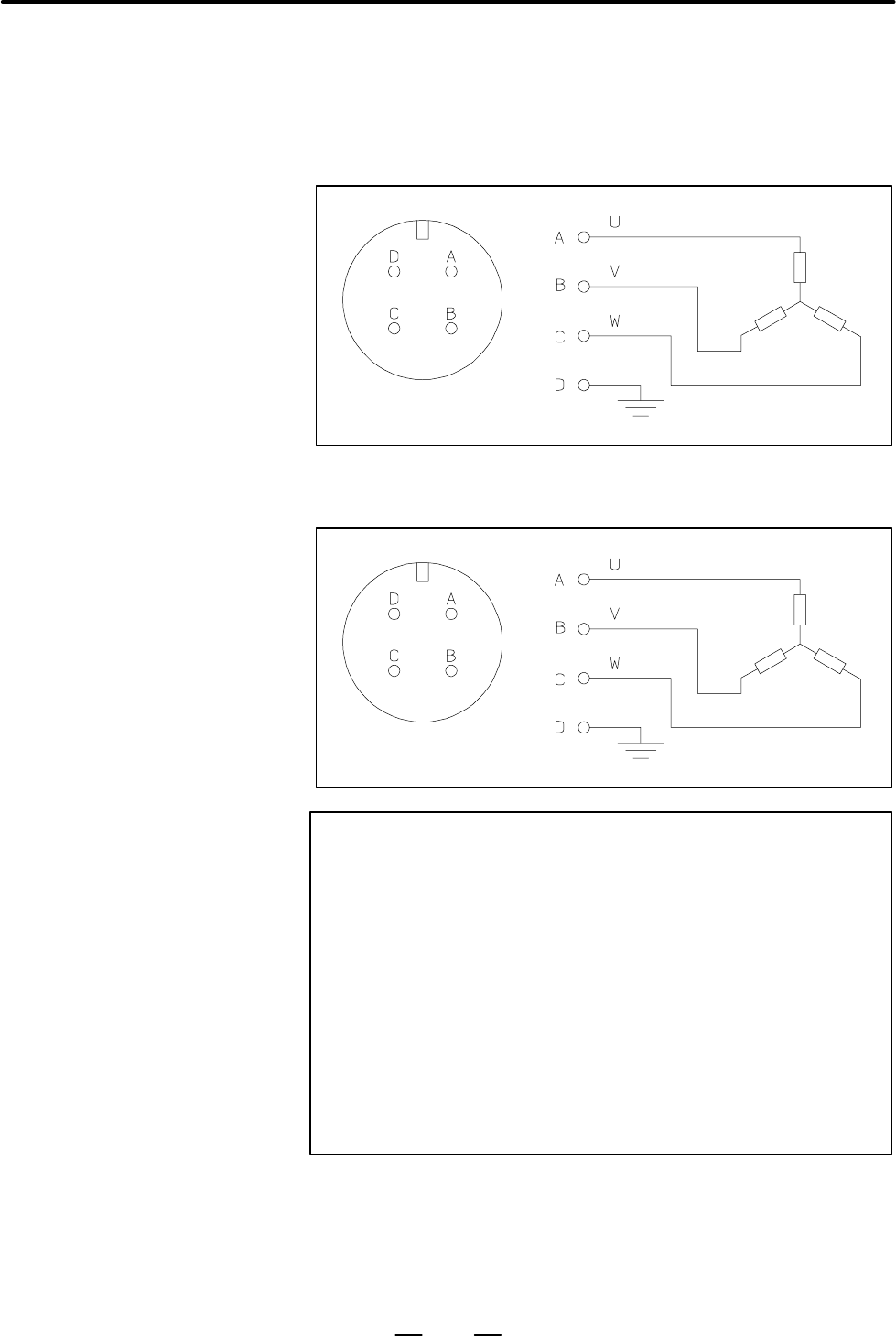

3.4
CONNECTION OF
POWER LINE
Models
αC3/2000 and αC6/2000
Models
αC12/2000 and
αC22/1500
