FANUC AC SERVO MOTOR α (HV) series
234
Specification : A06B–0131–Bjjj
Data sheet
Parameter Symbol Value Unit
Rating speed Nmax 2000 min
-1
Rated torque at stall (*) Ts
900
9180
Nm
kgfcm
Rotor inertia Jm
0.417
4.25
kgm
2
kgfcms
2
Continuous RMS current at stall
(*)
Is 220 A (rms)
Torque constant (*) Kt
4.09
41.7
Nm/A (rms)
kgfcm/A (rms)
Back EMF constant (1–phase)
(*)
(*)
Ke
Kv
142.7
1.36
V (rms)/1000min
-1
V (rms)·sec/rad
Armature resistance (1–phase)
(*)
Ra 0.011 Ω
Mechanical time constant (*) tm 0.0008 s
Thermal time constant tt 100 min
Static friction Tf
4
40
Nm
kgfcm
Weight 470 kg
(*)The values are the standard values at 20°C and the tolerance is "10%.

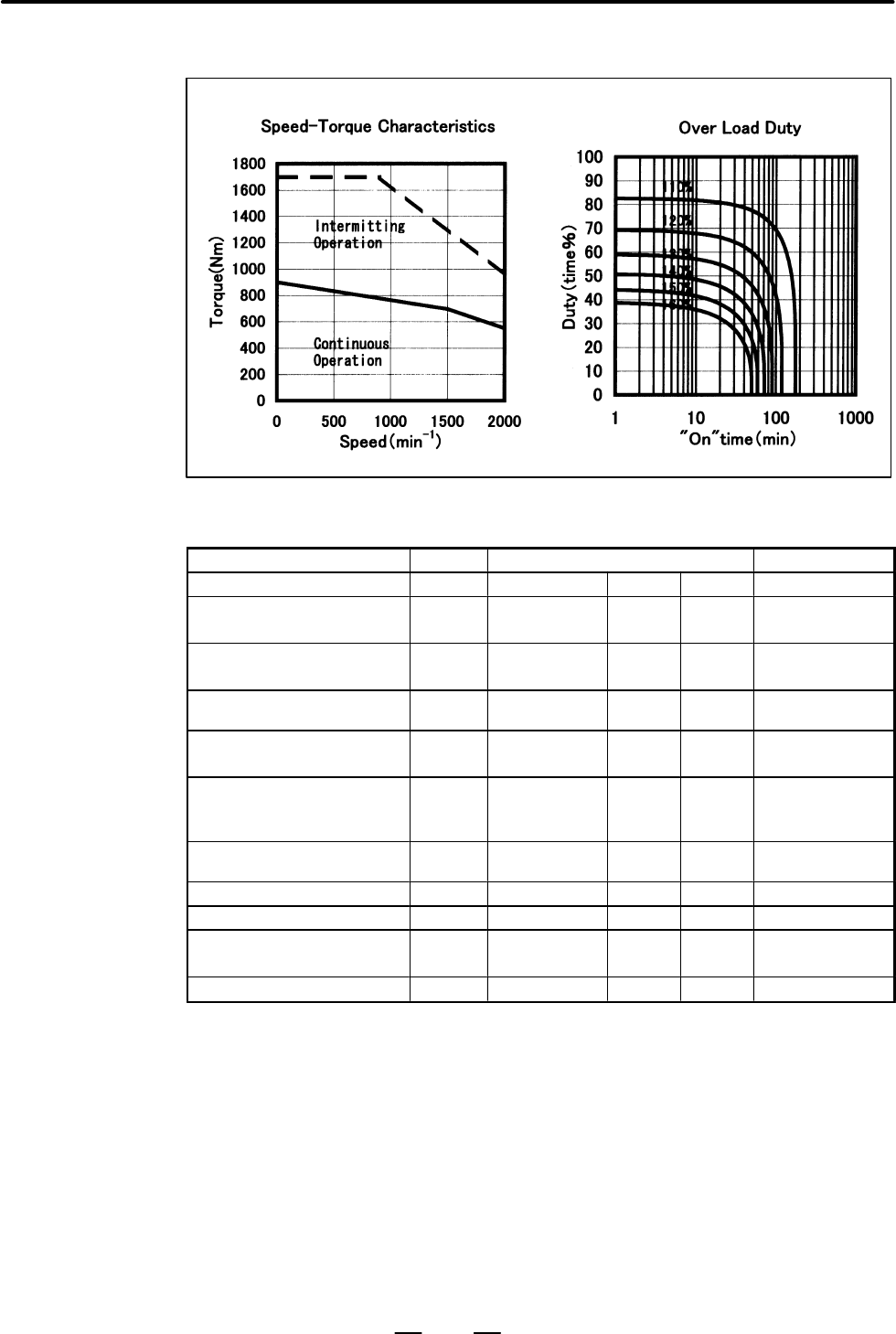

The speed–torque characteristics very depending on the type of software, parameter
setting, and input voltage of the digital servo motor. (The above figures show average
values.)
Model α1000/2000HV
