3. SPECIFICATIONS AND
CHARACTERISTICS
FANUC AC SERVO MOTOR αM (HV) series
261
Specification : A06B–0186–Bjjj

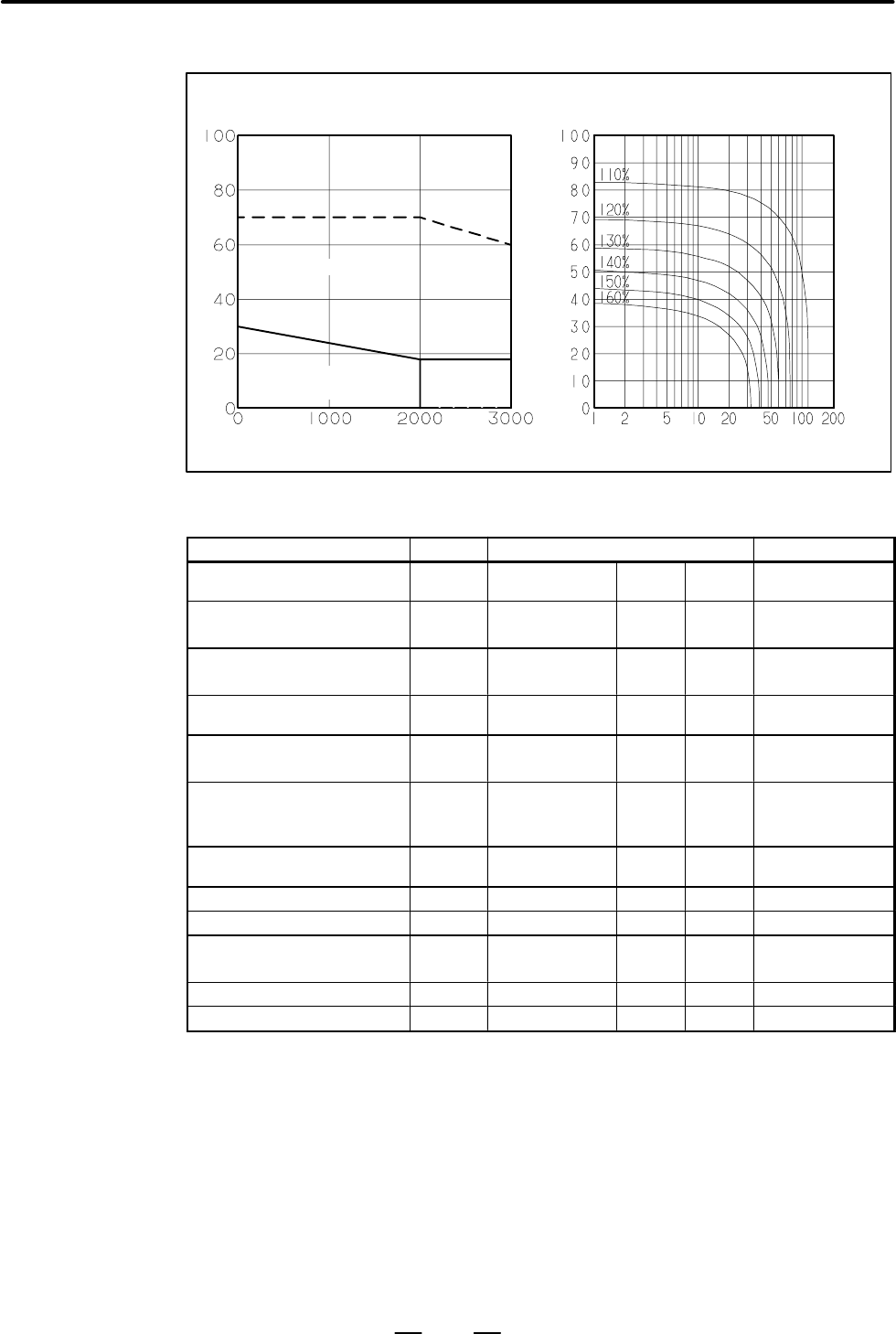

Speed – torque characteristics
Speed (min
–1
)
”ON” time (min.)
Over load duty
Torque
(Nm)
Duty
(time %)
Intermittent operating
Intermittent
operating
(S3–60%)
Continuous
operating (S1)
Data sheet
Parameter Symbol Value Unit
Rating rotation speed Nmax
2000 (S1)
3000 (S3–60%)
min
-1
Rated torque at stall (*) Ts
30
306
Nm
kgfcm
Rotor inertia Jm
0.011
0.11
kgm
2
kgfcms
2
Continuous RMS current at stall
(*)
Is 16.3 A (rms)
Torque constant (*) Kt
1.85
18.8
Nm/A (rms)
kgfcm/A (rms)
Back EMF constant (1–phase)
(*)
(*)
Ke
Kv
64
0.64
V (rms)/1000min
-1
V (rms)·sec/rad
Armature resistance (1–phase)
(*)
Ra 0.16 Ω
Mechanical time constant (*) tm 0.002 s
Thermal time constant tt 65 min
Static friction Tf
1.2
12
Nm
kgfcm
Maximum allowable current Im 160 A (peak)
Mass 30 kg
(*)The values are the standard values at 20°C and the tolerance is "10%.
The speed–torque characteristics very depending on the type of software, parameter
setting, and input voltage of the digital servo motor. (The above figures show average
values.) These values may be changed without prior notice.
The 2000 to 3000 min
–1
range of this servo motor is the intermittent operation range,
and is used mainly for positioning. In the intermittent operation range (S3 to 60%),
ON operation of six minutes and OFF operation of four minutes in a 10-minute cycle
is possible.
Model αM30/3000HV
