AC SERVO MOTOR Alpha series Descriptions Page 151

Descriptions
3.SPECIFICATIONS AND
CHARACTERISTICSFANUC AC SERVO MOTOR α series
B–65142E/04
135

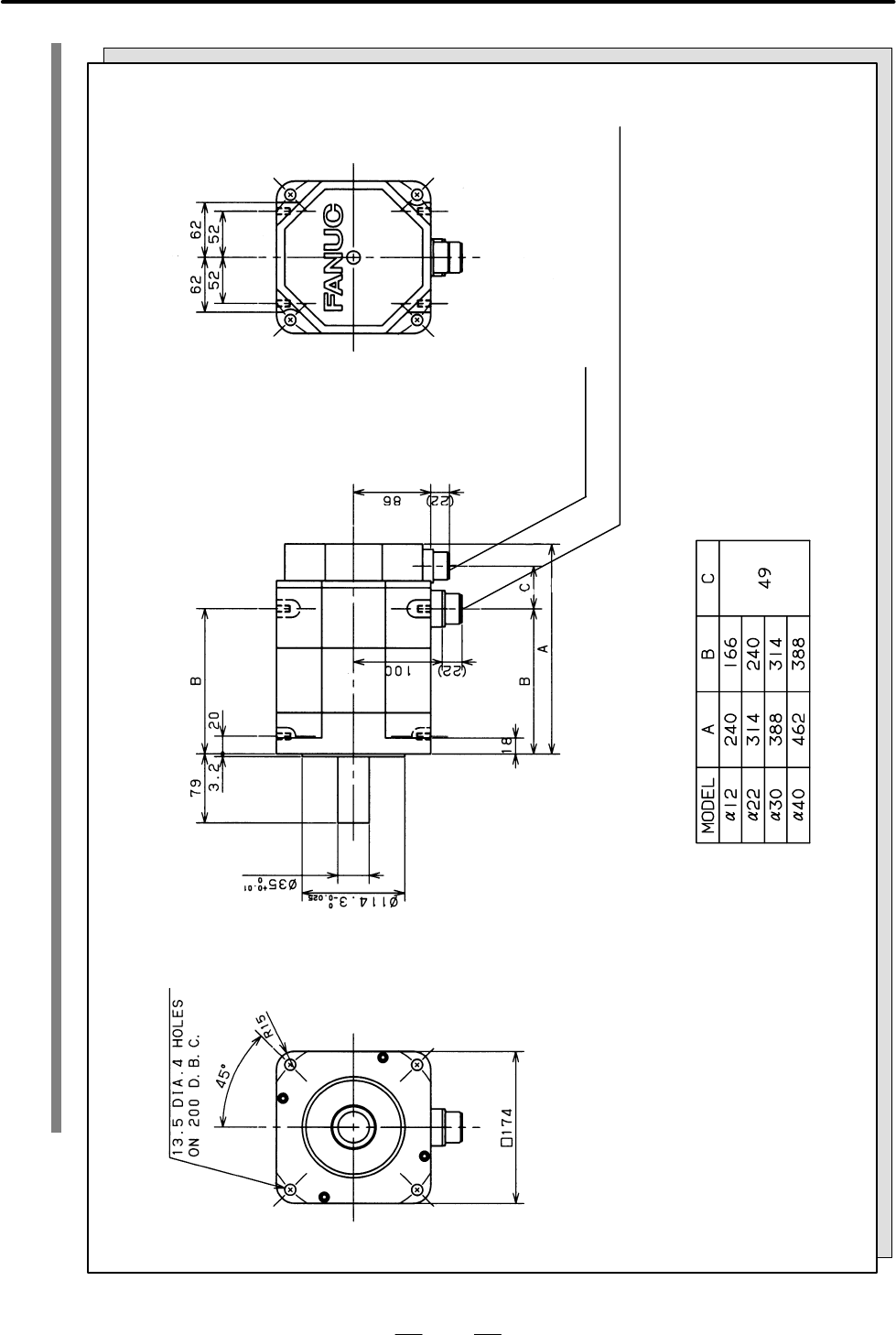

Fig. 3.3 (g)
Models α12, α22, α30, and α40
Notes)
Shaft diameter runout Max 0.05mm
Rabbet diameter eccentricity Max 0.07mm
Mounting face runout Max 0.10mm
Rated load 4410N(450kgf)
Taps for eyebolt : M8 depth 15
+1
Eyebolts are not attached
MS3102A 20–29PW
MS3102A 22–22P
(α12/2000,α12/3000,α22/1500,α22/2000,α30/1200)
MS3102A 24–10P
(α22/3000,α30/2000,α30/3000,α40/2000)
