GENERAL

B–63194EN/02

1. GENERAL

When machining the part using the CNC machine tool, first prepare the

program, then operate the CNC machine by using the program.

1) First, prepare the program from a part drawing to operate the CNC

machine tool.

How to prepare the program is described in the Chapter II.

PROGRAMMING.

2) The program is to be read into the CNC system. Then, mount the

workpieces and tools on the machine, and operate the nozzle according

to the programming. Finally, execute the machining actually.

How to operate the CNC system is described in the Chapter III.

OPERATION.

Part

drawing

Part

programming

CHAPTER II PROGRAMMING CHAPTER III OPERATION

CNC

MACHINE TOOL

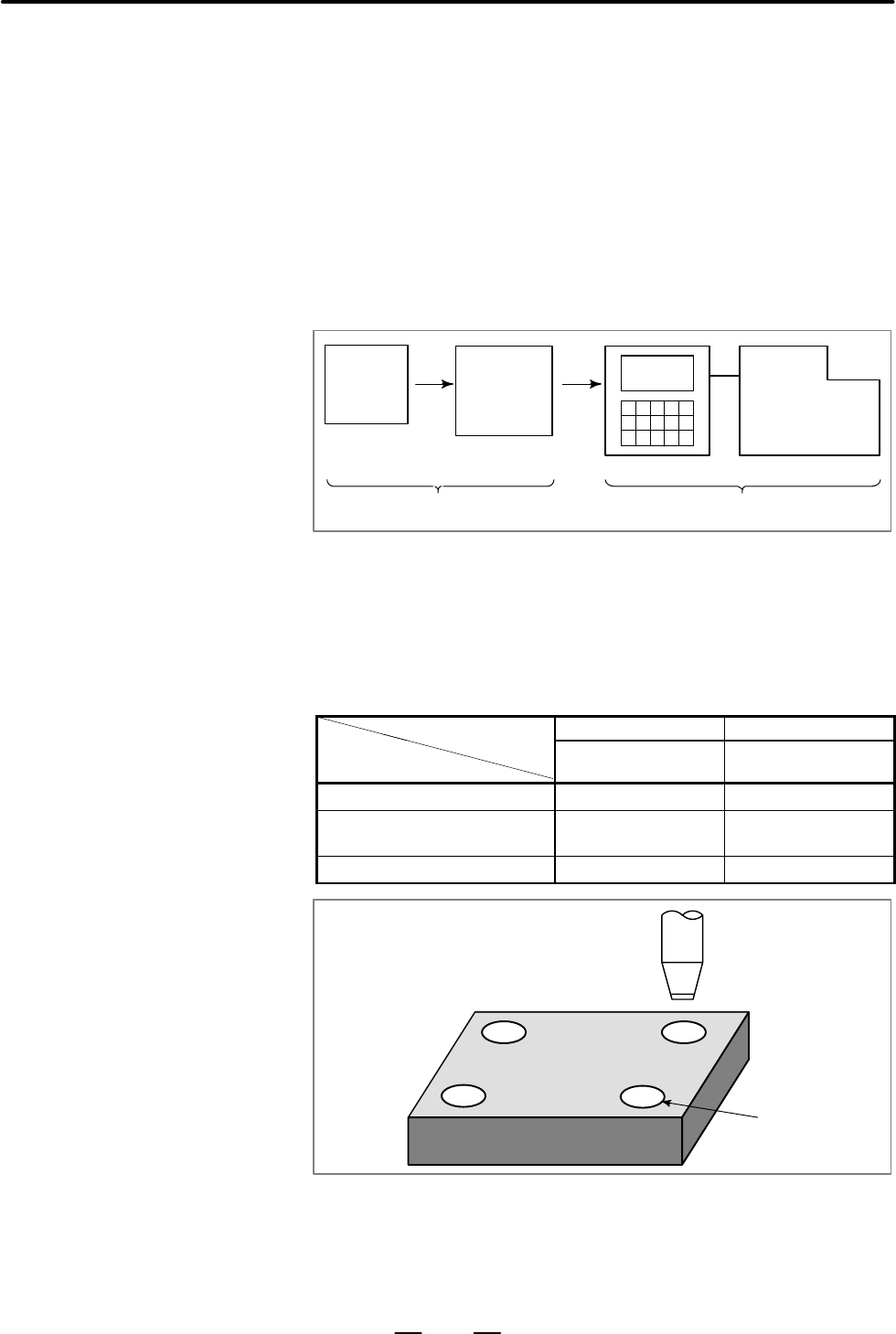

Before the actual programming, make the machining plan for how to

machine the part.

Machining plan

1. Determination of workpieces machining range

2. Method of mounting workpieces on the machine tool

3. Machining sequence in every machining process

4. Cutting conditions

Cutting process

1 2

Cutting process

Cutting procedure

Feed cutting

Hole

machining

1. Cutting nozzle

2. Cutting conditions

: Feedrate

3. Nozzle path

Hole cutting

Prepare the program of the nozzle path and cutting condition according

to the workpiece figure, for each cutting.

1.1

GENERAL FLOW OF

OPERATION OF CNC

MACHINE TOOL
