1. Fanuc
  2. Series 16i/160i-LA

Series 16i/160i-LA Operators manual Page 62

Operators manual
PROGRAMMING4. INTERPOLATION FUNCTIONS
B–63194EN/02
42

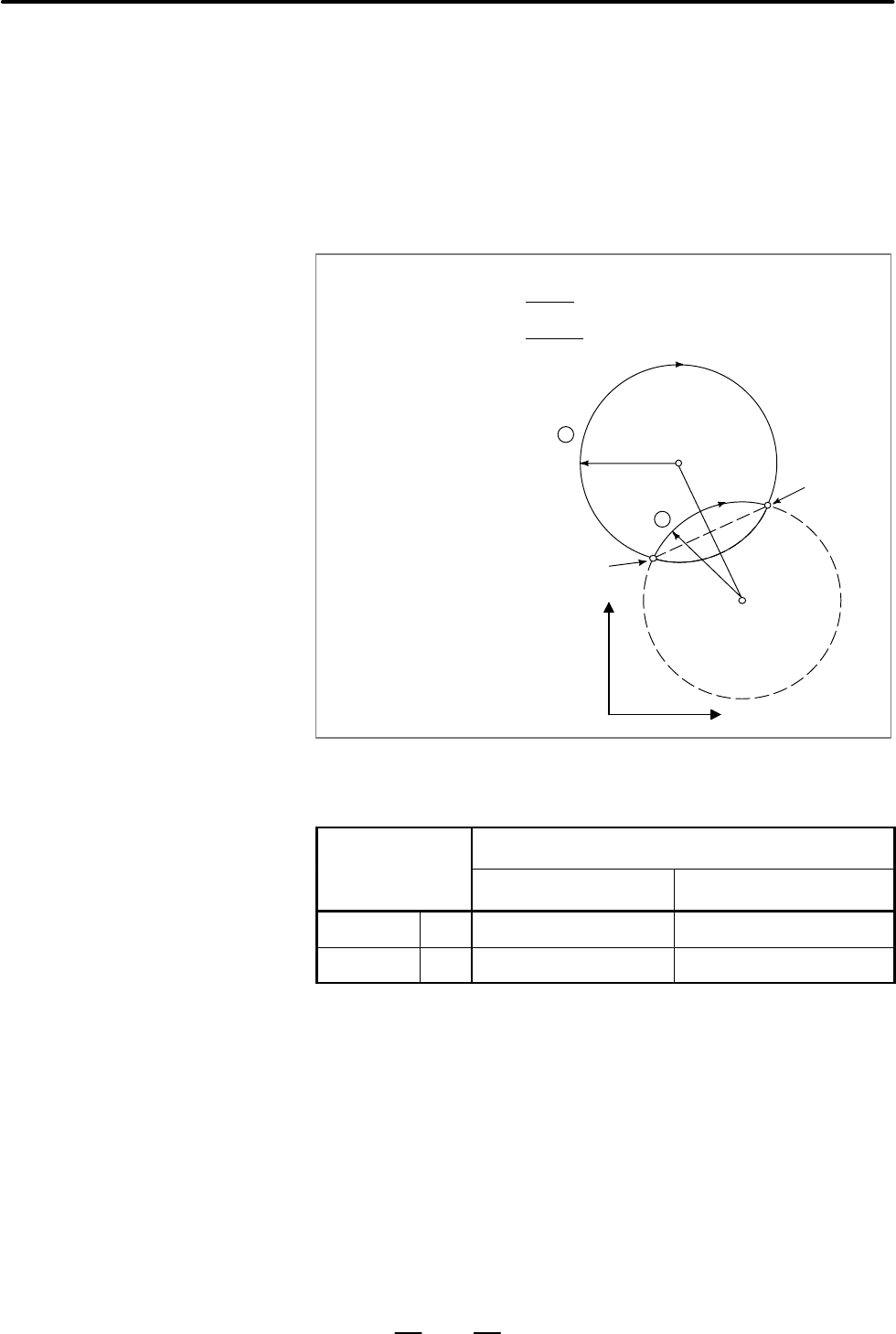

The distance between an arc and the center of a circle that contains the arc
can be specified using the radius, R, of the circle instead of I, J, and K.
In this case, one arc is less than 180°, and the other is more than 180° are
considered. When an arc exceeding 180° is commanded, the radius must
be specified with a negative value. If Xp, Yp, and Zp are all omitted, if
the end point is located at the same position as the start point and when
R is used, an arc of 0° is programmed
G02R ; (The cutter does not move.)
r=50mm
End point
Start point
r=50mm
1
2
For arc (1)(less than 180°)
G91 G02 X
P
60.0 Y
P
20.0 R50.0 F300.0 ;
For arc (2)(greater than 180°)
G91 G02 X
P
60.0 Y
P
20.0 R–50.0 F300.0 ;
Y
X
If the 9–digit arc radius R specification option is selected, the valid radius
ranges are extended for the circular interpolation function.
The valid arc ranges are as follows:
Input unit
Metric input Inch input
Unit system IS–B 0.001 to 999999.999mm 0.0001 to 99999.9999inch
IS–C 0.0001 to 99999.9999mm 0.00001 to 9999.99999inch
D Arc radius
