Series 16i/160i-LA Operators manual Page 708

Operators manual

Page of 820

/ 820

OPERATION

B–63194EN/02

12. GRAPHICS FUNCTION

689

11 Press soft key [STOP] to stop drawing temporarily. Drawing is

stopped after drawing the current block and “

STOP” blinks at the

lower right corner of CRT screen. Press soft key

[A.ST] or [F.ST]

when restarting drawing. Press soft key [REWIND] and then the

[A.ST] or [F.ST] if redrawing from the head. It is possible to continue

drawing after changing the solid graphic parameters in temporary

stop.

12 When the end of program (M02 or M03) is executed, the drawing

ends and the blinking of “

DRAWING” stops. Then, the final finish

figure is drawn on the CRT screen. The drawn figure view is retained

until the power is turned off as long as a new machine figure view is

drawn.

13 The color, intensity, or drawing direction of a machining figure which

has been drawn can be changed and the figure redrawn.

To redraw the figure, first change the parameters for the color,

intensity, or drawing direction on the

SOLID GRAPHIC

(PARAMETER) screen shown in step 1, then press soft key

[REVIEW] to display the SOLID GRAPHIC (REVIEW) screen.

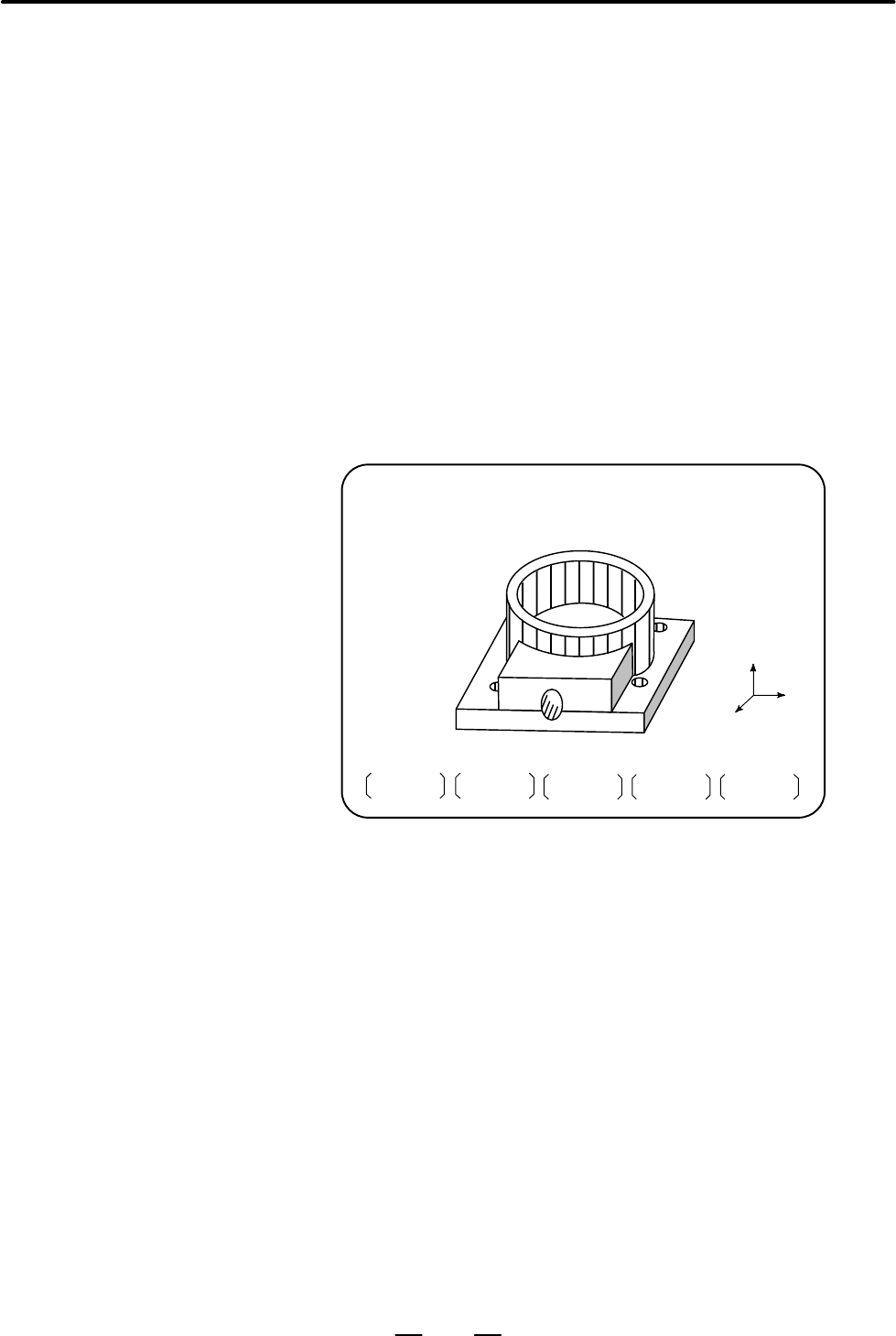

SOLID GRAPHIC (REVIEW)

O1126 N01126

ANEW

+ROT

–ROT

+TILT –TILT

14 Press soft key [(OPRT)], then press soft key [ANEW]. The machining

figure is redrawn with the color, intensity, or drawing direction set in

step 13.

15 To redraw the figure in a different mode, press soft key

[+ROT],

[–ROT], [+TILT], or [–TILT]. Parameters P and Q for the drawing

direction are changed and the figure is redrawn with the new

paramaters.

D REVIEW
