Series 16i/160i-LA Operators manual Page 511

Operators manual

Page of 820

/ 820

OPERATION5. TEST OPERATION

B–63194EN/02

492

A programmed feedrate can be reduced or increased by a percentage (%)

selected by the override dial.This feature is used to check a program.

For example, when a feedrate of 100 mm/min is specified in the program,

setting the override dial to 50% moves the tool at 50 mm/min.

Nozzle

Processing can be

checked by changing

the feedrate specified

in the program.

Programmed feedrate:

100 mm/min

Feedrate after feedrate

override: 50 mm/min

Workpiece

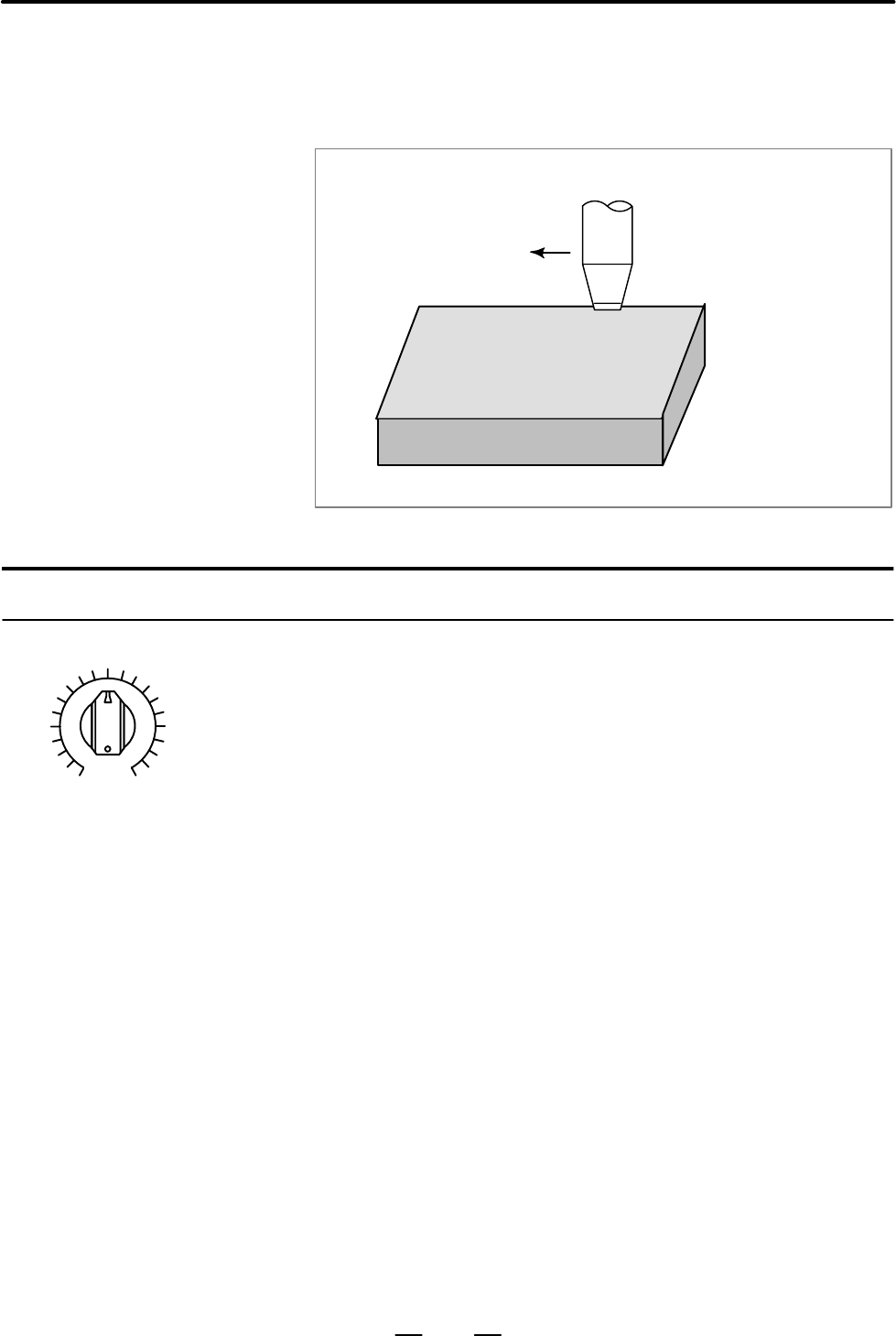

Fig. 5.2 Feedrate override

Procedure for Feedrate Override

Set the feedrate override dial to the desired percentage (%) on the machine

operator’s panel, before or during automatic operation.

On some machines, the same dial is used for the feedrate override dial and

jog feedrate dial. Refer to the appropriate manual provided by the

machine tool builder for feedrate override.

The override that can be specified ranges from 0 to 254%. For individual

machines, the range depends on the specifications of the machine tool

builder.

5.2

FEEDRATE

OVERRIDE

0 200

OG FEED RATE OVERRIDE

Restrictions

D Override Range
