Series 16i/160i-LA Operators manual Page 712

Operators manual

Page of 820

/ 820

OPERATION

B–63194EN/02

12. GRAPHICS FUNCTION

693

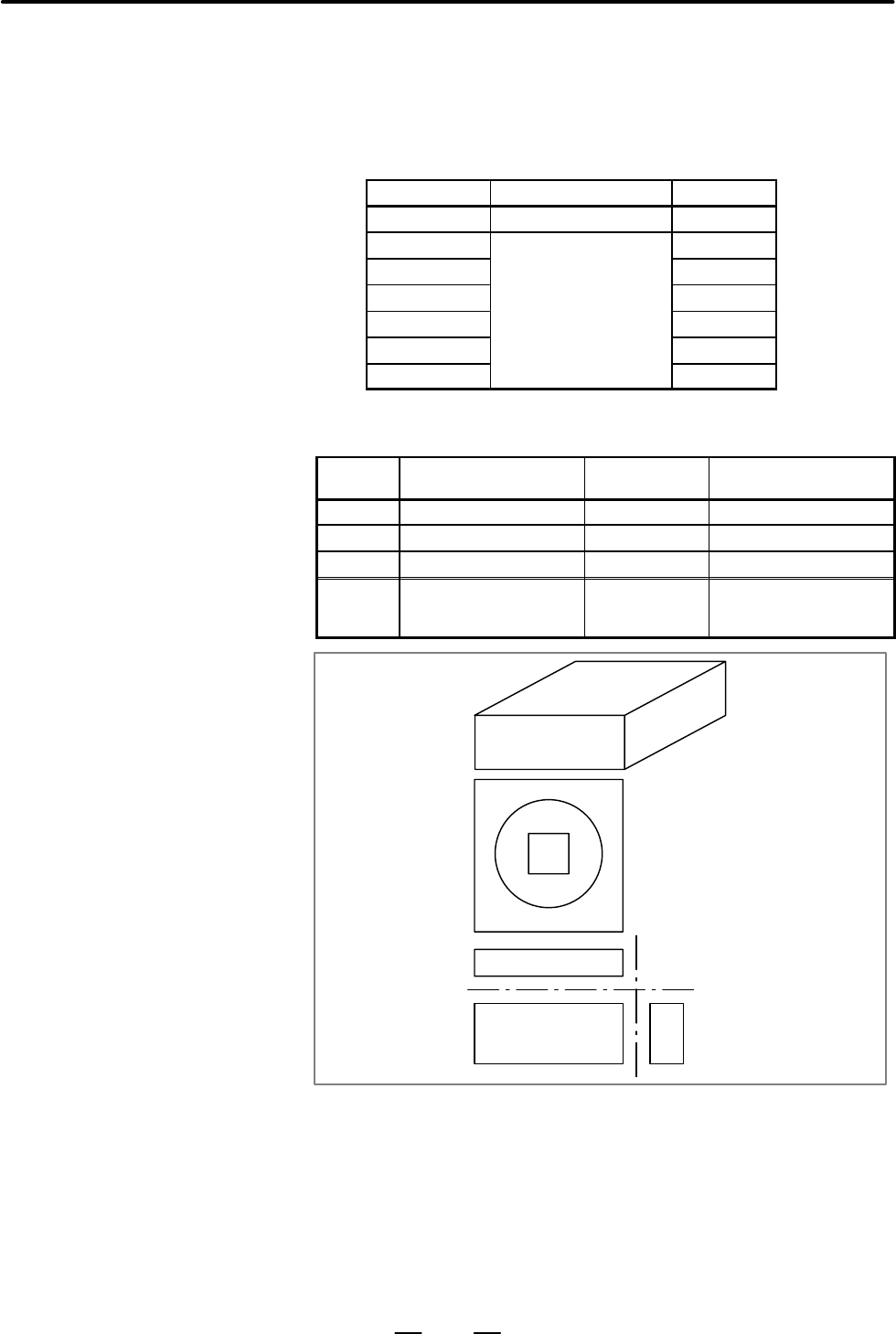

Specify the intensity of the drawing screen when performing drawing on

the monochrome, and the color of the drawing screen when performing

drawing on the color screen. The relationship between the setting,

intensity, and color is as shown below:

However, when the plane view is displayed on the monochrome. The

brighter surface, whichever is specified by P or Q becomes the top surface.

Setting value Intensity Color

0 Maximum brightness White

1 Red

2 Green

Dark

Yellow

↓

Blue

5 Purple

Light

Light blue

The relationship between the display address, surface, and line on the

machined figure view is as shown below:

Address

Oblique projection

view

Plane view Triplane view

P Upper surface Upper surface Upper/lower surface

Q Side surface Middle surface Left/right surface

R Ridge Ridge Ridge

Remarks The intensity/color of

front surface is

between P and Q

Lower surface

is blank

The intensity/color of

plane view is between

P and Q

P+Q

Blank

P+Q

Oblique projection view

Plane view

Triplan view

Specify the start sequence number and end sequence number of each

drawing in a five–digit numeric. The subject part program is executed

from the head. But only the part enclosed by the start sequence number

and end sequence numeric is drawn. When 0 is commanded as the start

sequence number, the program is drawn from its head. When 0 is

commanded as the end sequence number, the program is drawn to its end.

The comparison of sequence number is performed regardless of main

program and subprogram.

D INTENSITY

D START SEQ. NO. and

END SEQ. NO.
