13. CUSTOM MACRO

259

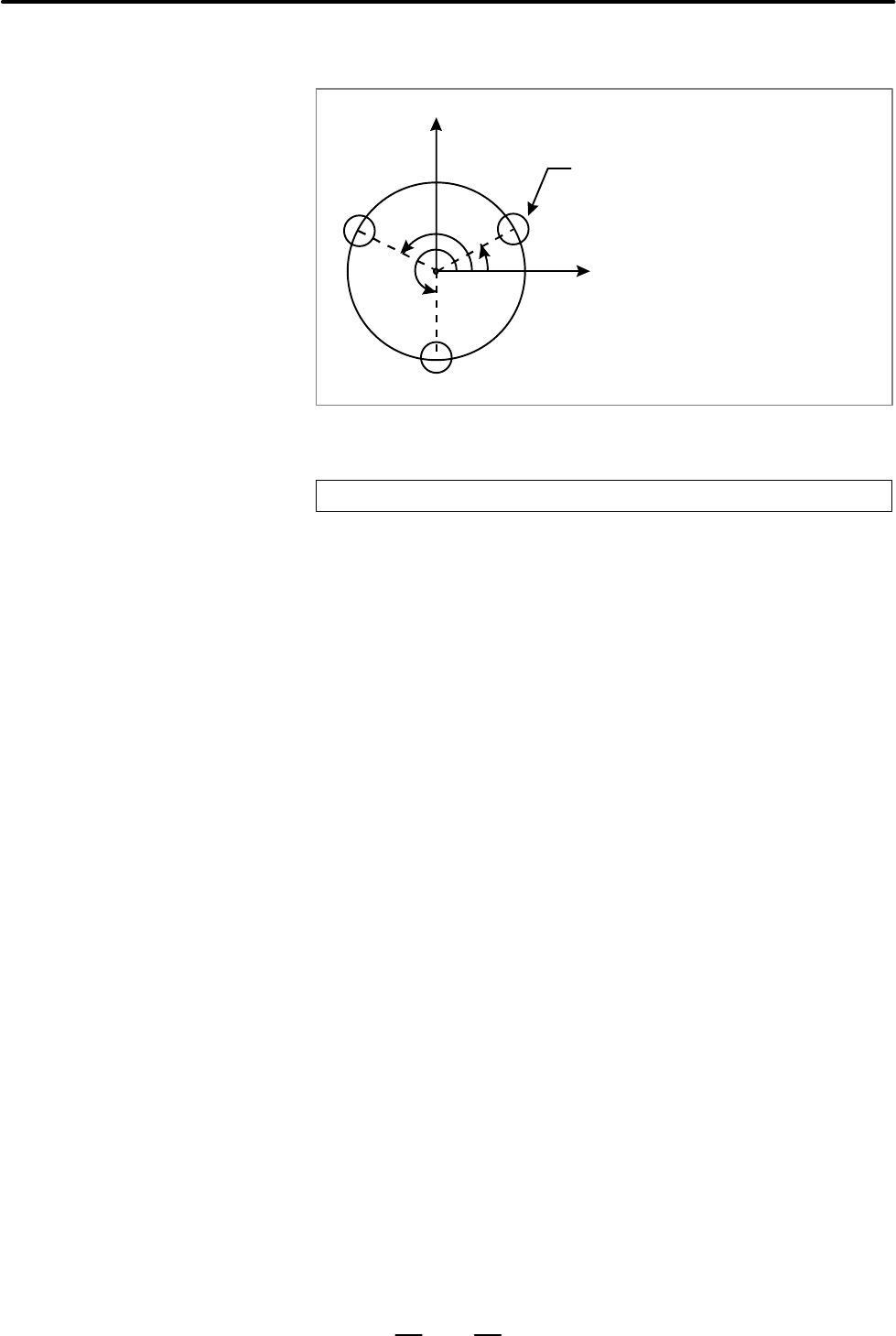

Bolt hole circles are machined. Each time positioning is performed, a bolt

hole is machined at that location.

270°

Bolt hole

D The origin of the polar coordinate

system is the same as that of the

workpiece coordinate system.

D The plane is the X–Y plane.

150°

30°

G65 P9110 Rr;

R: Radius of a bolt hole circle (#18). . . . . . . . . . . . . . . . . . . . . . . . .

O0001;

G17 G90 G16; Polar coordinate command, X–Y plane selection. .

The origin of the polar coordinate system is the same

as that of the workpiece coordinate system.

G66 P9110 R10.0 F2000; Macro modal call specification. . .

G00 X100.0 Y30.0; Radius: 100 mm, angle: 30 deg.. . . . . . . .

G00 X150.0; Radius: 100 mm, angle: 150 deg.. . . . . . . . . . . . . .

G00 Y270.0; Radius: 100 mm, angle: 270 deg.. . . . . . . . . . . . . .

G15; Polar coordinate command cancel. . . . . . . . . . . . . . . . . . . .

M30;

O9110;

G91 G15;

G24; Piercing. . . . . . . . . . . . . . . . . . . . .

G01 Y–#18; Bolt hole machining. . . . . . . . . . . . . . .

G03 J#18; Bolt hole machining. . . . . . . . . . . . . . . .

G90 G16;

M99;

Sample program

D Calling format

D Program that calls a

macro program

D Macro program

(program called)
