OPERATION

B–63194EN/02

12. GRAPHICS FUNCTION

697

The background drawing function enables the drawing of a figure for one

program while machining a workpiece under the control of another

program.

Procedure for Background Drawing

1 Press the

GRAPH

function key (

CUSTOM

GRAPH

for a small MDI).

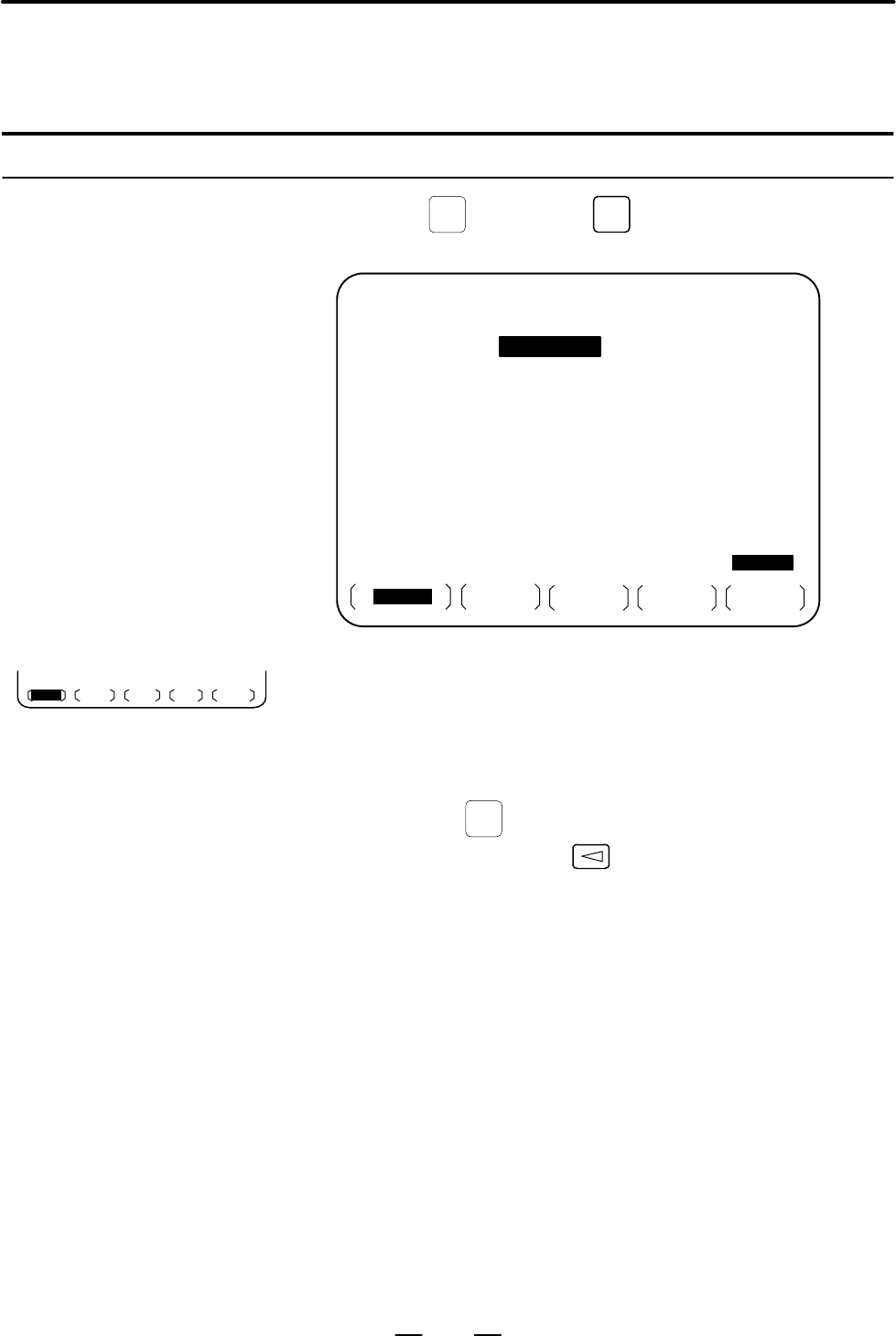

2 Press the [PARAM] soft key. The following screen appears:

MDI

* * * * * * * * * *

21 : 20 : 05

EXEC

SCALE

POS

(OPRT)

PATH GRAPHIC (PARAMETER–1) O0001 N00001

AXES P= 0

(XY=0, YZ=1, ZY=2, XZ=3, XYZ=4, ZXY=5, 2P=6)

ANGLE

ROTATION A = 0

TILTING A = 0

SCALE K = 0.00

CENTER OR MAX./MIN.

X= 0.000 X= 0.000 X= 0.00

START SEQ. NO. N= 0

END SEQ. NO. N= 0

BGGRP

PARAM

3 Press the [(OPRT)] soft key.

4 To select the program to be used for drawing, enter the number of that

program, then press the [O SRH] soft key. (The O number at the top

right of the screen indicates the selected program.) Repeatedly pressing

only the [O SRH] soft key selects the registered programs in turn.

To input a graphic parameter, the [INPUT] soft key can be used

instead of the

INPUT

MDI key.

5 Press the left–most soft key

(return menu key), to return the soft

keys to the state existing upon the completion of step 2.

6 Perform dynamic graphic display, as described in Section III–12.2.

Immediately after entering background drawing mode, the program

which was selected previously remains selected. Any program can be

selected for background drawing, by using the background drawing

screen.

If no program is selected prior to entering background drawing mode, the

program number is set to 0. In such a case, drawing cannot be started until

the program to be used for drawing is specified.

Separate tool offsets are internally provided for machining and

background drawing. Upon starting drawing or when selecting a program

for drawing, the tool offset data for machining is copied to the tool offset

data for background drawing. Changing a tool offset by using a G10

command during machining does not affect that for background drawing.

Similarly, changing a tool offset by using a G10 command during drawing

does not affect that for machining.

12.3

BACKGROUND

DRAWING

Procedure

O SRH INPUT

Explanations

D Program selection

D Tool offsets
