Series 0i-PC Operators manual Page 239

Operators manual

Page of 724

/ 724

PROGRAMMING

B–64154EN/01

15. COMPENSATION FUNCTION

215

When G28 is specified in cutter compensation C mode, an operation of

FS15 type is performed if CCN (bit 2 of parameter No. 5003) is set to 1.

This means that an intersection vector is generated in the previous block,

and a perpendicular vector is generated at an intermediate position. Offset

vector cancellation is performed when movement is made from the

intermediate position to the reference position. As part of restoration, an

intersection vector is generated between a block and the next block.

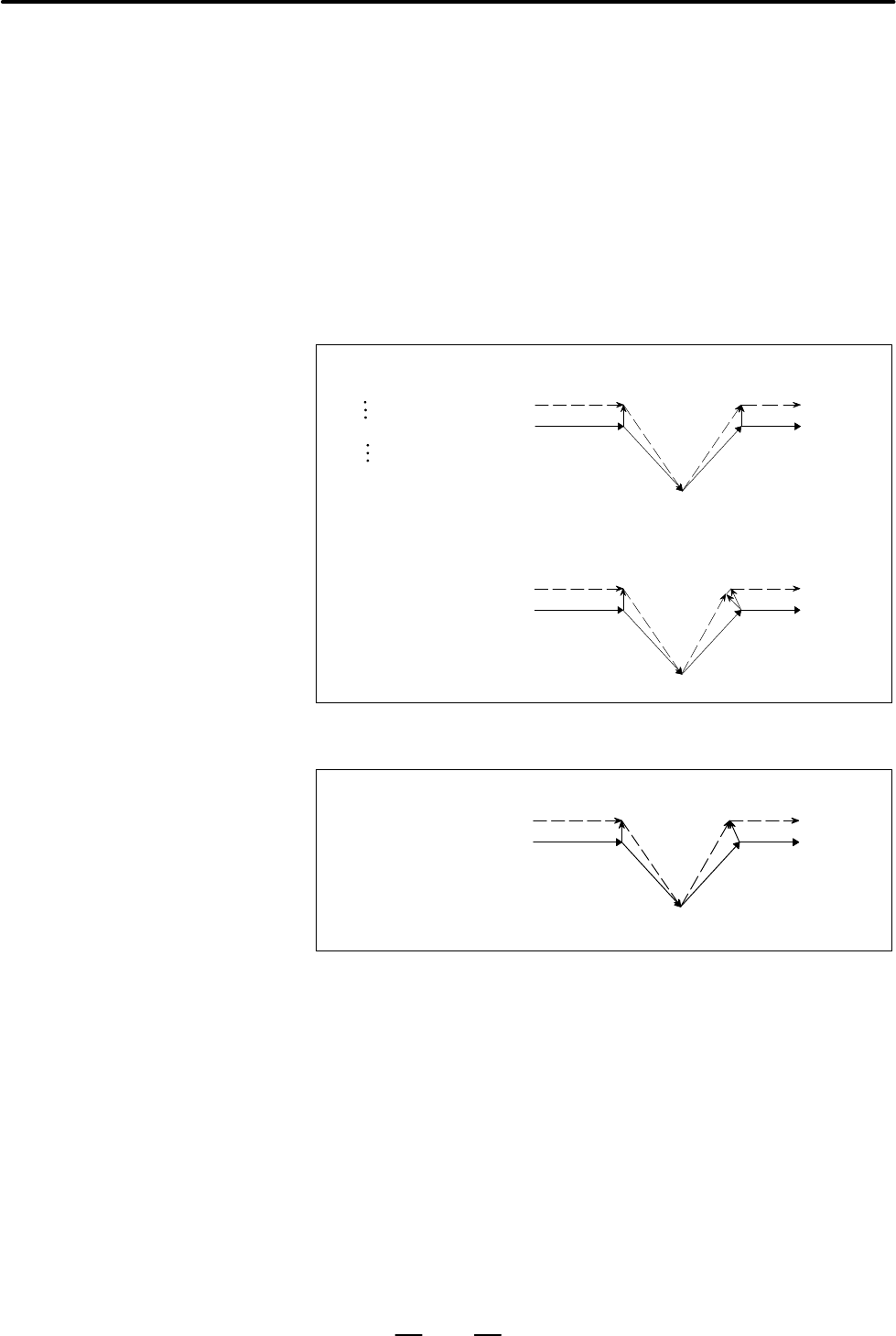

(1)G28 specified in offset mode (with movement to an intermediate

position not performed)

When CCN (bit 2 of parameter No.5503)=0

Oxxxx;

G91G41_ _ _;

G28 ;

G00

[Type A]

(G42G01)

[Type B]

G28

(G42G01)

G28

G01

Start–up

G00

Reference position

Intermediate

position

Intermediate

position

Start–up

Reference position

When CCN (bit 2 of parameter No.5503)=1

G00

[FS15 Type]

G28

(G41G01)

G01

Reference position

Intermediate

position

D G28 command in cutter

compensation C mode
