PROGRAMMING

B–64154EN/01

16. CUSTOM MACRO

243

S When a wait for the completion of auxiliary functions (M, S, and T

functions) is not specified, program execution proceeds to the next

block before completion of auxiliary functions. Also, distribution

completion signal DEN is not output.

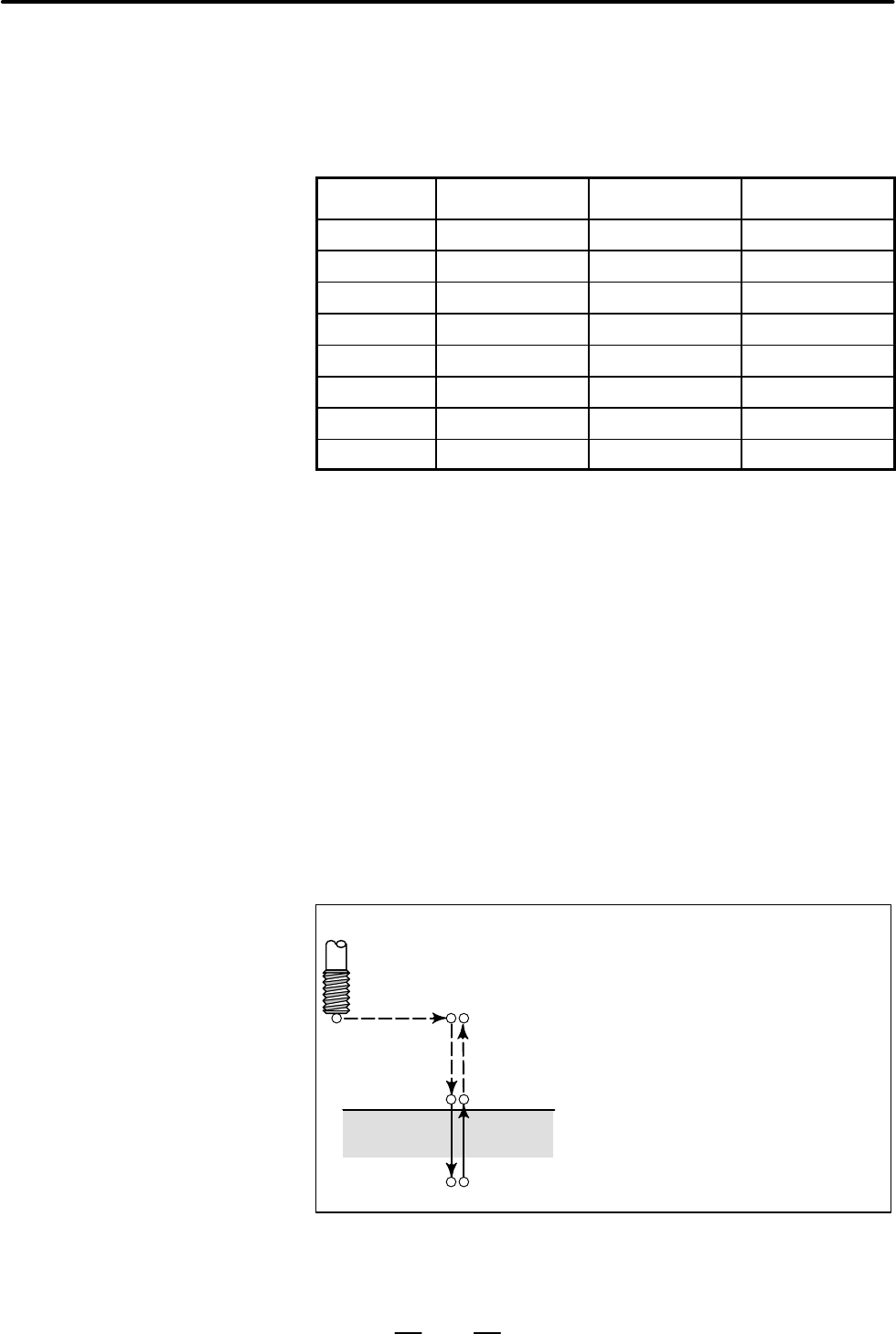

Table 16.2 (f) System variable (#3004) for automatic operation control

#3004

Feed hold Feedrate Override Exact stop

0 Enabled Enabled Enabled

1 Disabled Enabled Enabled

2 Enabled Disabled Enabled

3 Disabled Disabled Enabled

4 Enabled Enabled Disabled

5 Disabled Enabled Disabled

6 Enabled Disabled Disabled

7 Disabled Disabled Disabled

S When the power is turned on, the value of this variable is 0.

S When feed hold is disabled:

<1> When the feed hold button is held down, the machine stops in

the single block stop mode. However, single block stop

operation is not performed when the single block mode is

disabled with variable #3003.

<2> When the feed hold button is pressed then released, the feed hold

lamp comes on, but the machine does not stop; program

execution continues and the machine stops at the first block

where feed hold is enabled.

S When feedrate override is disabled, an override of 100% is always

applied regardless of the setting of the feedrate override switch on the

machine operator’s panel.

S When exact stop check is disabled, no exact stop check (position

check) is made even in blocks including those which do not perform

cutting.

O0001 ;

N1 G00 G91 X#24 Y#25 ;

N2 Z#18 ;

G04 ;

N3 #3003=3 ;

N4 #3004=7 ;

N5 G01 Z#26 F#9 ;

N6 M04 ;

N7 G01

Z–[ROUND[#18]+ROUND[#26]] ;

G04 ;

N8 #3004=0 ;

N9 #3003=0 ;

N10M03 ;

M99 ;

N3, N4

N8, N9,

N10

Fig. 16.2 Example of using variable #3004 in a tapping cycle
