1. METHOD OF REPLACING

BATTERY

MAINTENANCE

B–64154EN/01

637

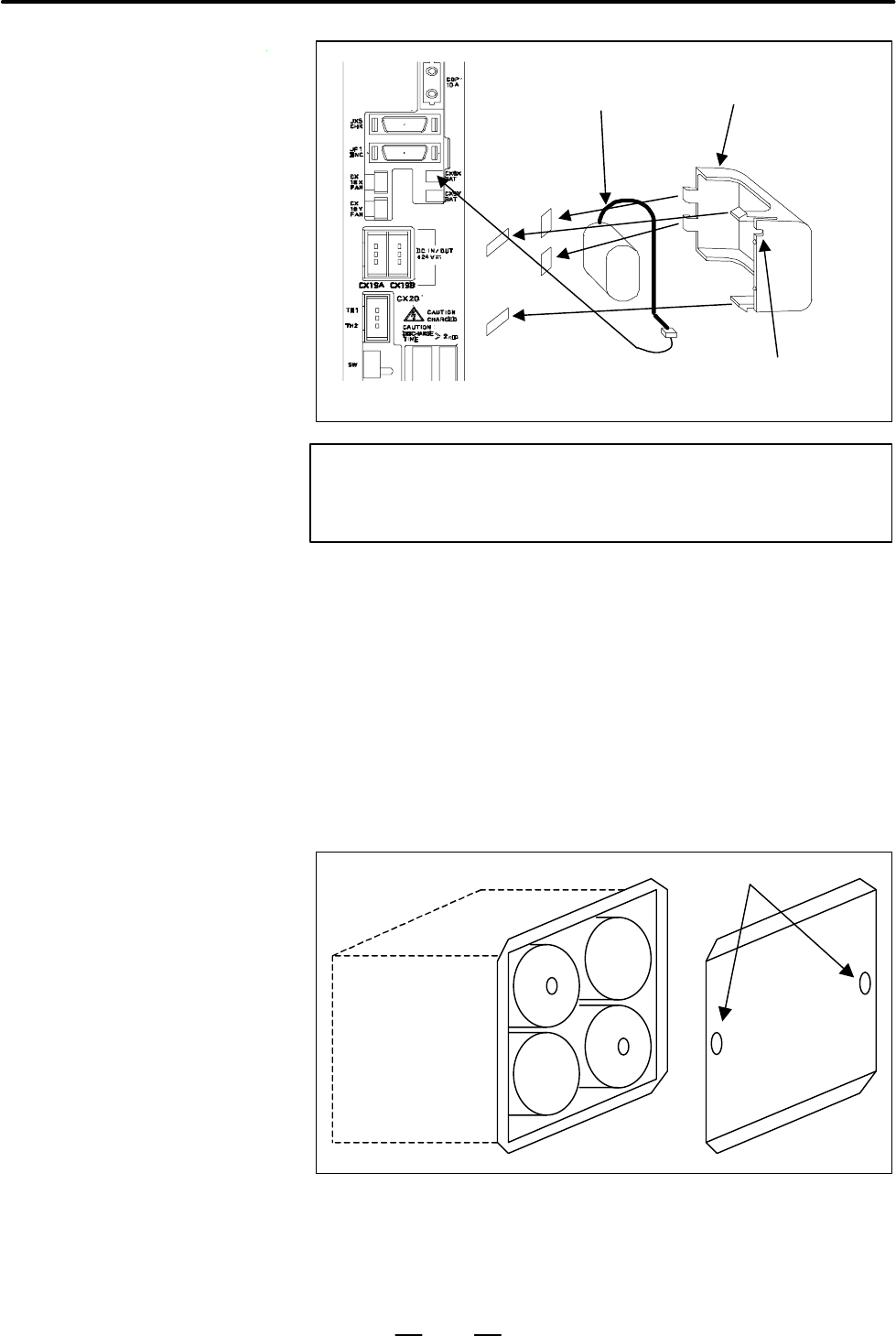

Battery

Battery cover

Pass the battery cable to this slit.

SVU–40, SVU–80

CAUTIONS

D The connector of the battery can be connected with either

of CX5X and CX5Y.

D Replacement of batteries in the battery case. (Method 2)

Replace four D–size alkaline batteries in the battery case installed in

the machine.

[Attachment procedure]

(1)Check the item 1 to 3 of ”Replacement procedure”.

(2)Have four D–size alkaline batteries on hand.

(3)Loosen the screws on the battery case. Remove the cover.

(4)Replace the alkaline batteries in the case. Pay careful attention

to the polarity of the alkaline batteries.

(5)Attach the cover.

Screws

Cover

Old batteries should be disposed as ”INDUSTRIAL WASTES”

according to the regulations of the country or autonomy where your

machine has been installed.

Used batteries
