Series 0i-PC Operators manual Page 246

Operators manual

Page of 724

/ 724

PROGRAMMING15. COMPENSATION FUNCTION

B–64154EN/01

222

This scaling is not applicable to cutter compensation values and tool

offset values (Fig. 15.4 (e) ).

Cutter compensation values are not scaled.

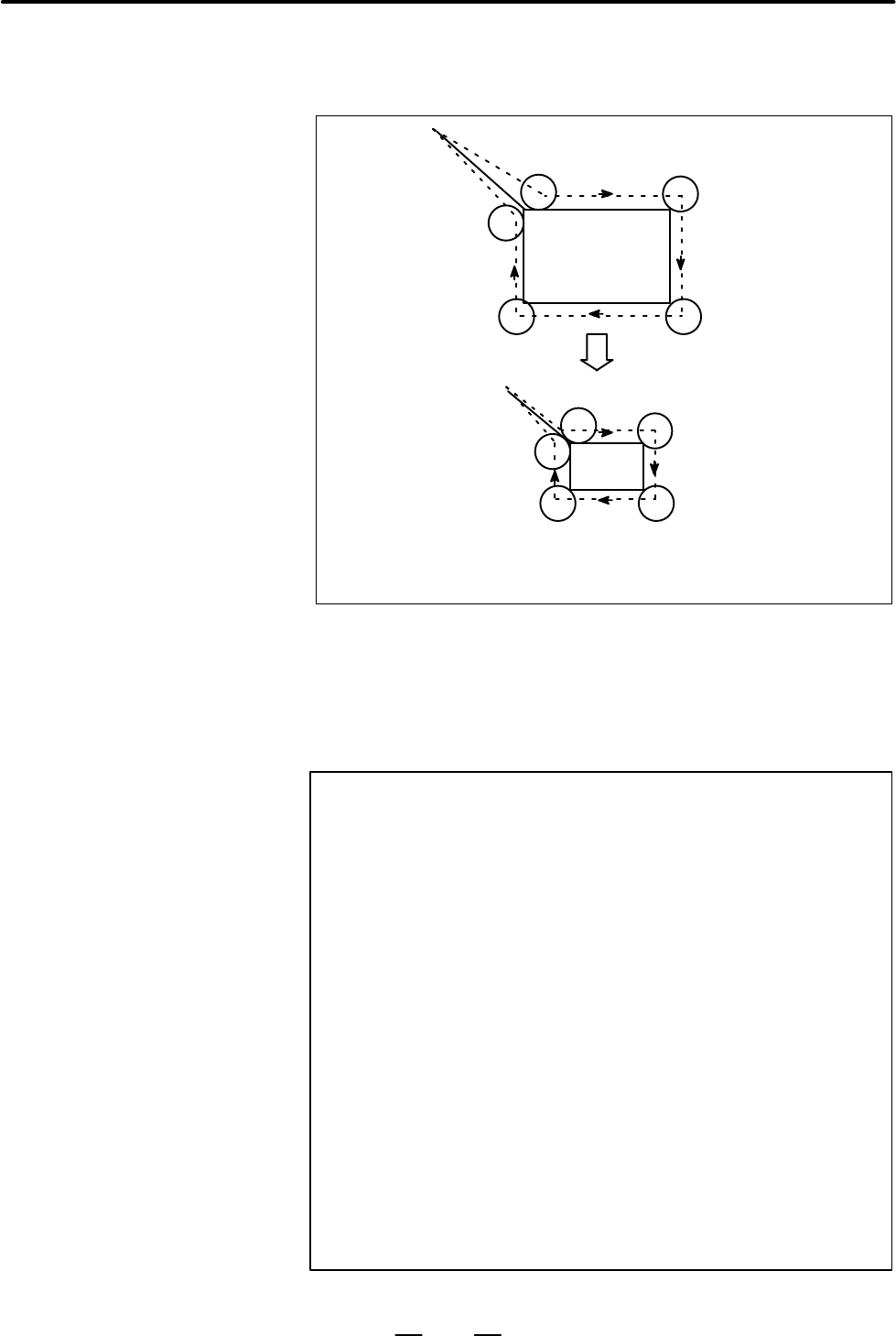

Fig. 15.4 (e) Scaling during cutter compensation

In manual operation, the travel distance cannot be increased or decreased

using the scaling function.

WARNING

1 The position display represents the coordinate value after

scaling.

2 If a parameter setting value is employed as a scaling

magnification without specifying P, the setting value at G51

command time is employed as the scaling magnification,

and a change of this value, if any, is not effective.

3 Before specifying the G code for reference position return

or coordinate system setting (G92), cancel the scaling

mode.

4 If scaling results are rounded by counting fractions of 5 and

over as a unit and disregarding the rest, the move amount

may become zero. In this case, the block is regarded as a

no movement block, and therefore, it may affect the tool

movement by cutter compensation C.

5 When a mirror image was applied to one axis of the

specified plane, the following results:

1Circular command Direction of rotation is reversed.. . . . .

2)Cutter compensation C Offset direction is reversed.. . . .

3Coordinate system rotation Rotation angle is reversed..

D Invalid scaling
