OPERATION

B–64154EN/01

12. GRAPHICS FUNCTION

615

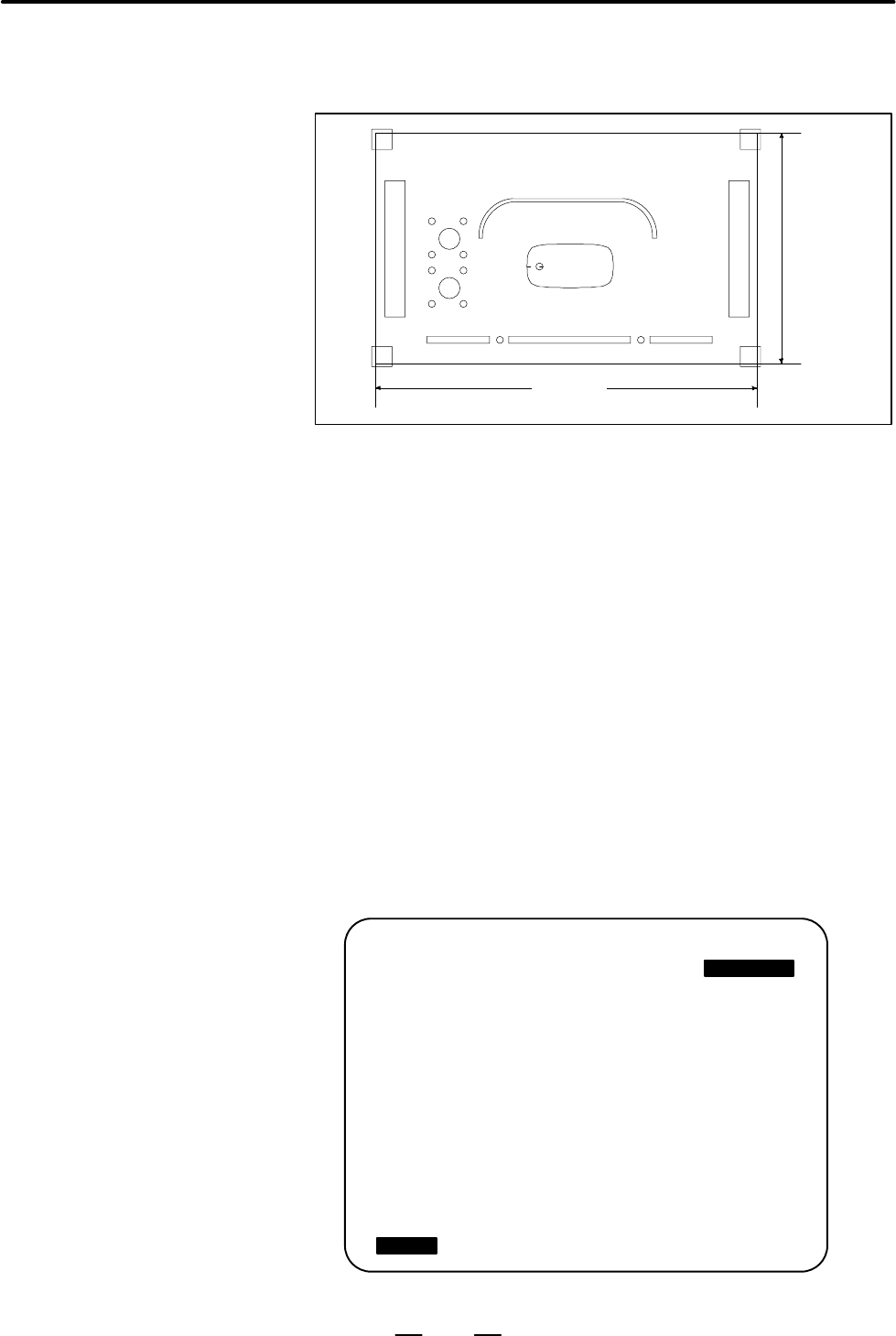

Set drawing parameters for drawing the following NC program as

follows.

650mm

1100mm

: 00002 ; (NC program)

G92X1270. Y1270. ; G76I40. J90. K8T02 ; G72X800. Y400. ;

G90G00X15. Y15. T02 ; G72X1050. Y200. ; G77I150. J90. P-5K18 ;

X1085. Y15. ; G76I40. J90. K8 ; G90X550. Y325. T04 ;

X1085. Y635. ; G90X375. Y80. T04 ; M24 ;

X15. Y635. ; X745. Y80. ; G01X500. Y325. F3000 ;

G72X150. Y80. ; X230. Y250. T05 ; X500. Y300. ;

G76I40. JOK4T03 ; G26I50. J45. K4T06 ; G03X550. Y250. I50. ;

G72X400. Y80. ; X230. Y400. T05 ; G01X750. Y250. ;

G76I40. JOK7 ; G26I50. J45. K4T06 ; G03X800. Y300. J50. ;

G72X770. Y80. ; G72X500. Y400 ; G01X800. Y350. ;

G76I40. JOK4 ; G77I150. J180. P-5. K18T04 ; G03X750. Y400. I-50. ;

G72X50. Y200. ; ½ G76I15. JOK20 ; ½ G01X550. Y400. ;

G03X500. Y350. J-50. ;

G01X500. Y325. ;

M25 ;

G00G90X1270. Y1270. M02 ;

GRAPHIC PARAMETER O1234 N00200

AXES ( 0,1,2,3,4 ) P= 0

RANGE (MAX.)

X= 1150000 Y= 700000 Z= 0

RANGE (MIN.)

X= –100000 Y= –100000 Z= 0

SCALE K= 10

GRAPHIC CENTER

X= 525000 Y= 300000 Z= 0

PROGRAM STOP N= 0

AUTO ERASE A= 1

MEM **** *** *** 16:19:18

[ PARAM ][ GRAPH ][ ][ ][ ]

12.5

EXAMPLE
