Series 0i-PC Operators manual Page 302

Operators manual

Page of 724

/ 724

PROGRAMMING16. CUSTOM MACRO

B–64154EN/01

278

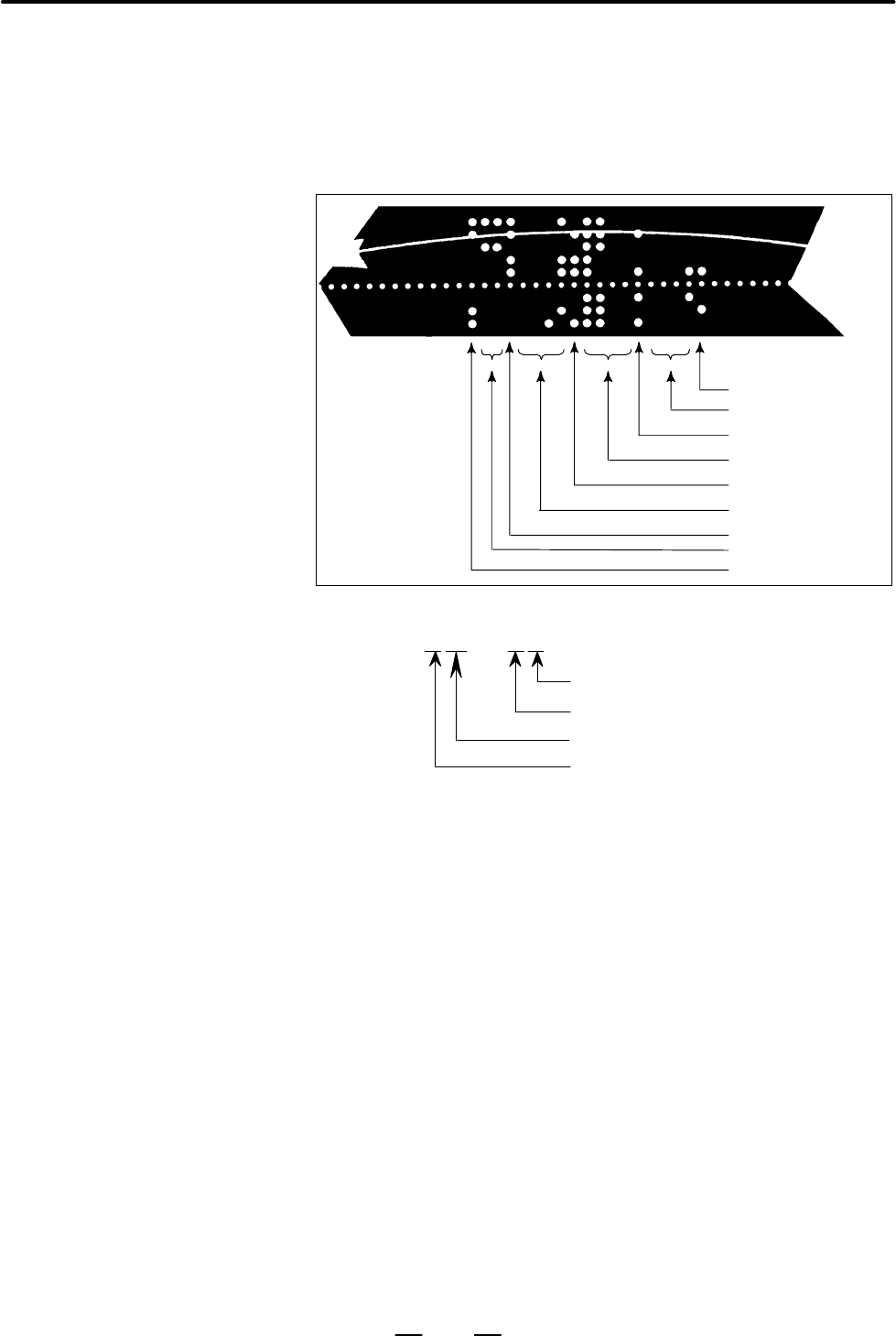

Example)

BPRINT [ C** X#100 [3] Y#101 [3] M#10 [0] ]

Variable value

#100=0.40596

#101=–1638.4

#10=12.34

12 (0000000C)

–1638400(FFE70000)

110 (0000019A)

Space

DPRNT [ a #b [ c d ] … ]

Number of significant decimal places

Number of significant digits in the integer part

Variable

Character

The DPRNT command outputs characters and each digit in the value of

a variable according to the code set in the settings (ISO).

(i) For an explanation of the DPRNT command, see Items (i), (iii), and

(iv) for the BPRNT command.

(ii)When outputting a variable, specify # followed by the variable

number, then specify the number of digits in the integer part and the

number of decimal places enclosed in brackets.

One code is output for each of the specified number of digits, starting

with the highest digit. For each digit, a code is output according to the

settings (ISO). The decimal point is also output using a code set in the

settings (ISO).

Each variable must be a numeric value consisting of up to eight digits.

When high–order digits are zeros, these zeros are not output if PRT

(bit1 of parameter 6001) is 1. If PRT is 0, a space code is output each

time a zero is encountered.

When the number of decimal places is not zero, digits in the decimal

part are always output. If the number of decimal places is zero, no

decimal point is output.

When PRT (bit 1 of parameter 6001) is 0, a space code is output to

indicate a positive number instead of +; if PRT is 1, no code is output.

D Data output command
