PROGRAMMING7. COORDINATE SYSTEM

B–64154EN/01

The six workpiece coordinate systems specified with G54 to G59 can be

changed by changing an external workpiece zero point offset value or

workpiece zero point offset value.

Three methods are available to change an external workpiece zero point

offset value or workpiece zero point offset value.

(1) Inputting from the MDI panel (see III–11.4.7)

(2) Programming by G10 or G92

(3) Changing an external workpiece zero point offset value (refer to

machine tool builder’s manual)

ZOFS2

ZOFS3

ZOFS4

ZOFS5

ZOFS1

ZOFS6

EXOFS : External workpiece zero point offset value

ZOFS1AZOFS6 : Workpiece zero point offset value

EXOFS

Workpiece

coordinate

system 1 (G54)

Workpiece

coordinate

system 2 (G55)

Workpiece

coordinate

system 3 (G56)

Workpiece

coordinate

system 4 (G57)

Workpiece

coordinate

system 5 (G58)

Workpiece

coordinate

system 6 (G59)

Machine zero

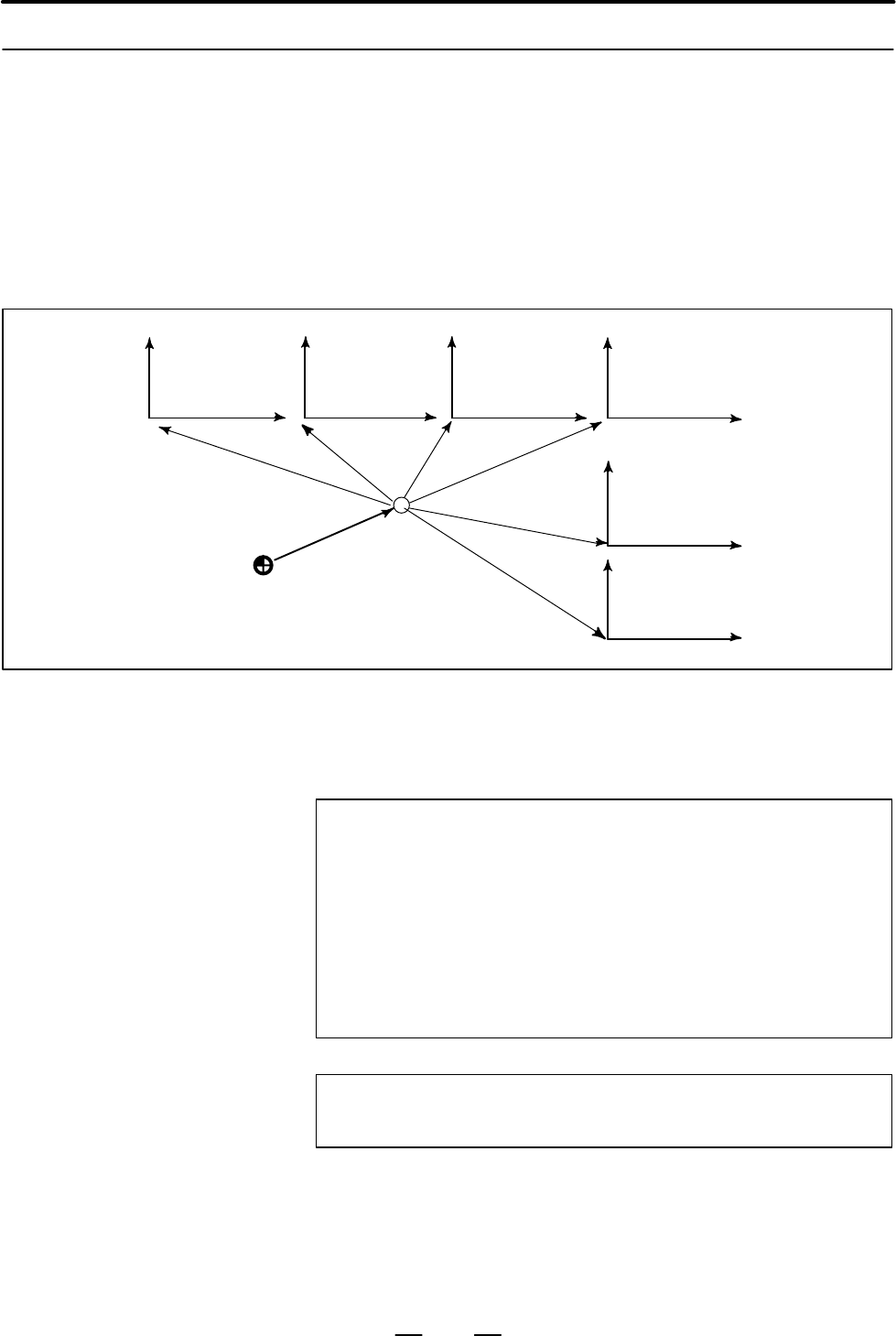

Fig. 7.2.3 Changing an external workpiece zero point offset value or workpiece zero point offset value

G10 L2 Pp _;

p=0 : External workpiece zero point offset value

p=1 to 6 : Workpiece zero point offset value correspond to

workpiece coordinate system 1 to 6

: For an absolute command (G90), workpiece zero point

offset for each axis.

For an incremental command (G91), value to be added

to the set workpiece zero point offset for each axis (the

result of addition becomes the new workpiece zero

point offset).

G92 _;IP

With the G10 command, each workpiece coordinate system can be

changed separately.

7.2.3

Changing Workpiece

Coordinate System

Format

D Changing by G10

D Changing by G92

Explanations

D Changing by G10
