9.DIAGNOSIS B-64004EN/02
- 124 -
9.1 MCC OFF TEST STATUS SCREEN

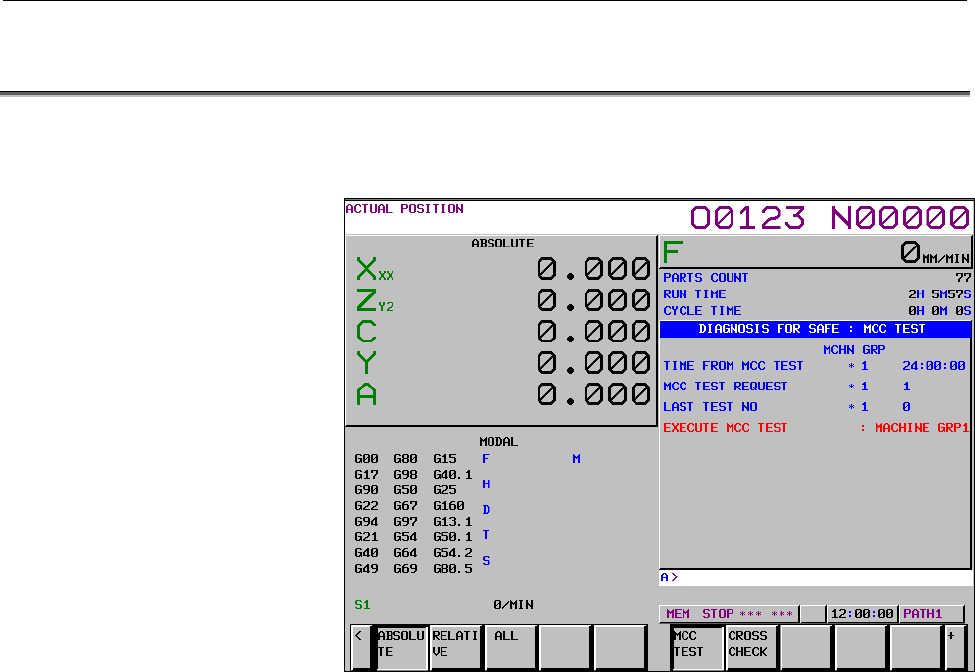

By pressing [MCC TEST] soft key, the following MCC OFF TEST
STATUS screen is displayed.
The following items are displayed for each machine group.
Passing time from the last MCC OFF TEST
Passing time from the last MCC OFF TEST is displayed.
Count of time is stopped when reaching 24:00:00.
24:00:00 is displayed at power-on.
MCC OFF TEST execution request
The CNC system notifies that it is necessary to select MCC OFF
TEST mode and check whether MCC off signal (*MCF) works
normally or not. When the MCC OFF TEST execution request
signal is turned to “1”, select MCC OFF TEST mode and execute
MCC OFF TEST as soon as possible.
Last number of test sequence
The current sequence number of MCC OFF TEST is displayed.
If MCC OFF TEST is finished normally, “0” is displayed. Refer
to the section of “MCC OFF TEST” for further detail.
Message
When the power is turned on or 24 hours passes from the last
MCC OFF TEST, this screen is selected and the message
“EXECUTE MCC TEST” is displayed.
Previous page
Next page
