Series 0i/0i Mate - Model B Parameter manual Page 45

Parameter manual

Page of 346

/ 346

B–63840EN/03

4. DESCRIPTION OF PARAMETERS

WZR

1201

#6 #5

AWK

#4 #3 #2

ZCL

#1 #0

[Data type] Bit

ZCL Local coordinate system when the manual reference position return is

performed

0 : The local coordinate system is not canceled.

1 : The local coordinate system is canceled.

AWK When the workpiece zero point offset value is changed

0 : The absolute position display changed when the next bufforing block

is performed.

1 : The absolute position display is changed immediately.

Changed value is valid ofter baffering the next block.

WZR Upon reset, the workpiece coordinate system is:

0 : Not returned to that specified with G54

1 : Returned to that specified with G54

1202

#6 #5 #4

G52

RLC

G50

EWS

EWD

[Data type] Bit

EWD The shift direction of the workpiece coordinate system is:

0 : The direction specified by the external workpiece zero point offset

value

1 : In the opposite direction to that specified by the external workpiece

zero point offset value

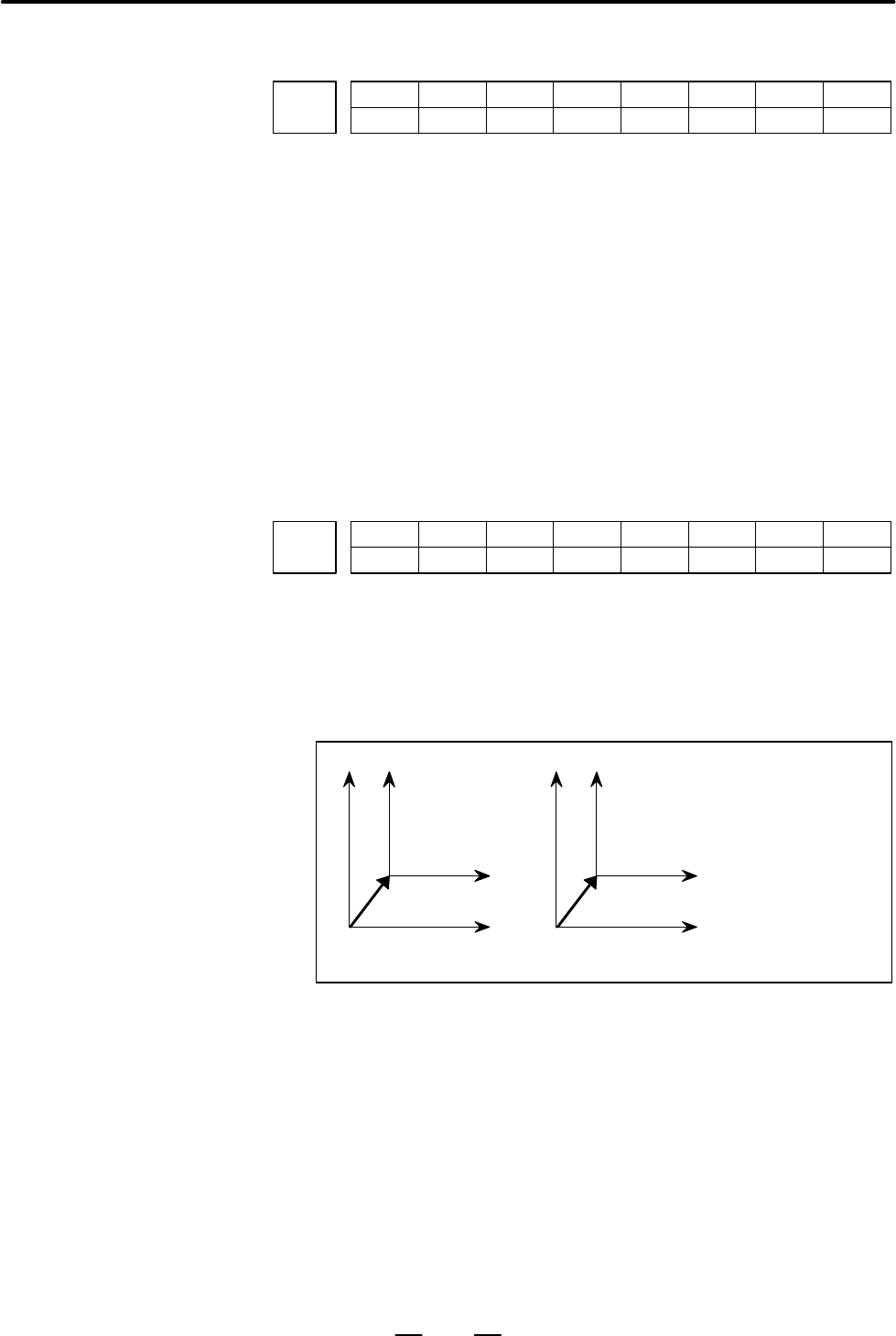

EWD=0

EXOFS : External workpiece zero point offset value

(Shifted workpiece

coordinate system)

EXOFS

XXX

–EXOFS

EWD=1

(Original workpiece

coordinate system)

EWS Shift value of the workpiece coordinate system and external workpiece

zero point offset value are

0 : Stored in the separate memory areas.

1 : Stored in the same memory area, that is, the shift and the offset values

are the same.

G50 If the G50 command for setting a coordinate system (or the G92 command

in G command system B or C) is specified,

0 : G50 is executed and no alarm is issued.

1 : G50 is not executed and a P/S alarm (No. 010) is issued.

RLC Local coordinate system is

0 : Not cancelled by reset

1 : Cancelled by reset

4.9

PARAMETERS OF

COORDINATES
