4. DESCRIPTION OF PARAMETERS

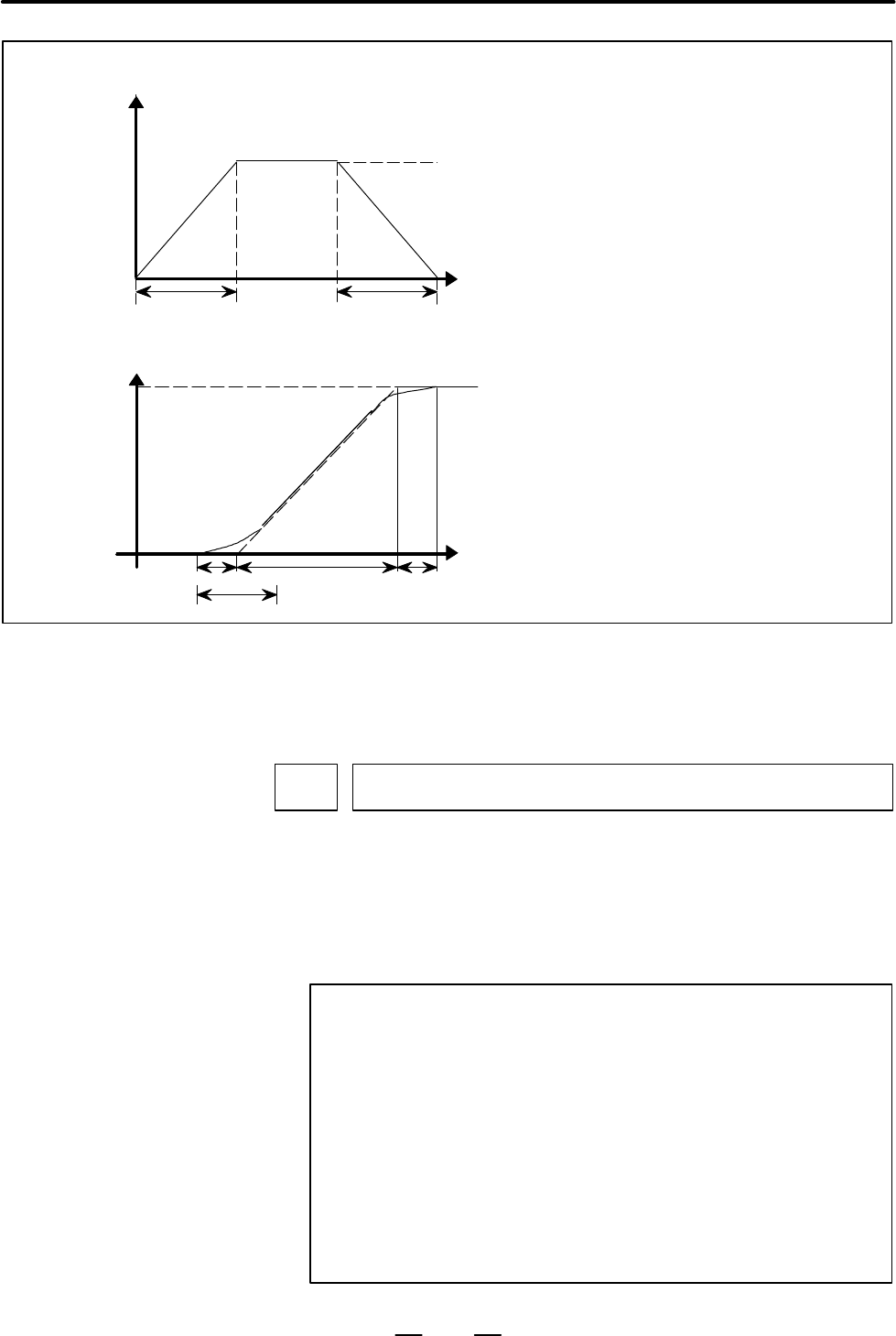

Speed

Rapid traverse feed rate

Time

T: Time constant for linear

acceleration/deceleration

Speed

Rapid

traverse rate

Time

: Set a time constant used for lin-

ear acceleration/deceleration

: Set a time for rounding.

Total time=T

+ T

Time for linear=T

– T

Time for rounding part=T

Set the value when the rapid traverse rate is 100%. If it is under 100%, the

total time is reduced. (Constant acceleration method)

The value of T

is determined from the torque of motor. Usually set the

value of T

to 24 ms ir 32 ms.

1621

Time constant t T

used for bell–shaped acceleration/deceleration in rapid tra-

verse for each axis

[Data type] Word axis

[Unit of data] ms

[Valid data range] 0 to 512

Specify time constant T

used for bell–shaped acceleration/deceleration

in rapid traverse for each axis.

NOTE

1 This parameter is effective when the function of bell–shaped

acceleration/deceleration in rapid traverse is provided. Set

parameter No.1620 to time constant T

used for

bell–shaped acceleration/deceleration in rapid traverse, and

set this parameter to time constant T

For details of time constants T

and T

, see the description

of parameter No.1620.

2 When this parameter is set to 0, linear acceleration/

deceleration is applied in rapid traverse. The setting in

parameter No.1620 is used as a time constant in linear

acceleration/deceleration.
