Open CNC Screen Display Function Operators manual Page 21

Operators manual
B-63164EN/04 1.SETUP
- 5 -
1.1.3 Uninstalling the CNC Screen Display Function
This section explains how to uninstall the CNC screen display
function.
Procedure for uninstalling the CNC screen display function
1. Choose the [Start] menu.
2. Choose [Settings], then choose the [Control Panel] command.
3. Execute [Add/Remove Programs].

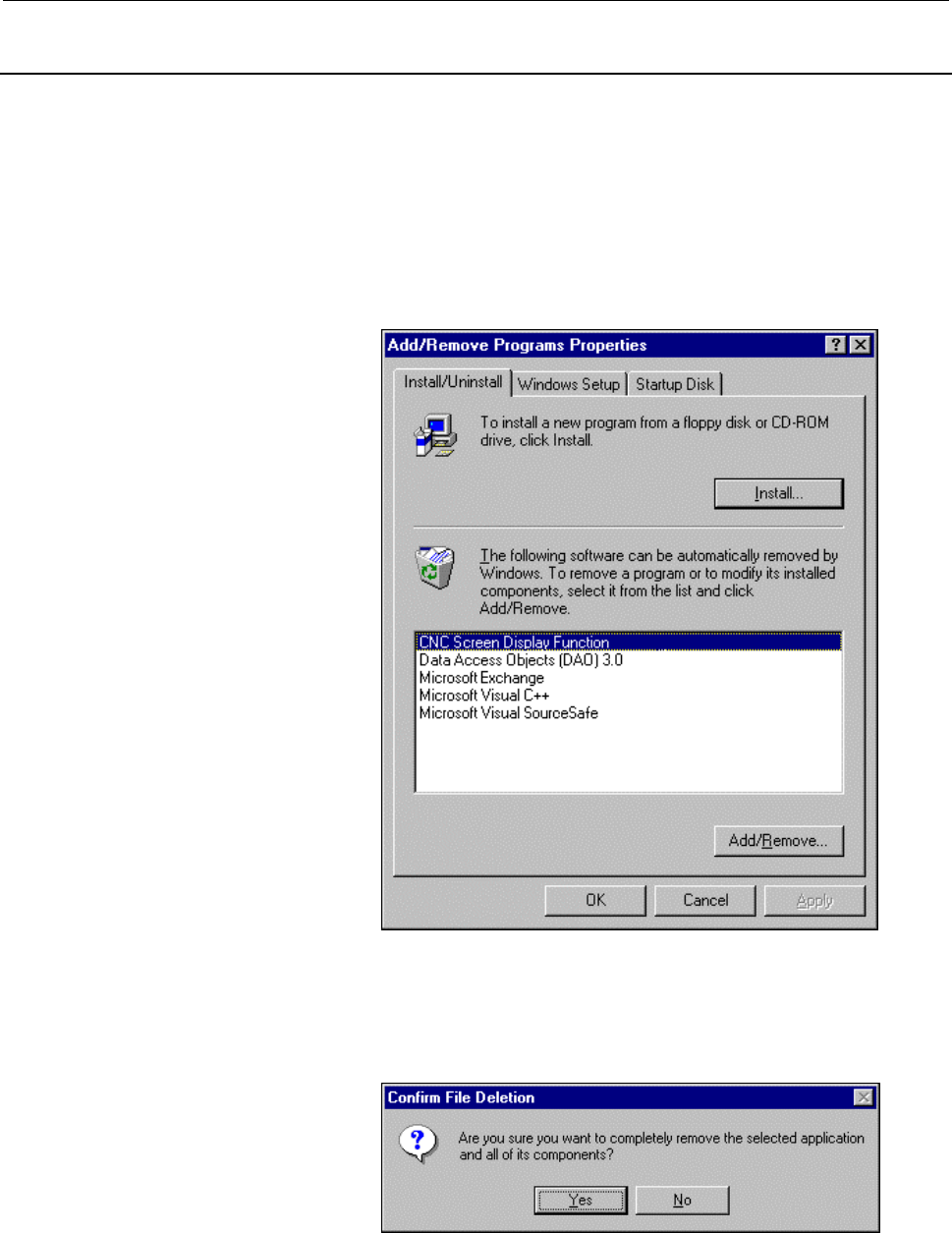

The Add/Remove Programs Properties screen appears.
4. Choose the CNC Screen Display Function.
5. Choose the <Add/Remove...> button.
The uninstall function starts, asking you whether you really want
to uninstall the program.
6. To uninstall the program, choose the <Yes> button.
When the CNC screen display function has been uninstalled normally,
the function is deleted from the Windows program menu.
