Open CNC Screen Display Function Operators manual Page 27

Operators manual
B-63164EN/04 2.OPERATION
- 11 -
2.1 START AND TERMINATION (HSSB VERSION)
This section explains how to start and terminate the HSSB version of
the CNC screen display function, and explains the points to be noted
when the function is started.
See Section 2.2, "Start and Termination (Ethernet Version)," for
explanations about how to start and terminate the Ethernet
version of the CNC screen display function.
2.1.1 Starting the CNC Screen Display Function
The following explains the procedure for starting the CNC screen
display function and explains the points to be noted when the function
is started.
Procedure
1. Choose the [Start] menu.
2. Choose the [Programs] command.
3. Choose the [CNC Screen Display Function] command.

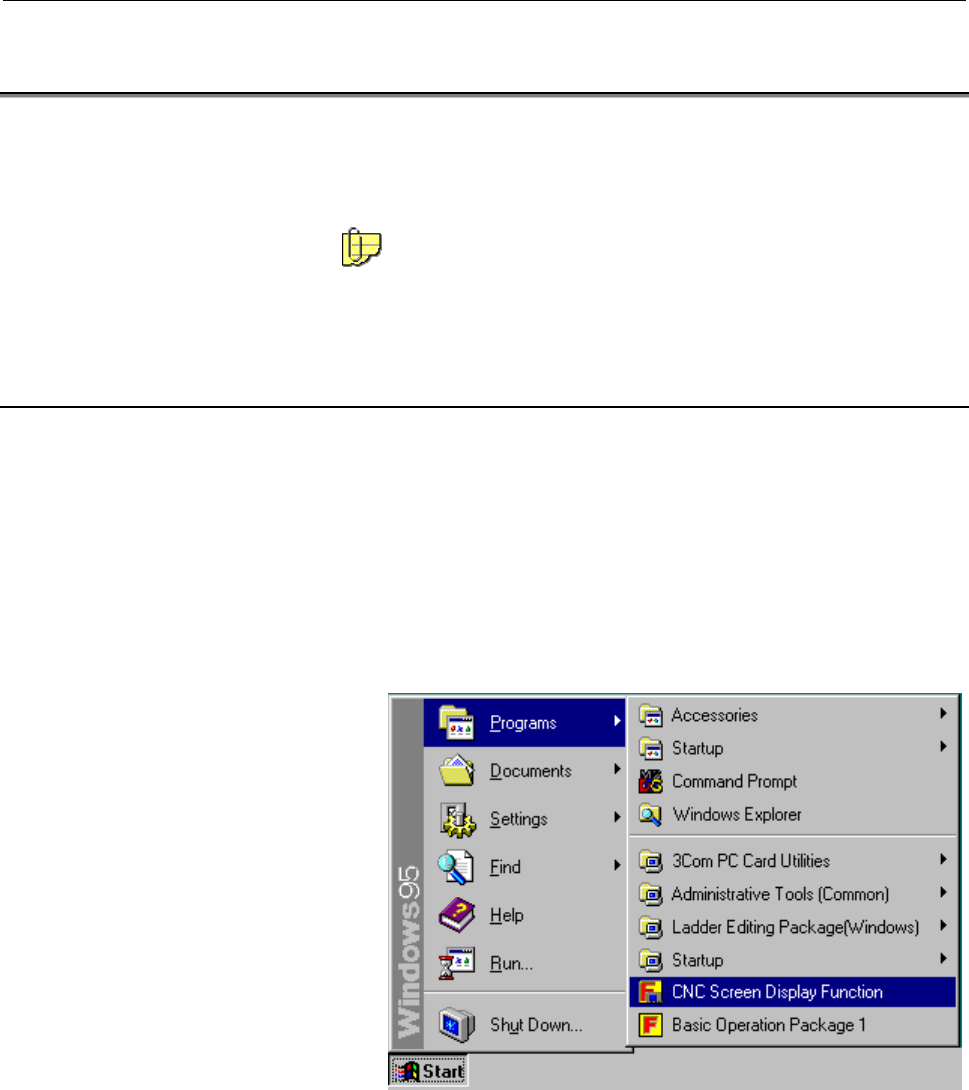

The following CNC Screen Display Function screen appears:
Previous page
Next page
