Open CNC Screen Display Function Operators manual Page 38

Operators manual
2.OPERATION B-63164EN/04
- 22 -

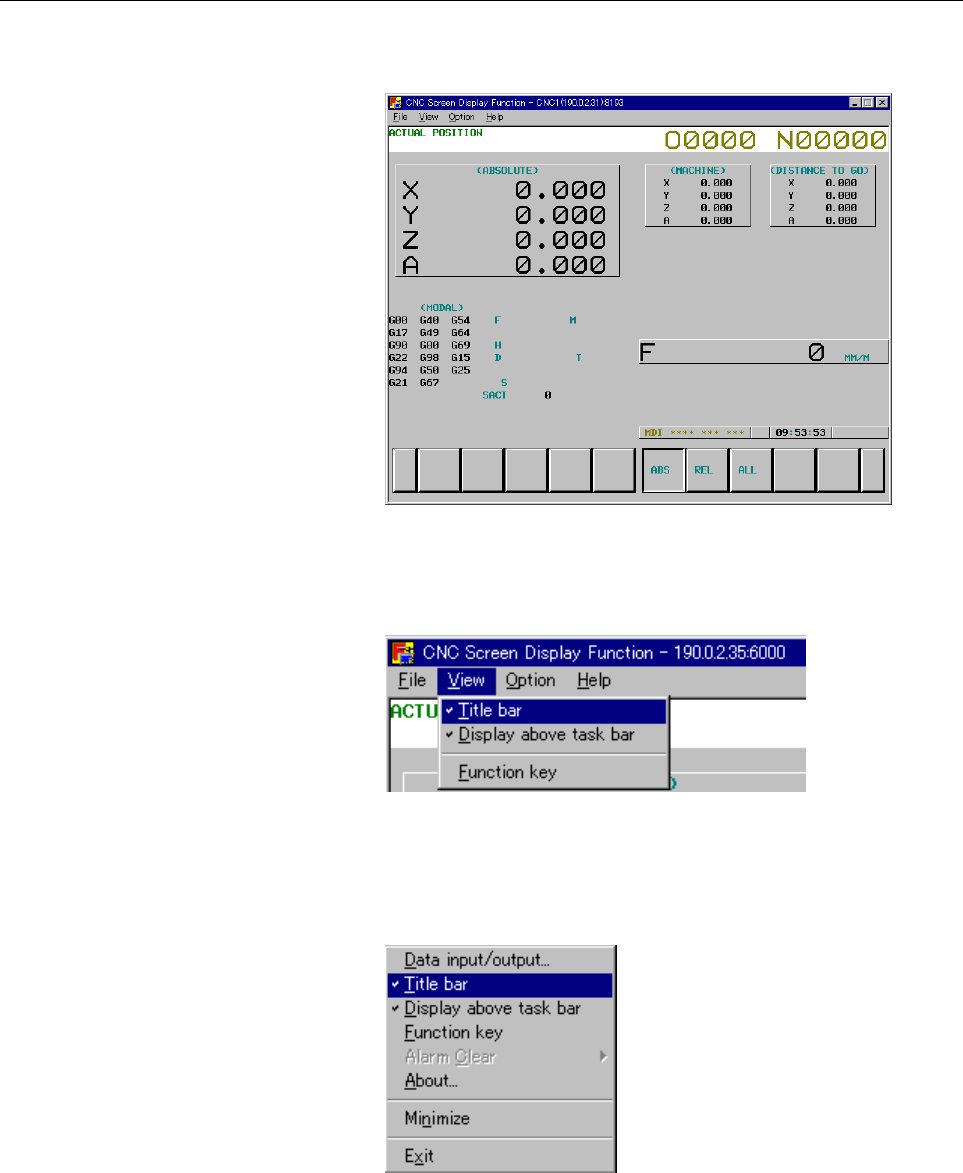

When the CNC is connected successfully, the CNC Screen
Display Function screen appears.
6. When the resolution of the display is 640 × 480 dots, disable the
display of the title bar by choosing the [Title bar] from the
submenu of [View] in the menu bar, to maximize the size of the
CNC screen on the display.
7. To display the title bar, perform the following:
When using the mouse : Click the right button.
When using the keyboard : [Shift]+[F10]
A pop-up menu, shown below, appears. Choose [Title bar].
8. By choosing [Display above the task bar] from the submenu of
[View] in the menu bar, to the CNC screen displays above the
task bar. (Edition 1.4 or later)
