Open CNC Screen Display Function Operators manual Page 37

Operators manual
B-63164EN/04 2.OPERATION
- 21 -

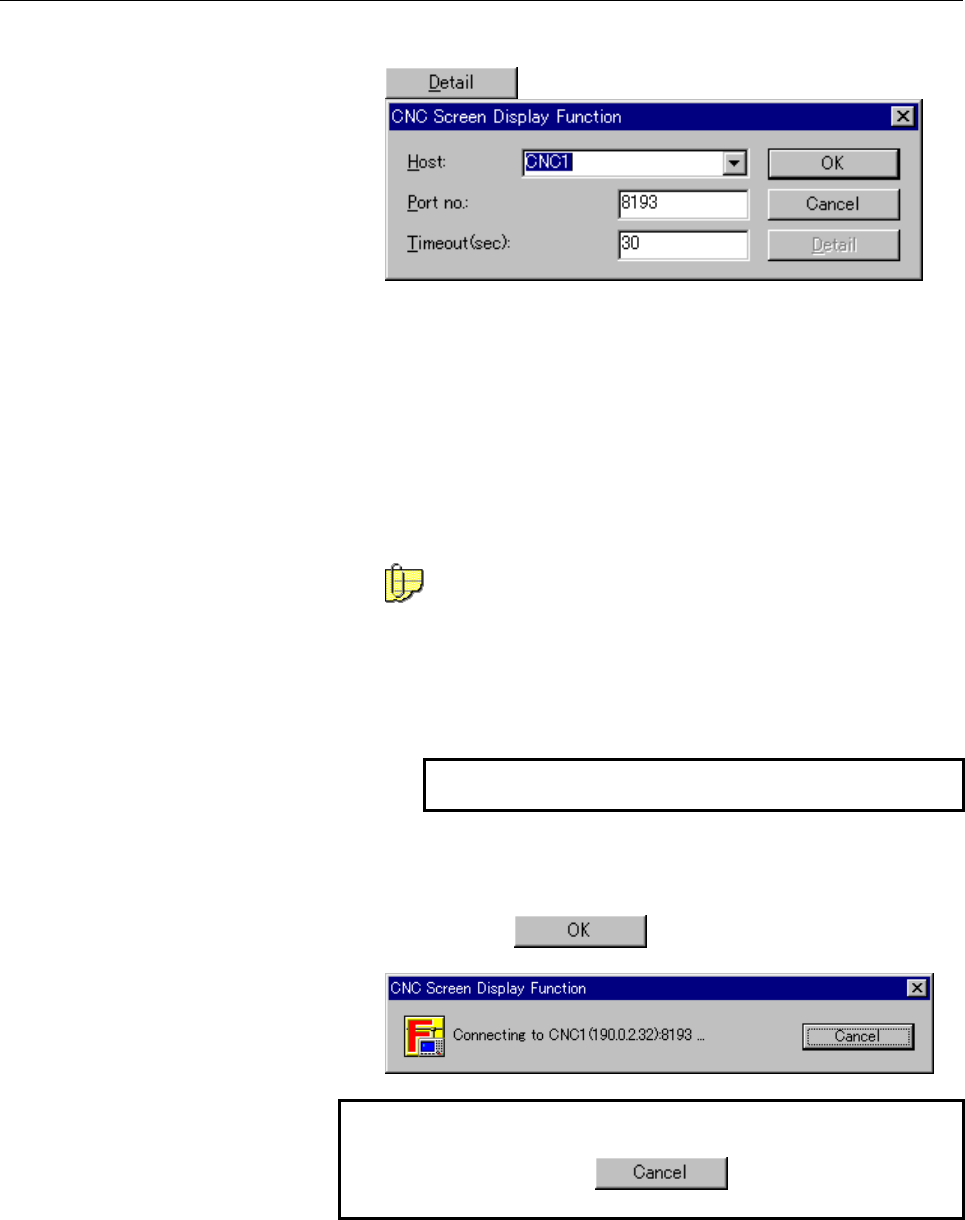

When the function is started for the first time or the
is selected, the screen changes to the following:
On this screen, enter the following items.
Host : Specify a host name (such as "CNC1") or an IP
address (such as "190.0.2.31").
Port no. : Specify the port number for the FOCAS1
(DNC1)/Ethernet function.
Timeout : Specify a timeout value for graphic data
transmission/reception in seconds. Entering 0
disables timeout processing, causing an infinite
wait.
A host name and port number can be specified using
arguments on the command line. When these arguments are
used, the above screen to specify the destination does not
appear. The format of the command line specification is as
follows:
CNCSCRNE /H=<host-name>:<port-number>
/T=<timeout-value (by default, 30)>
The /H and /T arguments can be specified at the same time.
5. Choosing the
button causes the screen to change
to the following:
NOTE
It may take several minutes for the Ethernet version
to start. Choosing discontinues the
start sequence.
Previous page
Next page
