Open CNC Screen Display Function Operators manual Page 59

Operators manual
B-63164EN/04 3.SETTING
- 43 -
3.2 SETTING ANIMATED SIMULATION FOR TURNING
This section explains how to set the data for animated simulation for
turning.
The setting screen is displayed for the Series 160i-T/TT, 180i-T/TT,
and 210i-T (including the two-path control function).
The animated simulation for turning is valid for i series MODEL B or
later.
To modify the data for animated simulation for turning, use the
procedure explained below.

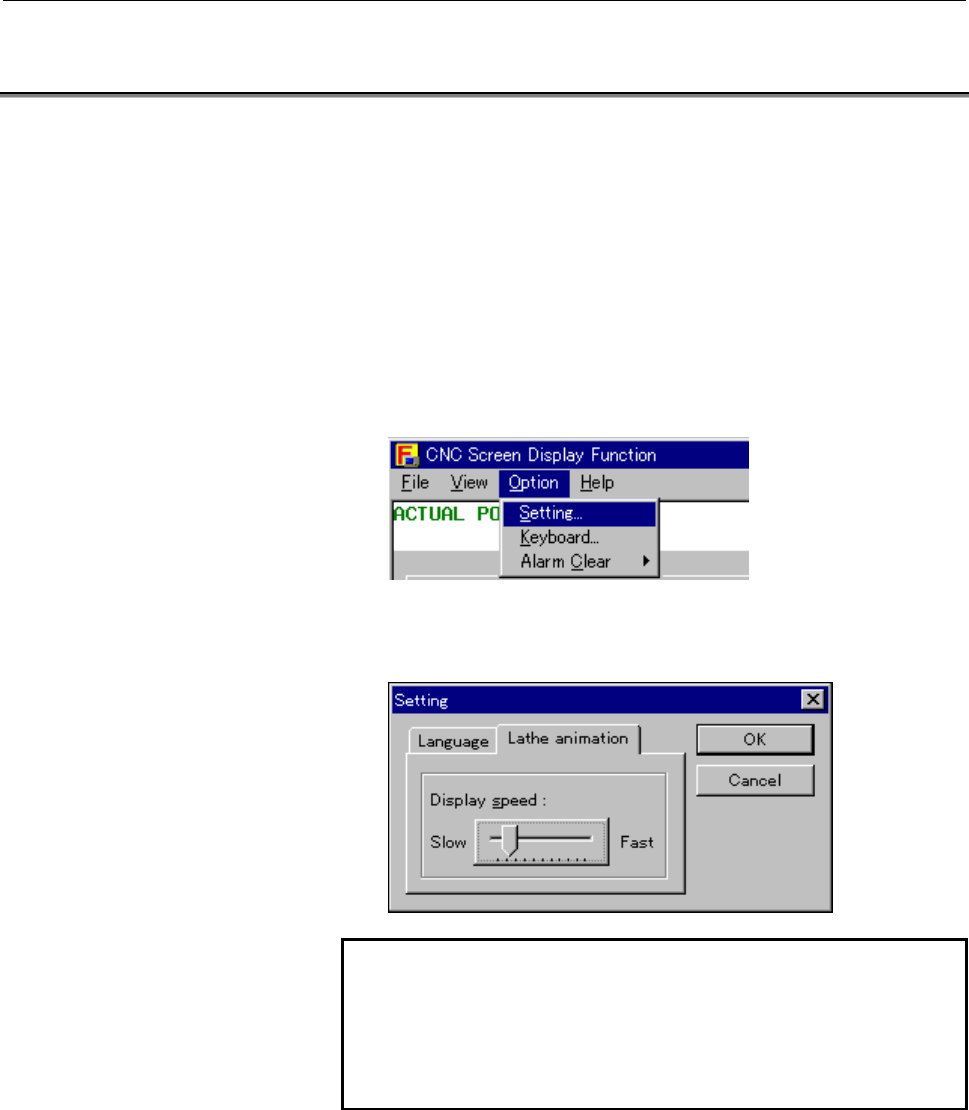

1. Choose [Setting...] from the submenu of [Option] on the menu
bar.
2. The Setting screen appears. Select [Lathe animation]. Set the
display speed of animated simulation for turning, then choose
the <OK> button.
NOTE
The display speed of animated simulation for
turning is indicated as a number of dots. The
display is refreshed each time the tool moves the
specified number of dots. The lower the speed, the
smoother the animation appears.
