Open CNC Screen Display Function Operators manual Page 60

Operators manual
3.SETTING B-63164EN/04
- 44 -
3.3 CHANGING KEYBOARD ASSIGNMENT
This section explains the assignment of the MDI keys to the full
keyboard.
Changes in keyboard assignment are reflected to the key definition
file (keymat file) in the directory where the CNC screen display
function has been installed. This file is installed as read-only. Before
modifying its contents, change the file attribute.
l Changing an assignment
To change the standard assignment, use the procedure explained
below. In the explanation, an example for changing from
[Ctrl]+[Num-9] to [PROG] is used.

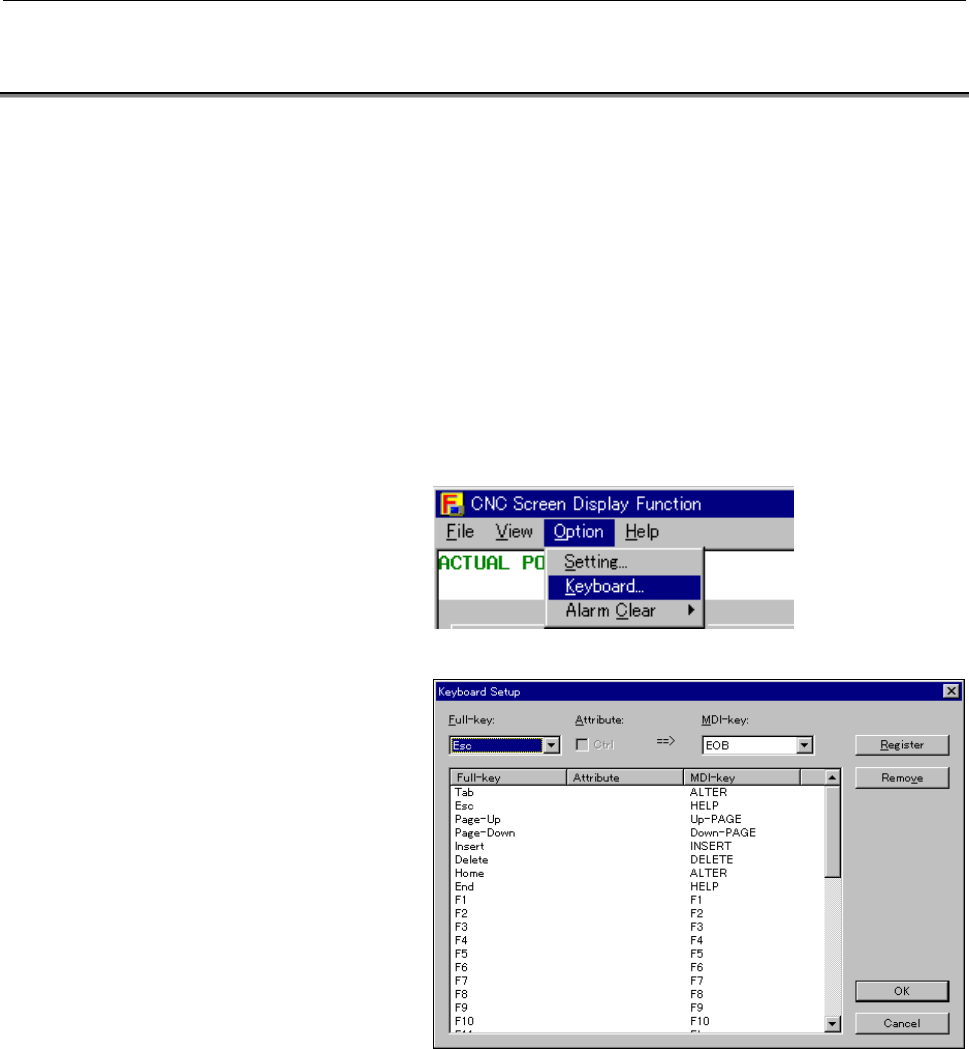

1. Choose [Keyboard...] from the submenu of [Option] on the
menu bar.
2. A list of the current assignments is displayed on the
Keyboard Setup screen, as follows:
