2.2 START AND TERMINATION (ETHERNET VERSION)
This section explains how to start and terminate the Ethernet version
of the CNC screen display function, and explains the points to be
noted when the function is started.
See Section 2.1, "Start and Termination (HSSB Version)," for
explanations about how to start and terminate the HSSB version
of the CNC screen display function.
2.2.1 Start
The following explains the procedure for starting the CNC screen
display function from the Windows start menu, and explains the
points to be noted when the function is started.
Procedure
1. Choose the [Start] menu.
2. Choose the [Programs] command.
3. Choose CNC Screen Display Function (Ethernet) to start it.

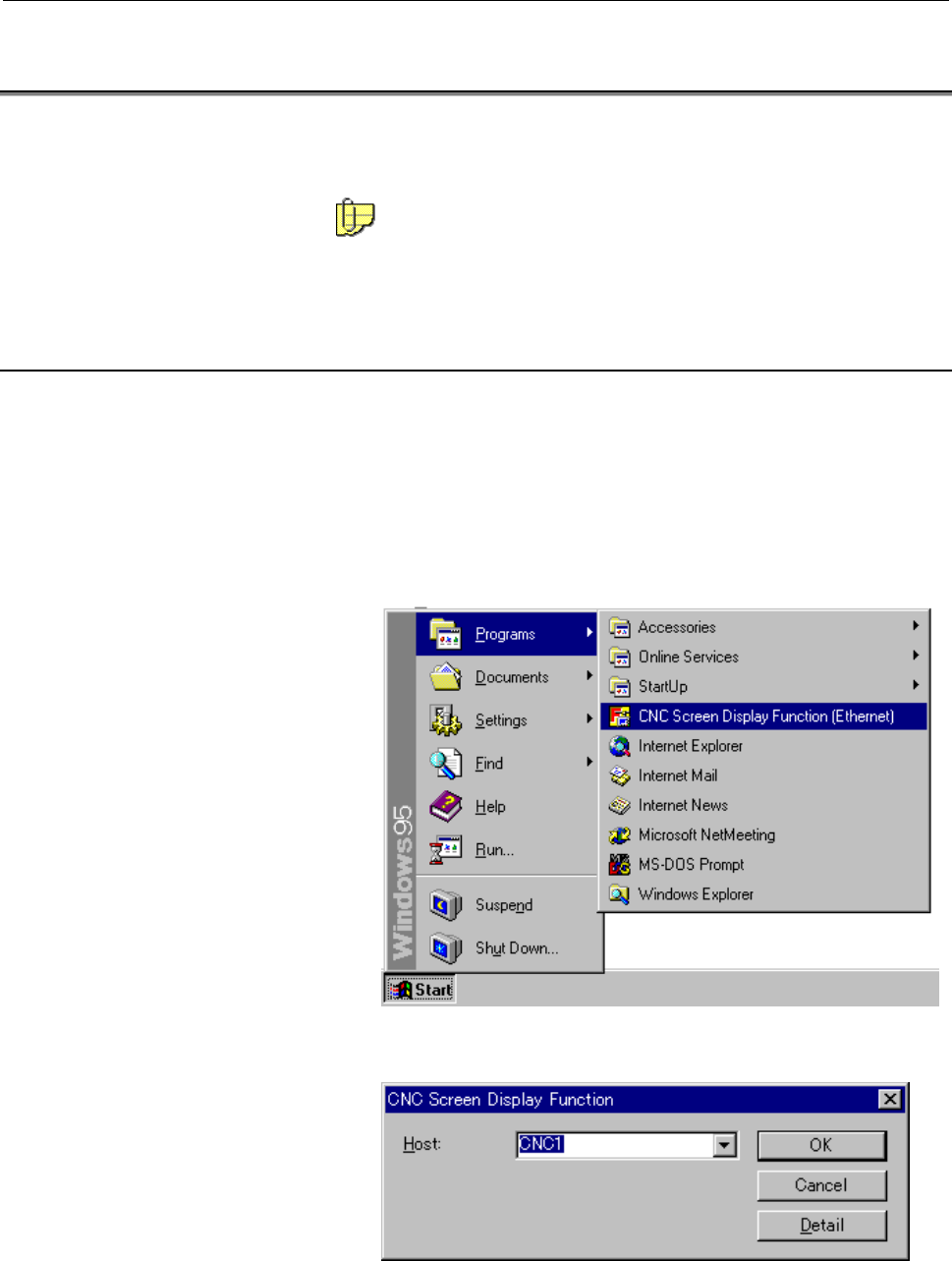

4. When the CNC screen display function is started, the following
screen appears to specify the destination:
Previous page
Next page
