Open CNC Screen Display Function Operators manual Page 43

Operators manual
B-63164EN/04 2.OPERATION
- 27 -
2.2.4 Termination by Means of the PMC Signal
The following explains how to terminate the CNC screen display
function by means of the PMC signal.
Not using this function does not influence the operation of the
CNC screen display function. Use it as required.
Turning on a specified machine signal terminates the CNC screen
display function. To specify the machine signal, follow the procedure
below.

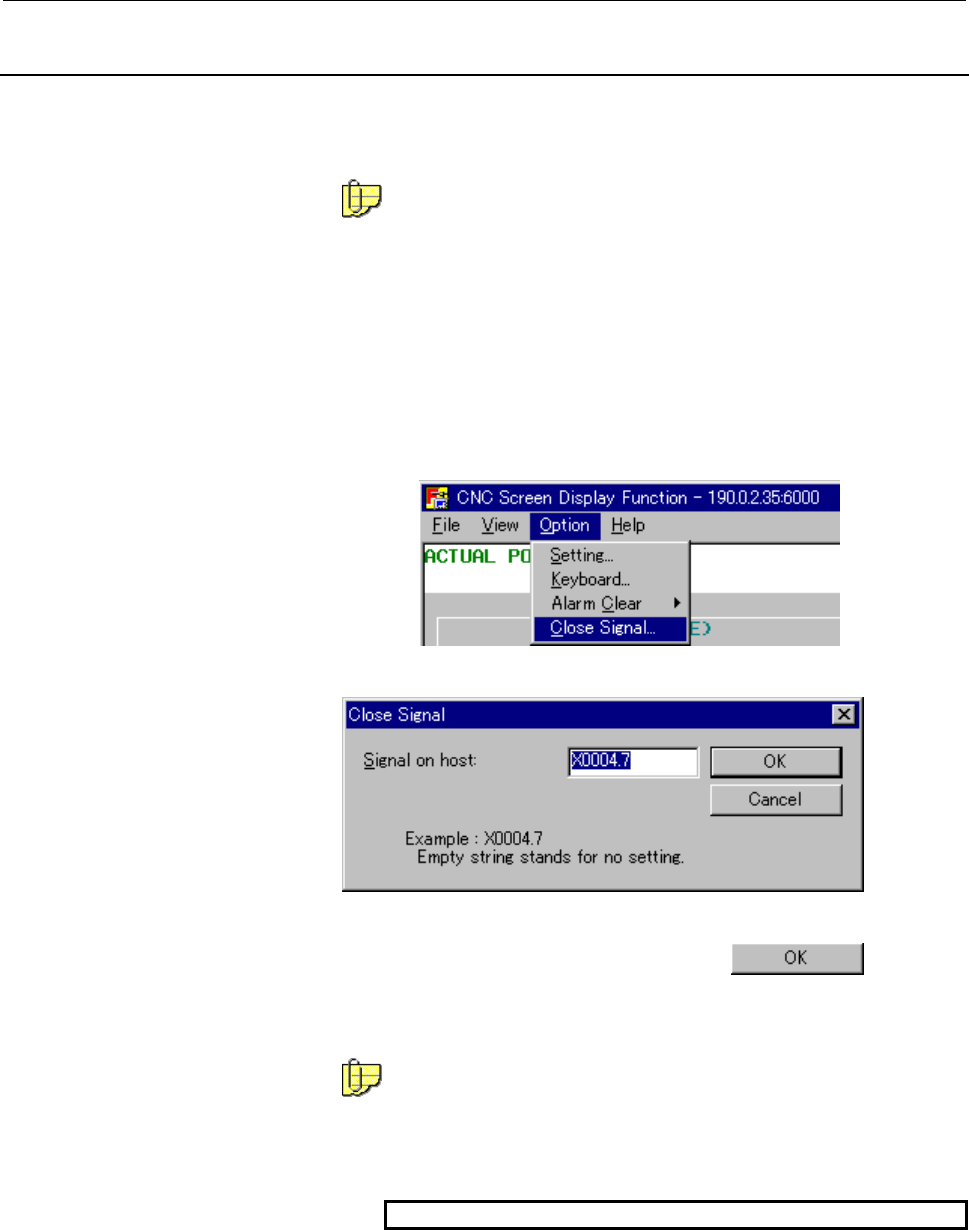

1. Choose the [Close Signal…] from the submenu of [Option] in
the menu bar.
2. The Close Signal dialog box appears.
3. Enter the target PMC signal in the Signal on host text box, using
the following format, then choose the
button.
<signal-address>.<bit-position> Example) X0004.7
The close signal can be specified also using an argument on the
command line.
The format of the command line specification is as follows:
CNCSCRNE /S=<signal-address>.<bit-position>
The /H, /T, and /S arguments can be specified simultaneously.
