C.SETTING USING A PERSONAL COMPUTER SUPPLEMENT B-62924EN/04

- 218 -

(5) Select a slave station for remote downloading from Slave

Selection List under DDB Selection List on Screen C-8. Screen

C-10 is displayed.

These parameters are used as the slave parameters to be remotely

downloaded.

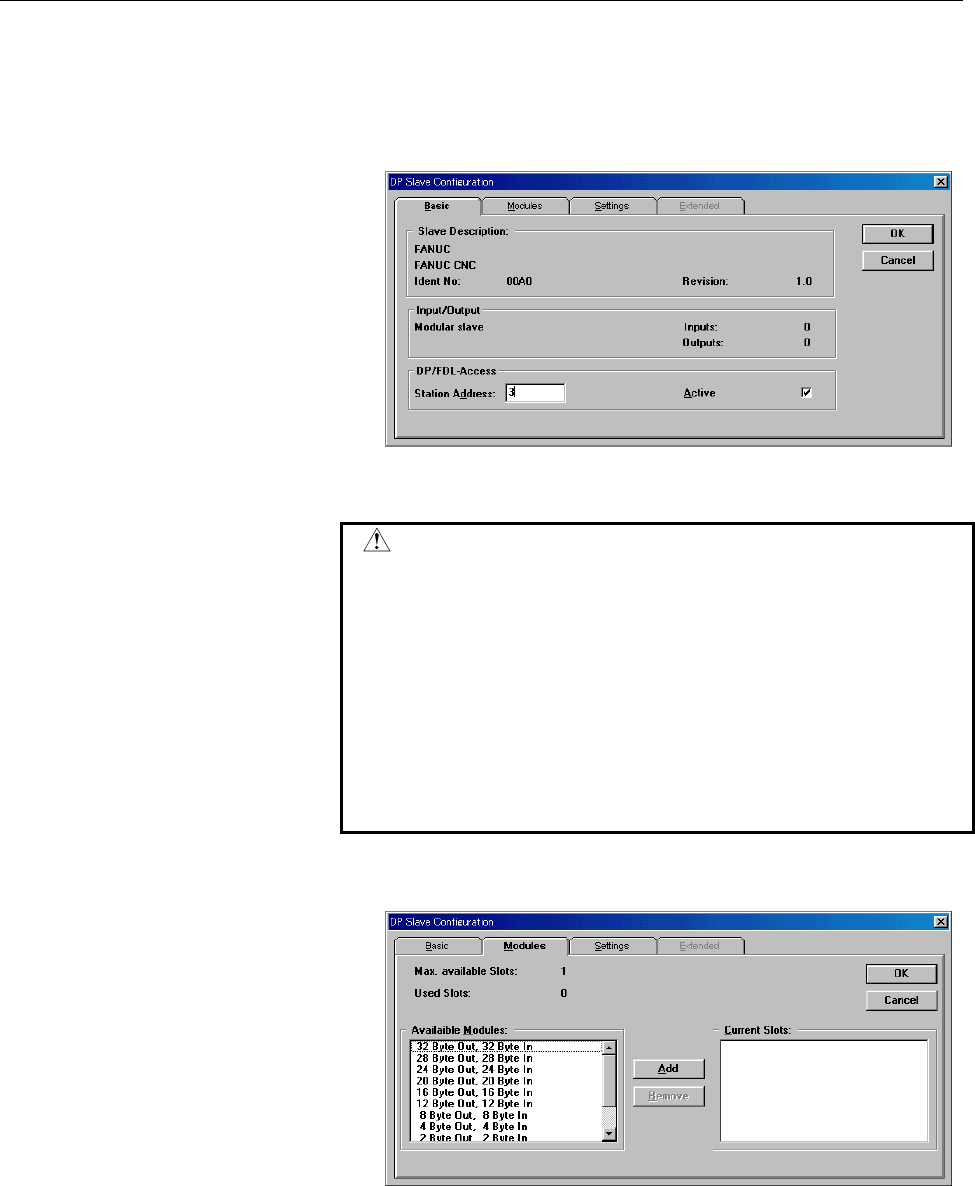

Screen C-10

On Screen C-10, set a value for Station Address.

CAUTION

On Screen C-10, there are an item for setting

Configuration Data on the Modules tab and an item

for setting User Param Data on the Settings tab.

Note that there is the following restriction on setting

of these two parameters for a FANUC master

station:

configuration-data-length + user-param-data-length

≤ 204 bytes

These parameter lengths are described in the GSD

file for each slave station. See the GSD file.

(6) Select the Modules tab on Screen C-10. Screen C-11 is

displayed.

Screen C-11

On this screen, select a module name from Available Modules

and click Add. The selected module is added to Current Slots.

This parameter is equivalent to slave parameter CONFIG DATA

for a FANUC master station.
