C.SETTING USING A PERSONAL COMPUTER SUPPLEMENT B-62924EN/04

- 220 -

Screen C-13

CAUTION

Pay careful attention to the following points:

- The station number specified for Station Address on

Screen C-13 is used when PROFIBUS-DP

Configurator is attached to the network. For this

reason, do not specify the station numbers of the

FANUC master station and other master and slave

stations on the network.

- Set the same baud rate as for the FANUC master

station or another master station on the network.

- When the baud rate is 19.2 or 9.6 kbps, set 10000

[msec] for Poll Timeout of PROFIBUS-DP

Configurator. At this time, the values set for Poll

Timeout for the FANUC master station or another

master station on the network need not be changed.

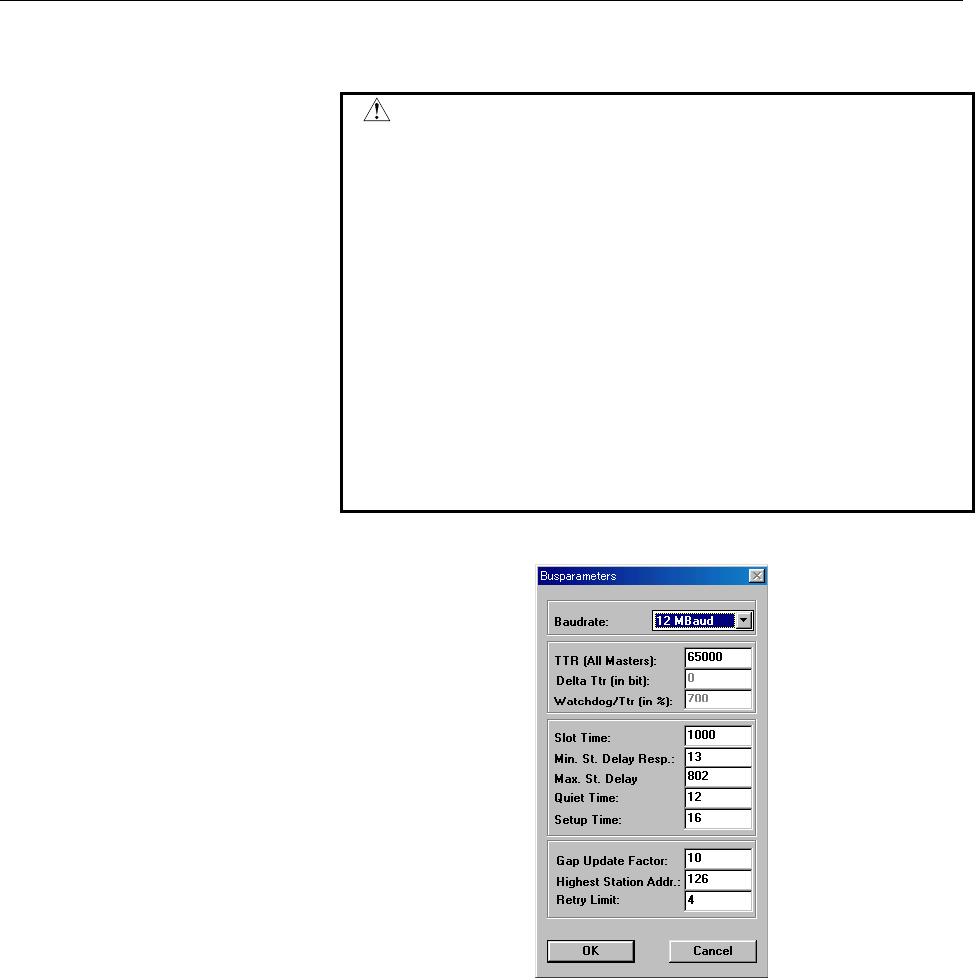

(9) Then, click Edit on Screen C-13. Screen C-14 is displayed.

Screen C-14
