B-62924EN/04 OPERATION 2.Series 15i-A

- 71 -

2.2.3 Setting for Address Assignment

Set address assignment on the slave parameter screen described above

(Screen 2-2 (a)).

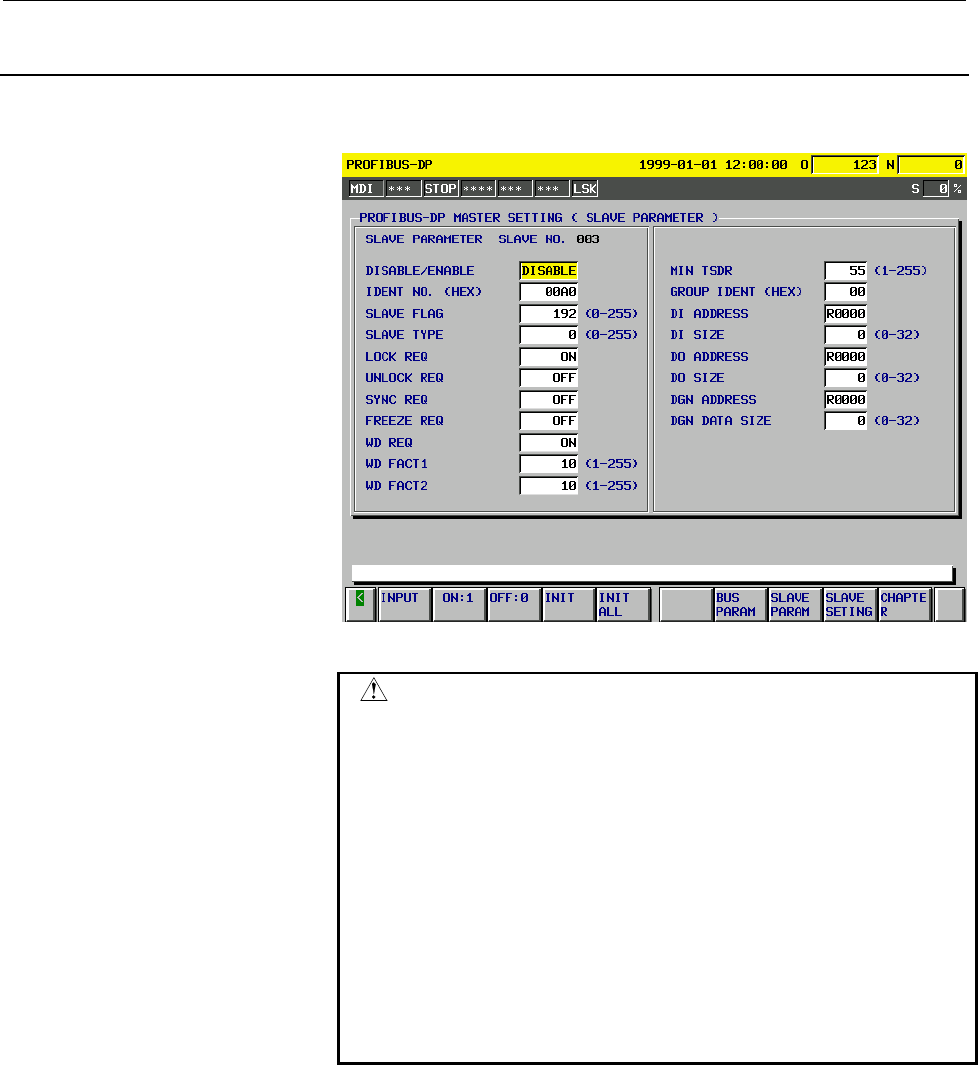

Screen 2-2(a)

CAUTION

When assigning addresses, pay careful attention to the

following points:

1 Assign addresses to all DP-Slaves that are set to

ENABLE in the slave parameters.

2 Be careful not to assign duplicate addresses to a

DP-Slave.

3 Ensure that a specified DI data area, DO data area,

and diagnose data area do not overlap one another.

4 Ensure that the specified addresses do not overlap

an area used for a ladder program.

5 Use the R area only. (When using PMC-SB5, be

careful not to exceed R1499. When using PMC-SB6

or PMC-NB6, be careful not to exceed R2999.)
