2 CPU 3-path Control Function Specifications Supplement to Manual Page 29

Supplement to Manual
FANUC Series 16i-TA
2 CPU 3-path control function
Specifications
A-63406E
08 00.09.01 T.Nakazato Modified (viii)
07 00.06.23 T.Nakazato Modified (vii) H. kochiya
01 97.04.09 T.Nakazato Newly registered T. Masuda
ED. DATE DESIG. DESCRIPTION
TITLE
DRAW.NO.
SHEET

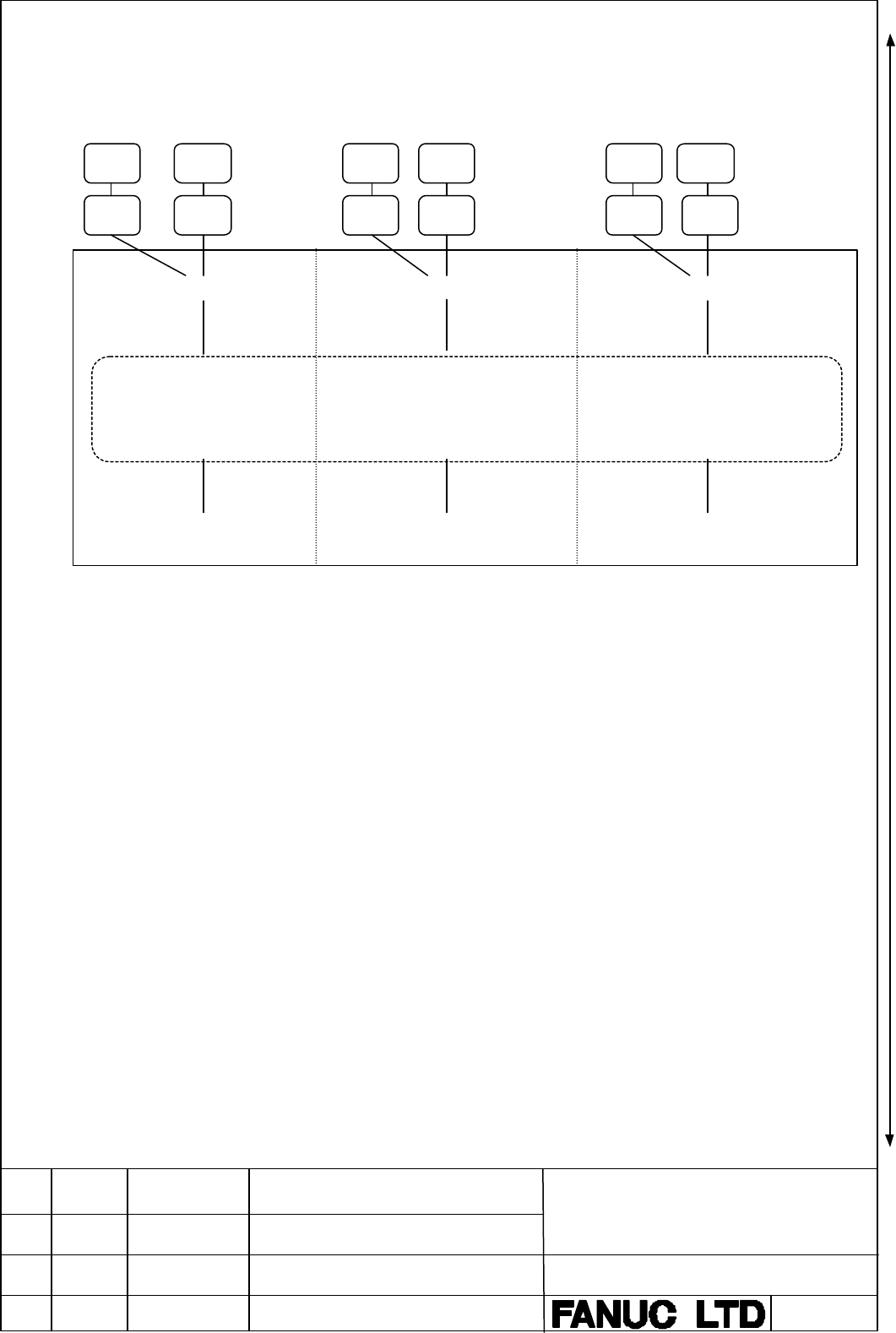

(b) The relation between the path and the spindle feedback (the state in 3-spindle control and all
spindles connected)
SP1
#1
SP2
#1
SP1
#2
SP2
#2
SP1
#3
SP2
#3
PC1
#1
PC2
#1
PC1
#2
PC2
#2
PC1
#3
PC2
#3
Path 1 0 1 Path 2 0 1 Path 3 0 1
PC2SLC
#1
PC2SLC
#2
PC2SLC
#3
SLPCA
#1
SLPCB
#1
SLPCA
#2
SLPCB
#2
SLPCA
#3
SLPCB
#3
1 0 ------ (i) 1 0 ------ (i) 1 0 --------- (i)
0 1 ------ (ii) 0 1 ------ (ii) 0 1 --------- (ii)
1 1--------(iii) 1 1--------(iii) 1 1 --------- (iii)
(i) (ii) (iii)
Feedback 1 Feedback 2 Feedback 3
(i): Feedback from the spindle connected on path 1
(ii): Feedback from the spindle connected on path 2
(iii): Feedback from the spindle connected on path 3
(5) The option functions concerning spindles
The option functions concerning spindles are available on all paths, but there are some cases that
they are not used on all paths by circumstances of a machine. The following functions have the
parameters to annul themselves in each path.
• Spindle serial output
• Spindle analog output
• Cs contouring control
• Spindle positioning
• Multi-spindle control
For details, refer to parameter No.3702.
