2 CPU 3-path Control Function Specifications Supplement to Manual Page 53

Supplement to Manual
FANUC Series 16i-TA
2 CPU 3-path control function
Specifications
A-63406E
08 00.09.01 T.Nakazato Modified (viii)
07 00.06.23 T.Nakazato Modified (vii) H. kochiya
01 97.04.09 T.Nakazato Newly registered T. Masuda
ED. DATE DESIG. DESCRIPTION
TITLE
DRAW.NO.
SHEET
Example)
O0001 ;
M5 S0 F0 ;
G53 X0 Z0 ; (1)
G1 W100 M3 S100 F1. ; (2)
G0 U50. W50. ; (3)
M2 ;
Therefore operate M,S,T codes in the reverse movement after confirming that “DEN” signal
becomes ON.
(b) Non linear interpolation type positioning
In the non linear interpolation type positioning, the route is different between in forward
movement and in reverse movement.
(c) Threading in forward movement
The manual handle is invalid in executing a threading block. Threading is always executed at

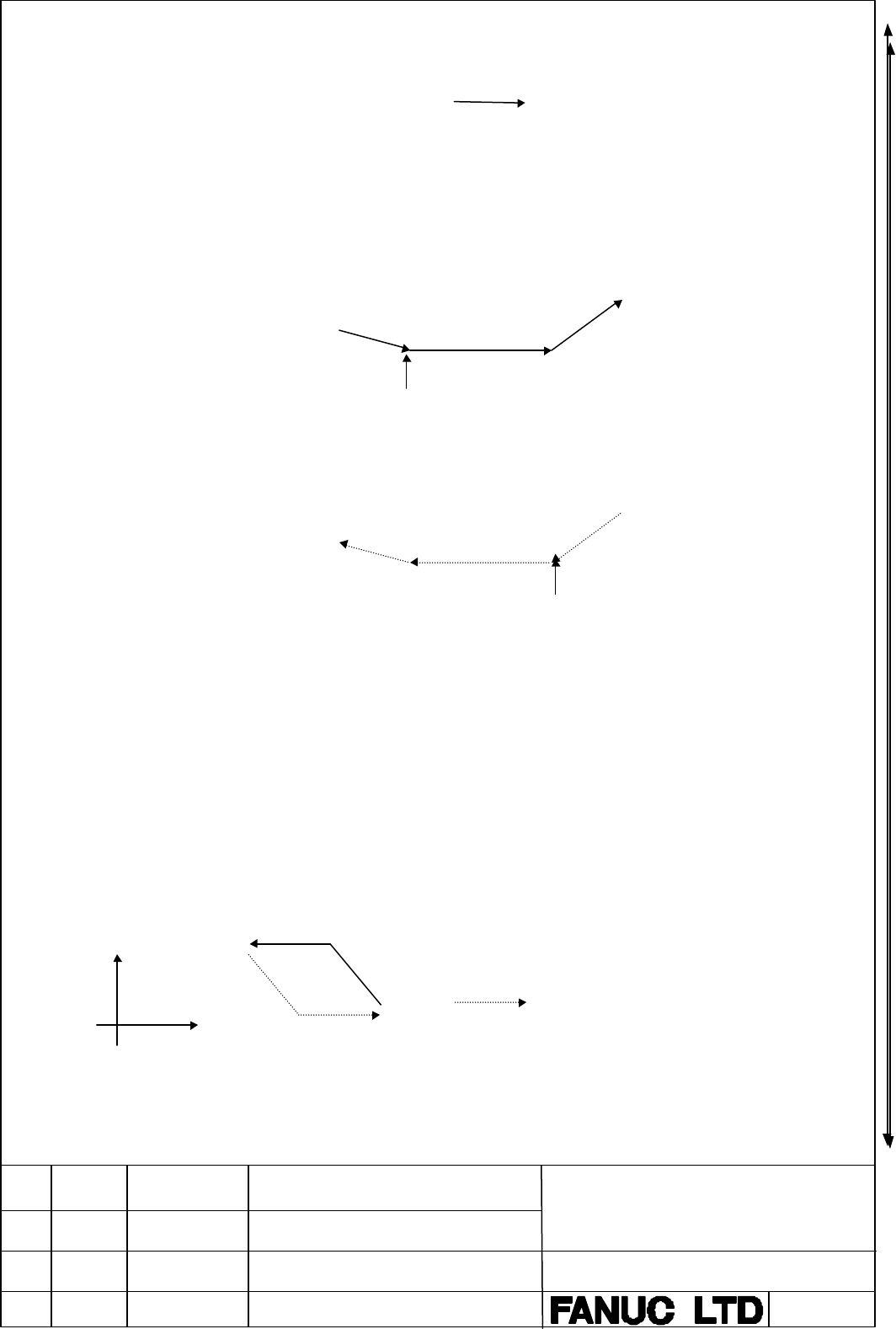

[Forward movement]
(1) G53 X0 Z0
(3) G0 U50 W50.
(2) G1 W100.
M3S100F1.
[Reverse movement]
(1) G53 X0 Z0
(3) G0 U50. W50.
(2) G1 W100.
M5S0F1.
X
The route of forward movement
The route of reverse movement
Z
