2 CPU 3-path Control Function Specifications Supplement to Manual Page 43

Supplement to Manual
FANUC Series 16i-TA
2 CPU 3-path control function
Specifications
A-63406E
08 00.09.01 T.Nakazato Modified (viii)
07 00.06.23 T.Nakazato Modified (vii) H. kochiya
01 97.04.09 T.Nakazato Newly registered T. Masuda
ED. DATE DESIG. DESCRIPTION
TITLE
DRAW.NO.
SHEET
Facing axis
Parallel axis
1
Parallel axis 2
n
s
s
l
l
n
(a)
(b)
(c)

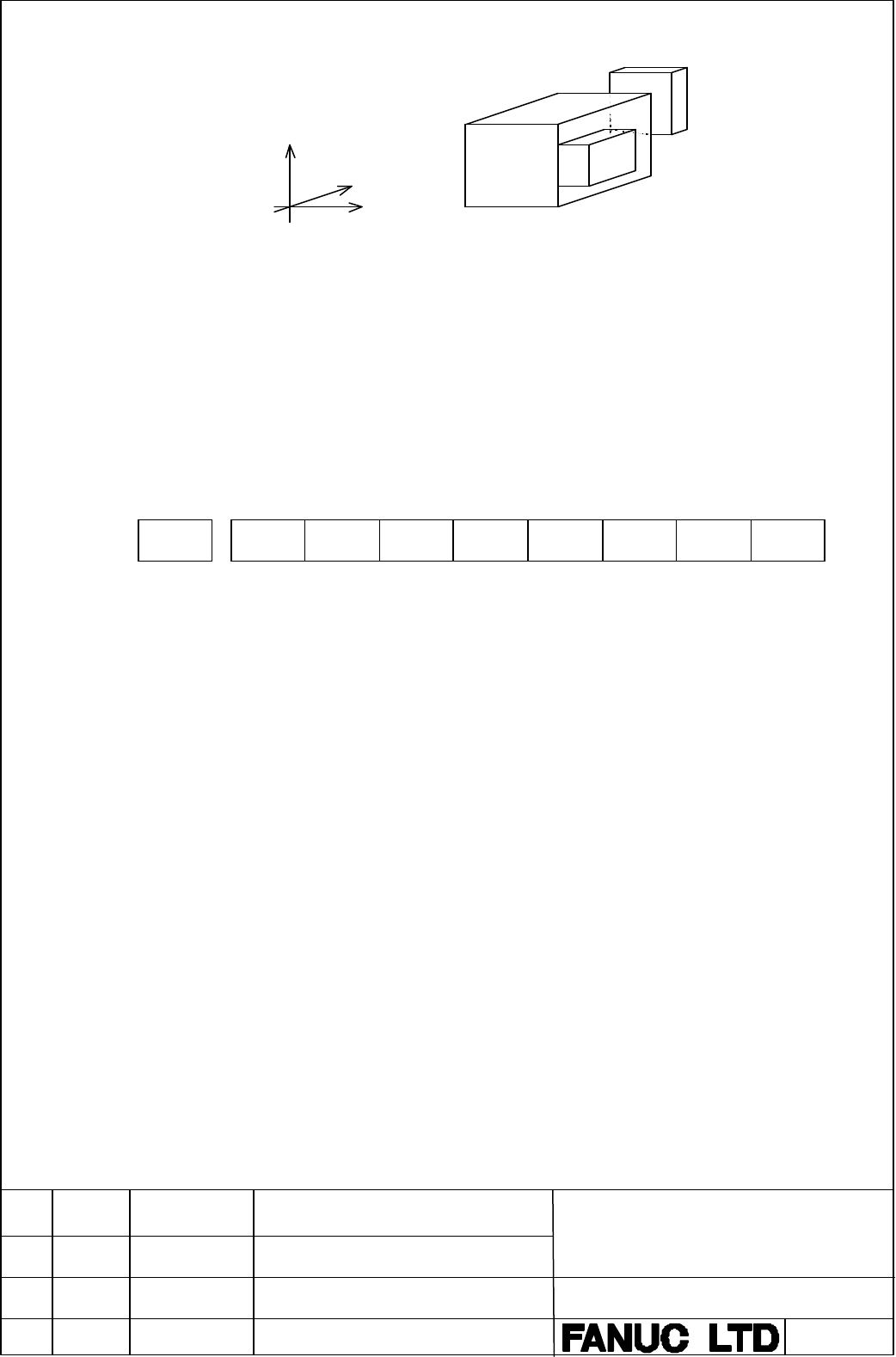

The rectangular parallelepiped which composes one tool post is maximum three rectangular
parallelepiped and each rectangular parallelepiped is defined by the former specifying of the
rectangular parallelepiped. Therefore, in the example of the figure above, set the six points ( l, s,
and n ) for rectangular parallelepipeds (a), (b) and (c). And this setting is done for three tool posts.
2.5.3 DI/DO signals
Address #7 #6 #5 #4 #3 #2 #1 #0
G0292 ITFC3 ITFC2 ITFC1
[Classification]
input signals
[Function] These signals select whether the tool post interference check is executed or not.
[Operation] When each ITFC* signal is 1, interference check is executed between each tool
post which is set by parameters in advance.
When the signal is 0, the interference check is not executed.
ITFC1-3 correspond to interference check #1-#3.
(
