7. SERVO INTERFACE

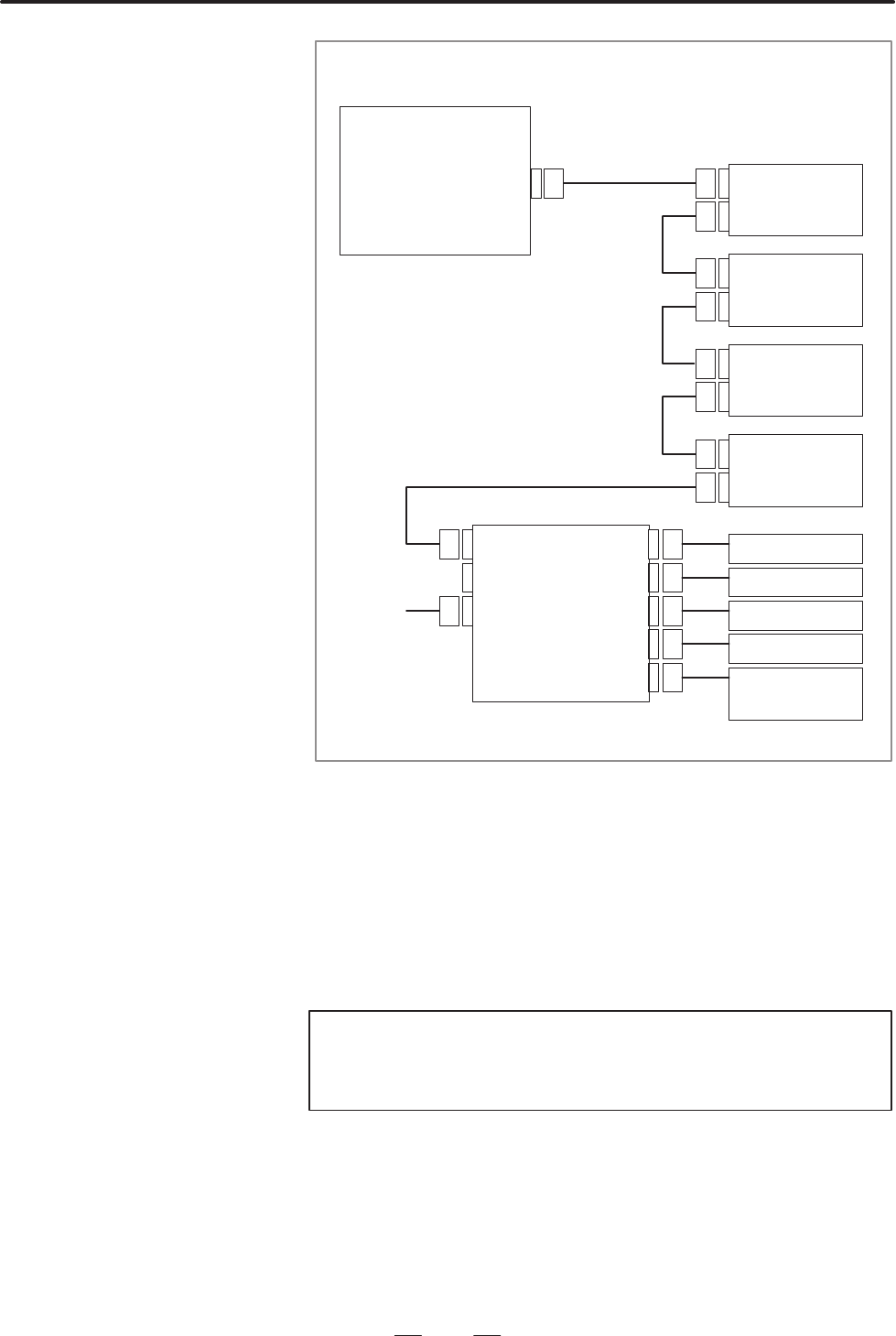

87
COP10B
COP10A
CP11A
DC24V
COP10A
COP10B
COP10A
COP10B
COP10A
COP10B
COP10A
JF101
JF102
JF103
JF104
JA4A
COP10B
COP10A
Control unit
Servo amplifier modules
Optical fiber cable
Separate detector interface unit
Linear scale, 1st axis
Linear scale, 2nd axis
Linear scale, 3rd axis
Linear scale, 4th axis
Battery for separate
absolute detector
Optical fiber cable
When a separate pulse coder or linear scale is used, a separate detector
interface unit, as shown above, is required. The separate detector
interface unit should be connected to the CNC control unit through an
optical fiber cable, as one of the units on the servo interface (FSSB).
Although the above figure shows the separate detector interface
connected in the final stage of the FSSB line, it can also be connected, at
the nearest location, to the CNC control unit. Or, it can be installed
between two servo amplifier modules.
NOTE
With the Series 21i/210i, separate detectors (serial
interface type) cannot be used.
